C - 12 en-938821/2

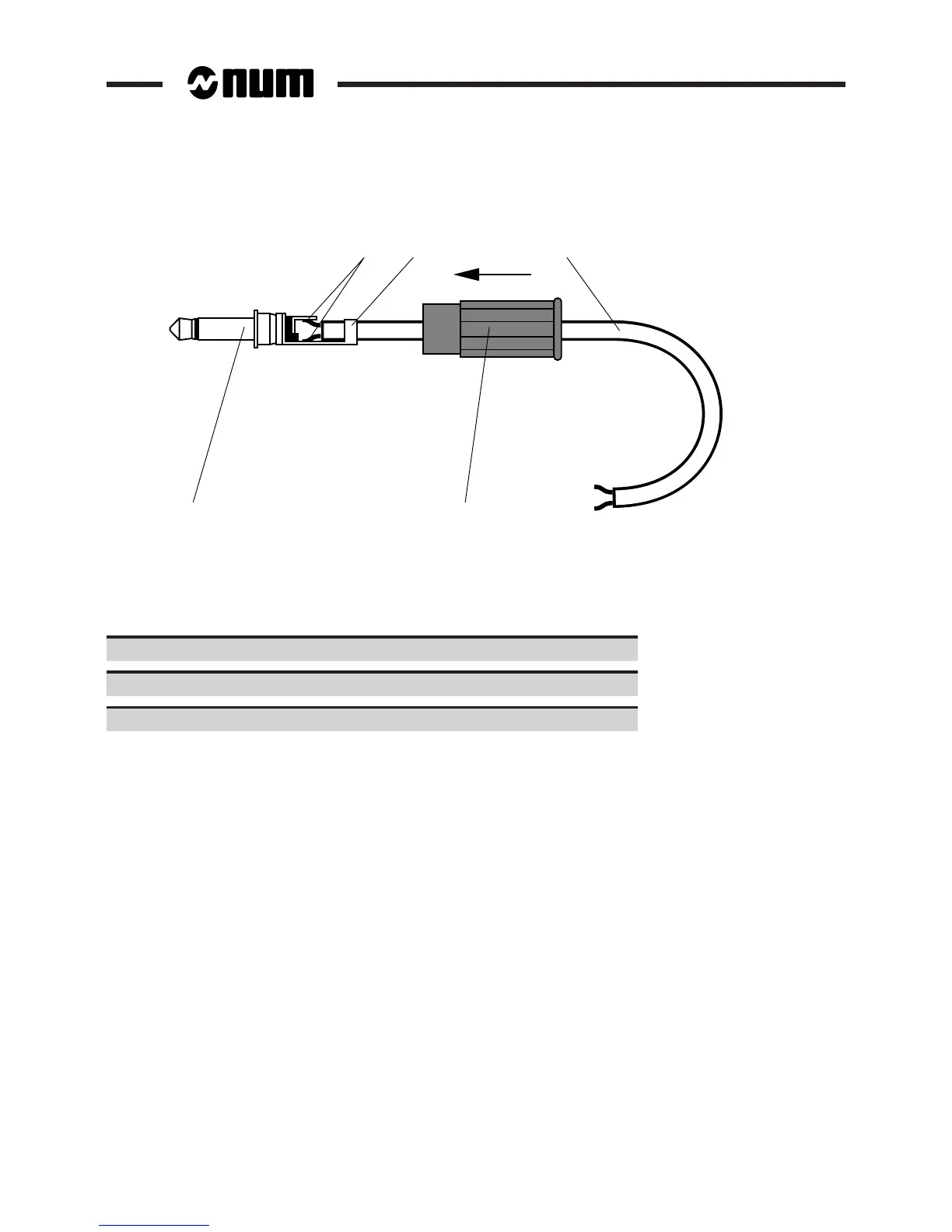

C.1.2.5 NUM Drive Power Cable
2
A B 1C
34
1 - 2-wire cable
2 - 24 VDC power supply (range 19.2 VDC-30 VDC), polarity unimportant
3 - Jack insulator
4 - Jack
Solder one wire to each of the conductors of the jack (A).
Fold the tabs onto the cable (B).
Push the insulator home against the collar of the connector (C).
REMARK The drive is not supplied by the jack when the remote serial line provides the power
supply.
