Nvidia BlueField-3 User Manual

41
2.
1.
2.
3.

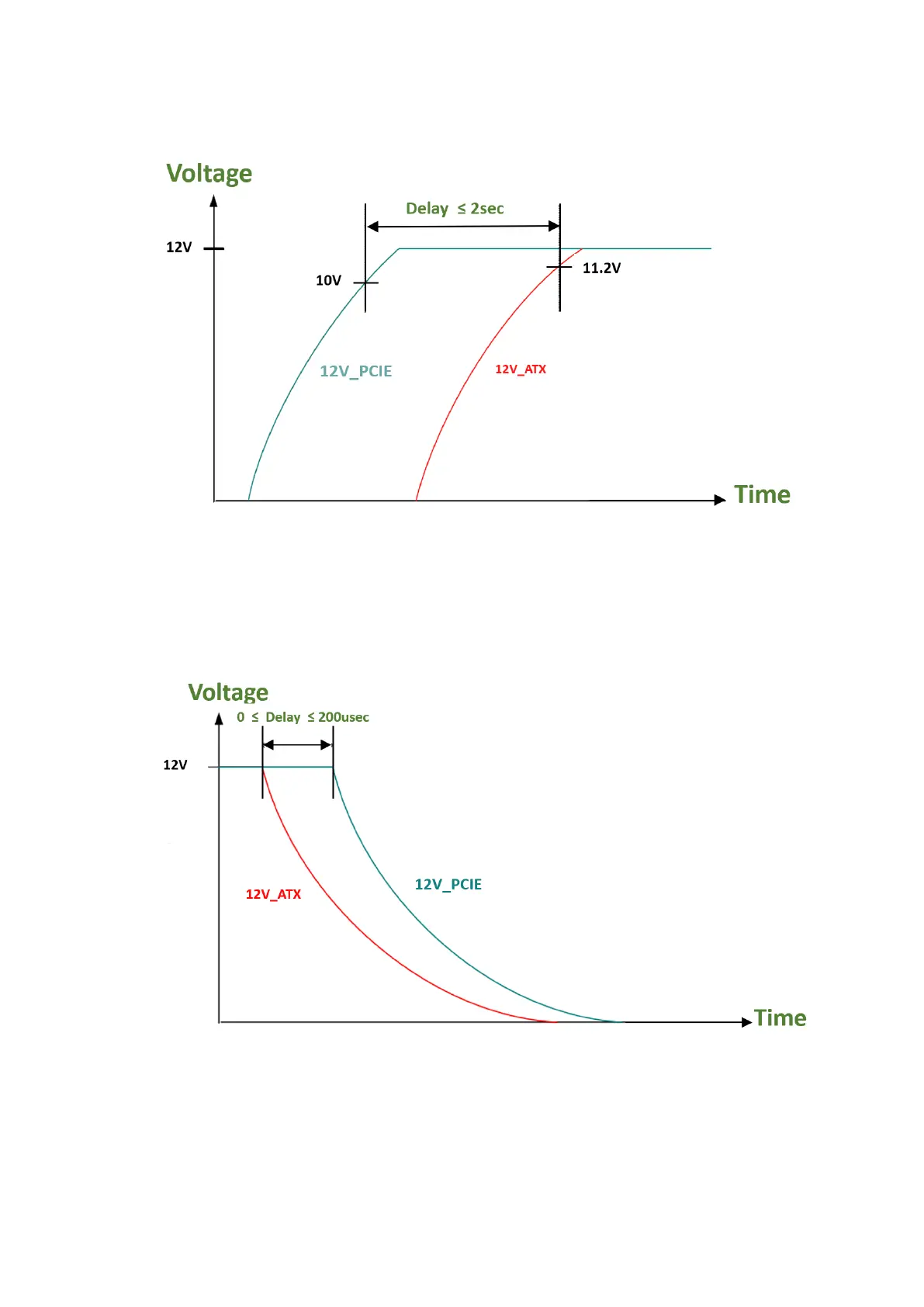

The 12V_ATX can be powered up after the 12V_PCIE, with a maximum delay of 2 seconds. The
below graph illustrates the delay between the 12V_ATX and 12V_PCIE voltages at power-up.
5.9.2 Power-Down Sequence
The 12V_PCIE voltage can be powered down simultaneously with the 12V_ATX voltage, or
within a maximum delay of 200usec. The below graph illustrates the delay between the
12V_ATX and 12V_PCIE voltages at power-down.
The 12V_PCIE voltage must not be powered down while the 12V_ATX voltage is powered up.

Nvidia BlueField-3 Specifications

General

Product Type	DPU (Data Processing Unit)
Power Consumption	Up to 75W
Manufacturing Process	7nm
Operating Temperature	0°C to 70°C
Virtualization	SR-IOV, Virtio
Target Applications	Cloud, Networking, Storage
Memory	Up to 16 GB DDR4
Memory Bandwidth	Up to 200 GB/s
Networking	Up to 400 GbE
PCIe	PCIe Gen4 x16
Storage Acceleration	NVMe over Fabrics (NVMe-oF)
Security	Hardware root of trust, Secure boot
Form Factor	PCIe Card
Acceleration Engines	Networking, Storage, Security
Software Support	NVIDIA DOCA
Cache	L1, L2, L3 caches
