Physical
PCIe Auxiliary Card Size: 5.09 in. x 2.32 in. (129.30mm x 59.00mm)
Two Cabline CA-II Plus harnesses (white and black) Length: 15, 25 or 35cm
Power
Consumption
Voltage: 12V, 3.3V_AUX
Maximum current:100mA for the 3.3V_AUX voltage rail
EMC: CE / FCC / VCCI / ICES / RCM / KC
RoHS: RoHS Compliant

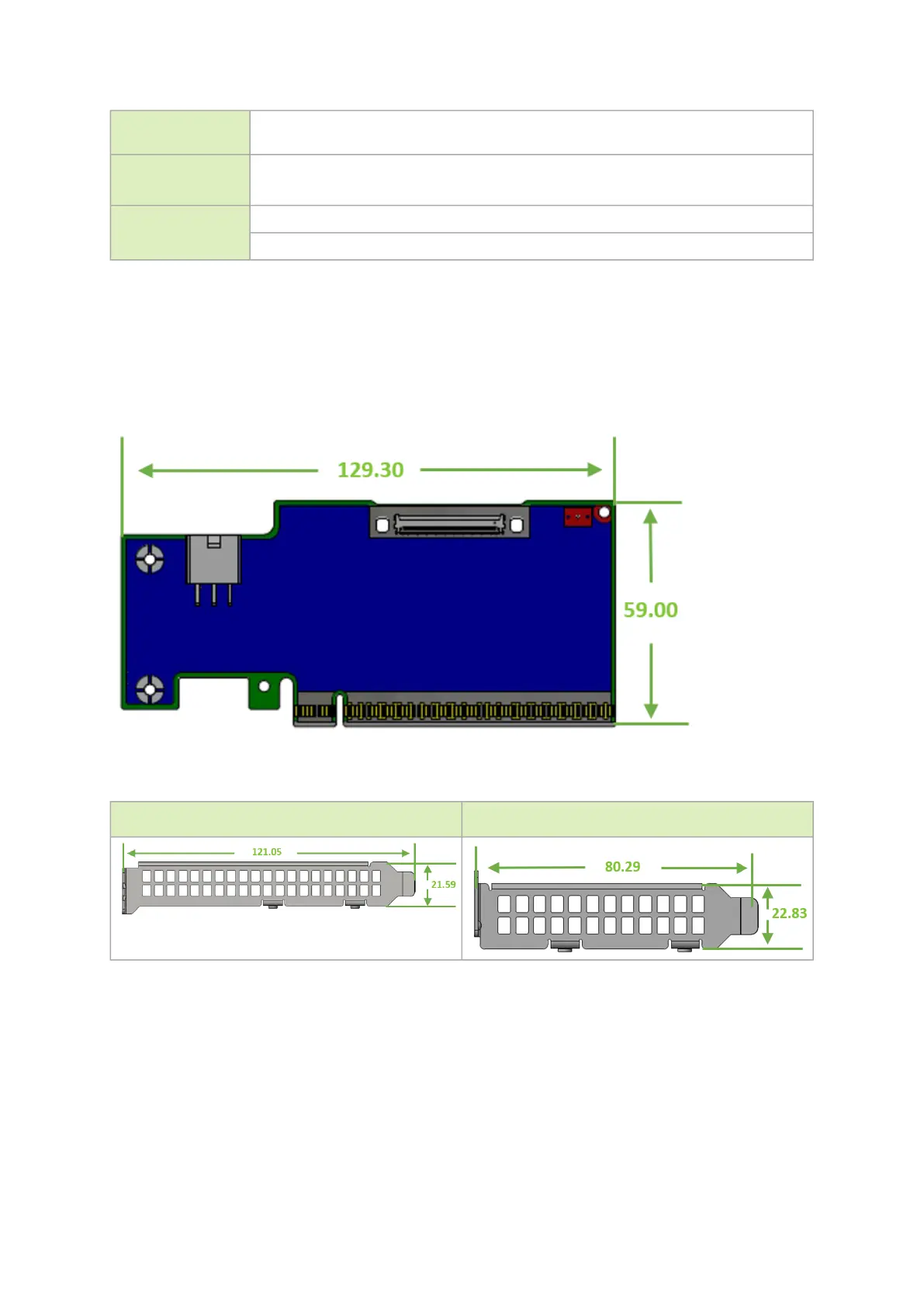

11.4.1 PCIe Auxiliary Card Mechanical Drawings and
Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
11.4.2 Bracket Mechanical Drawings and Dimensions
Auxiliary PCIe Connection Card Tall Bracket Auxiliary PCIe Connection Card Short Bracket
