Nvidia BlueField-3 User Manual

18
Ite
m
Interface Description
9 MMCX RA PPS
IN/OUT
Allows PPS IN/OUT
12 Integrated
BMC
DPU BMC
13 SSD Interface 128GB
14 RTC Battery Battery holder for RTC
15 eMMC x8 NAND flash

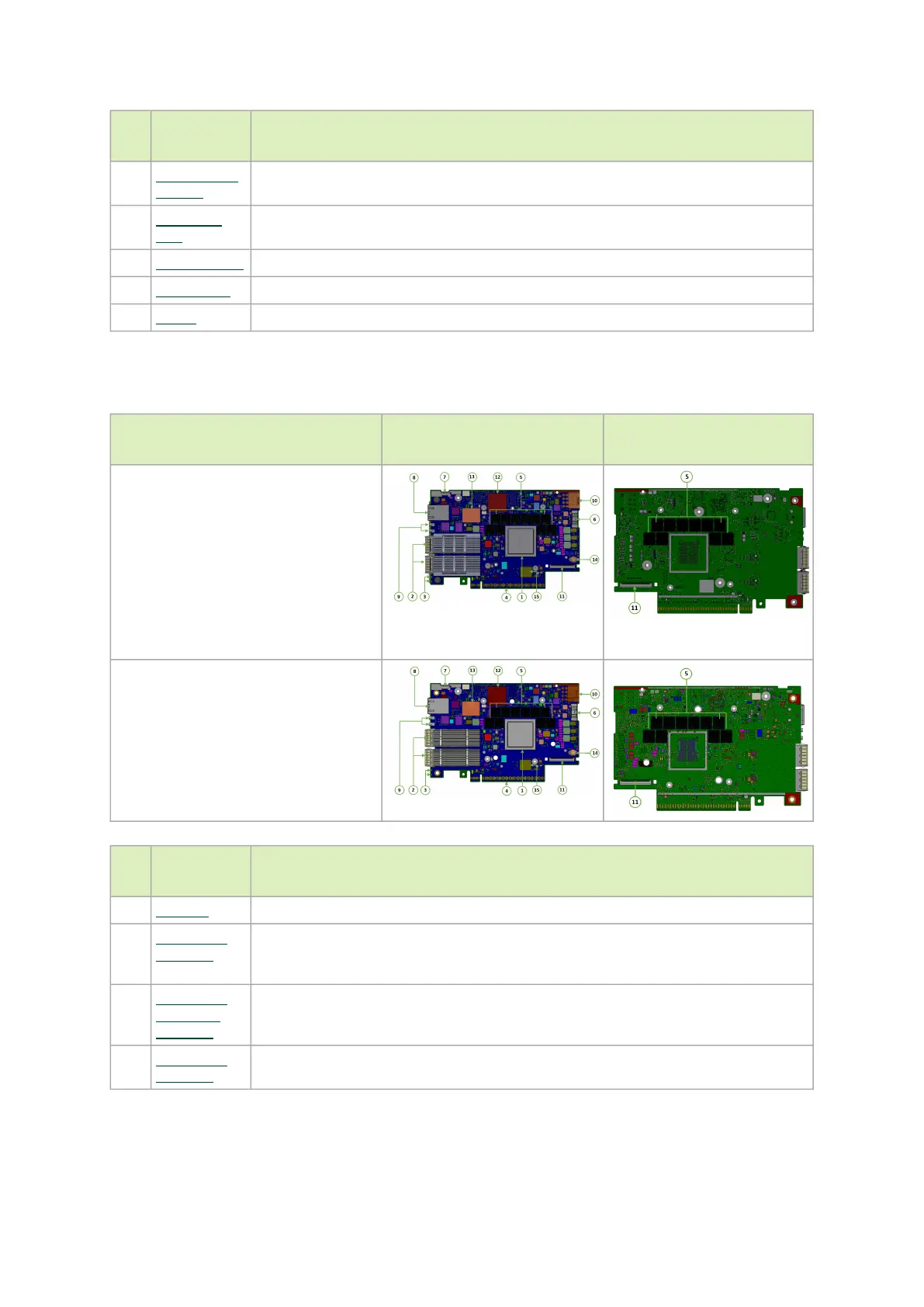

3.2 BlueField-3 DPUs Layout and Interface Information
OPN DPU Component Side DPU Print Side
FHHL Single-Slot Dual-Port DPUs
with PCIe Extension Option
Model: B3210E
900-9D3B6-00CC-EA0  
900-9D3B6-00SC-EA0  
Model: B3210
900-9D3B6-00CC-AA0
900-9D3B6-00SC-AA0
Model: B3220
900-9D3B6-00CV-AA0
900-9D3B6-00SV-AA0  
FHHL Dual-Slot Dual-Port DPUs
Model: B3240
900-9D3B6-00CN-AB0
900-9D3B6-00SN-AB0
Ite
m
Interface Description
1 DPU SoC DPU SoC 8/16 Arm-Cores
2 Networking
Interface
The network traffic is transmitted through the DPU QSFP112 connectors. The QSFP112
connectors allow the use of modules and optical and passive cable interconnect
solutions
3 Networking
Ports LEDs
Interface
One bi-color I/O LEDs per port to indicate link and physical status
4 PCI Express
Interface
PCIe Gen 5.0/4.0 through an x16 edge connector

Nvidia BlueField-3 Specifications

General

Product Type	DPU (Data Processing Unit)
Power Consumption	Up to 75W
Manufacturing Process	7nm
Operating Temperature	0°C to 70°C
Virtualization	SR-IOV, Virtio
Target Applications	Cloud, Networking, Storage
Memory	Up to 16 GB DDR4
Memory Bandwidth	Up to 200 GB/s
Networking	Up to 400 GbE
PCIe	PCIe Gen4 x16
Storage Acceleration	NVMe over Fabrics (NVMe-oF)
Security	Hardware root of trust, Secure boot
Form Factor	PCIe Card
Acceleration Engines	Networking, Storage, Security
Software Support	NVIDIA DOCA
Cache	L1, L2, L3 caches
