8.10 Bracket Mechanical Drawings

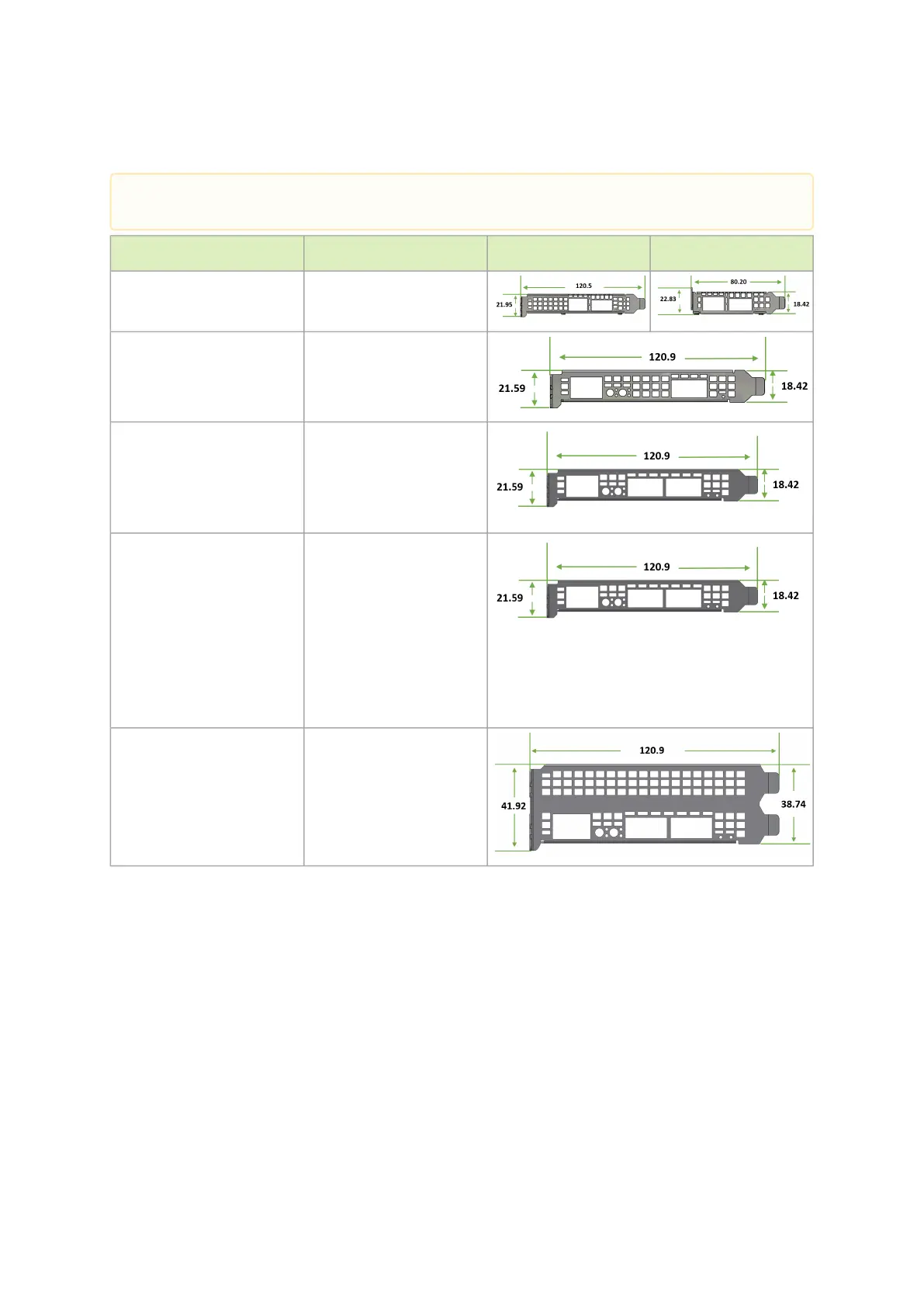

DPU Configuration Model/OPNs Tall Bracket Short Bracket
HHHL Single-Slot
Dual-Port SuperNICs
Model: B3140H
900-9D3D4-00EN-HA0
900-9D3D4-00NN-HA0
FHHL Single-Slot
Single-port SuperNICs
Model: B3140L
900-9D3B4-00EN-EA0
900-9D3B4-00PN-EA0
FHHL Single-Slot
Dual-Port SuperNICs
Model: B3210L
900-9D3B4-00CC-EA0
900-9D3B4-00SC-EA0
Model: B3220L
900-9D3B4-00CV-EA0
900-9D3B4-00SV-EA0
FHHL Single-Slot
Dual-Port DPUs
Model: B3220
900-9D3B6-00CV-AA0
900-9D3B6-00SV-AA0
Model: B3210
900-9D3B6-00CC-AA0
900-9D3B6-00SC-AA0
Model: B3210E
900-9D3B6-00CC-EA0  
900-9D3B6-00SC-EA0
FHHL Dual-Slot
Dual-port DPUs
Model: B3240
900-9D3B6-00CN-AB0
900-9D3B6-00SN-AB0
All dimensions are in millimeters.
