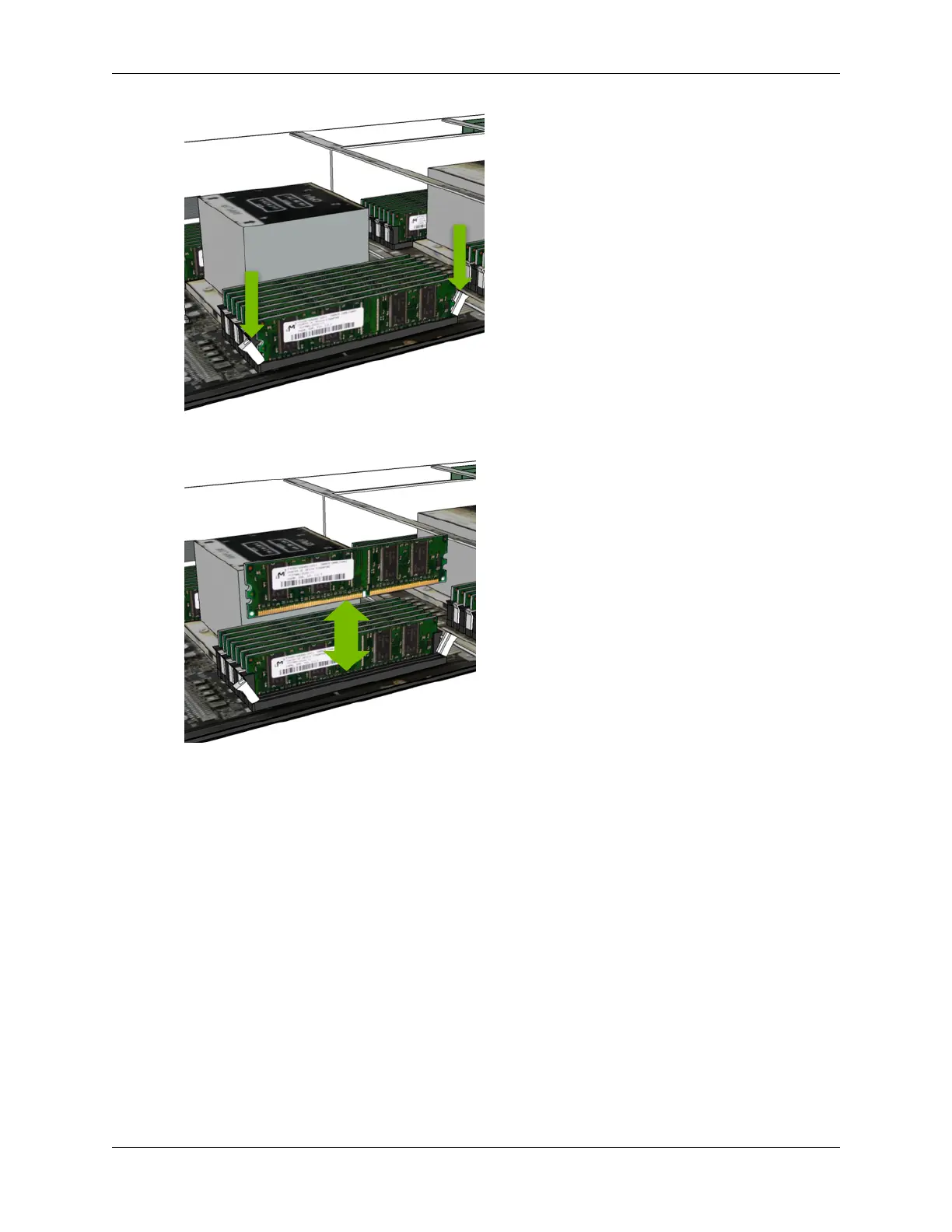

2. Pull the DIMM straight up to remove it from the socket.
6. Carefully insert the replacement DIMM.
1. Make sure the socket latches are open.
2. Position the DIMM over the socket, making sure that the notch on the DIMM lines up with
the key in the slot, then press the DIMM down into the socket until the side latches click in
place.
3. Make sure that the latches are up and locked in place.
54 Chapter 12. DIMM Replacement

Nvidia DGX A100 Specifications

General

GPU	8 x NVIDIA A100 Tensor Core GPUs
System Memory	1 TB DDR4
Storage	15 TB NVMe SSD
GPU Memory	320 GB total (40 GB per GPU)
CPU	2 x 64-Core AMD EPYC 7742
Networking	8 x 200 Gb/s InfiniBand or Ethernet
Interconnect	NVIDIA NVLink
