Nvidia Jetson Orin NX User Manual

USB and PCIe
PRELIMINARY INFORMATION
NVIDIA Jetson Orin NX DG-10931-001_v0.1 | 27

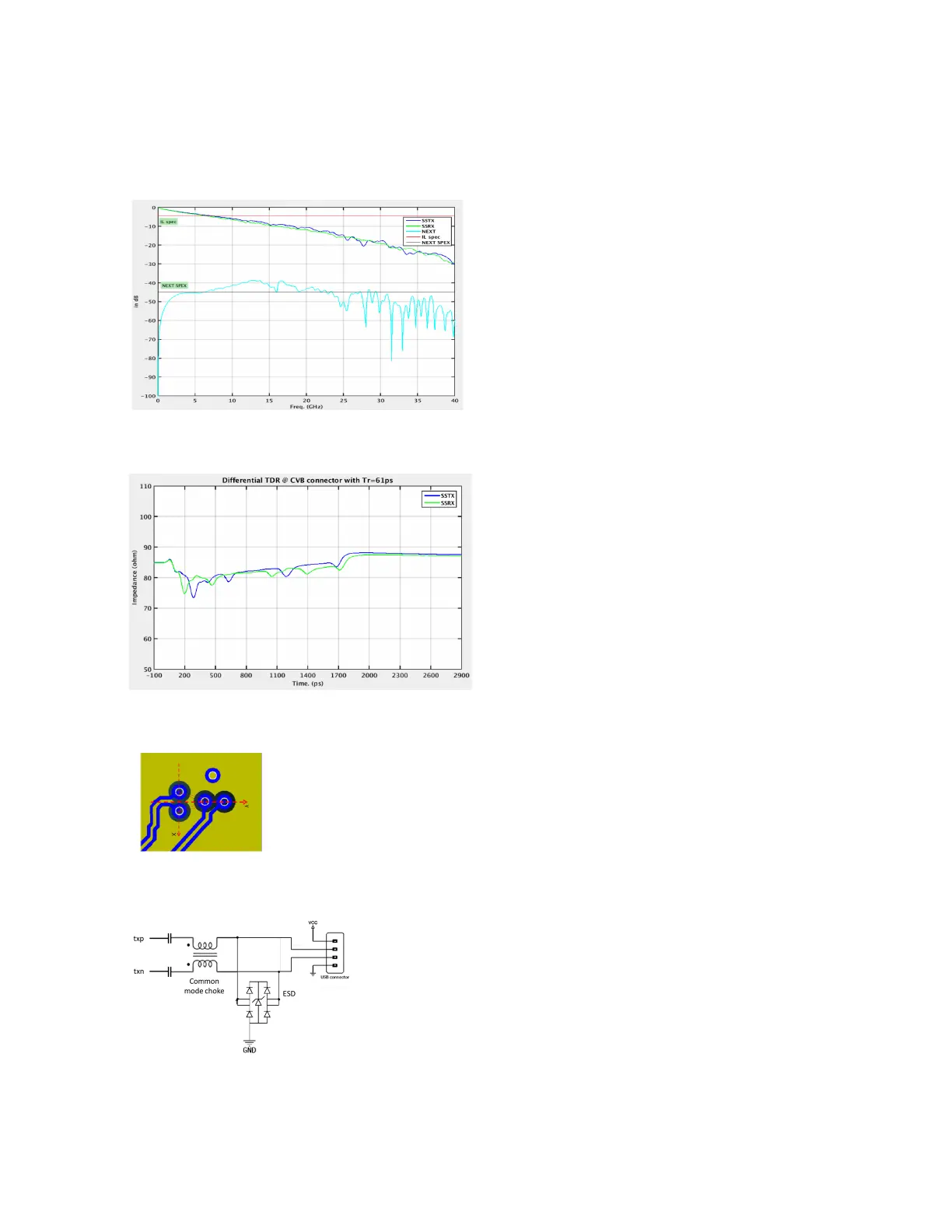

The following figures show the USB 3.2. Interface signal routing requirements.
Figure 7-3. IL/NEXT Plot
Figure 7-4. TDR Plot
Figure 7-5. Via Topology
Figure 7-6. Component Order

Nvidia Jetson Orin NX Specifications

General

GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU	6-core ARM Cortex-A78AE v8.2 64-bit CPU
Memory	8GB 128-bit LPDDR5
Storage	16GB eMMC 5.1
AI Performance	70 TOPS (INT8)
Camera	Up to 6 cameras
Connectivity	Gigabit Ethernet
I/O	GPIO, I2C, SPI, UART
Video Decode	32x 1080p60 | 64x 1080p30
Dimensions	69.6mm x 45mm (module)
