Chapter 8. Gigabit Ethernet
Jetson Orin NX integrates a Gigabit Ethernet PHY. The magnetics and RJ45 connector are
implemented on the carrier board.
Table 8-1. Jetson Orin NX Gigabit Ethernet Pin Descriptions
Pin #
Module Pin
Name
Orin Signal Usage and Description
Recommended
Usage
Direction Pin Type
194 GBE_LED_ACT − Ethernet Activity LED (Yellow)
LAN
Output
188
GBE_LED_LIN
K
−
Ethernet Link LED (Green)
Output
184 GBE_MDI0_N −
GbE Transformer Data 0
Bidir MDI
186 GBE_MDI0_P −
190 GBE_MDI1_N −
GbE Transformer Data 1
192 GBE_MDI1_P −
196 GBE_MDI2_N −
GbE Transformer Data 2
198 GBE_MDI2_P −
202 GBE_MDI3_N −
GbE Transformer Data 3
204 GBE_MDI3_P −
Notes: In the Direction column, Output is from Jetson Orin NX. Input is to Jetson Orin NX. Bidir is for Bidirectional signals.

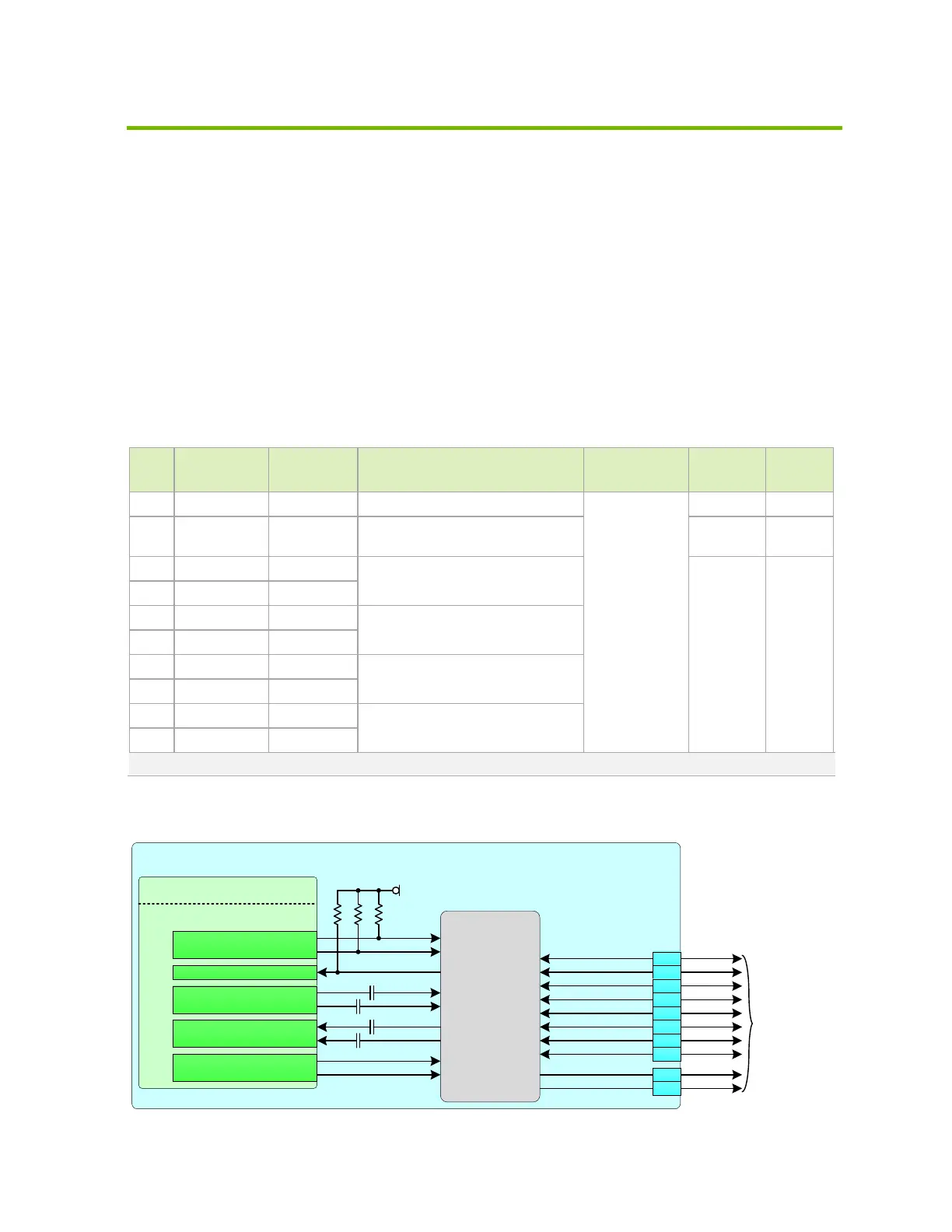

Figure 8-1. Jetson Orin NX Ethernet Connections
Jetson
SoC
GBE_MDI0_P
GBE_MDI0_N
GBE_MDI1_P
GBE_MDI1_N
GBE_MDI2_P
GBE_MDI2_N
GBE_MDI3_P
GBE_MDI3_N
GBE_LED_ACT
GBE_LED_LINK
To M agnetics/
RJ45 Connector
186
184
192
190
198
196
204
202
194
188
UPHY2
GbE
PHY
SF_PCIE8_CLK_N
SF_PCIE8_CLK_P
HS_UPHY 2_L3_RX_N
HS_UPHY 2_L3_RX_P
HS_UPHY 2_L3_T X_ N
HS_UPHY 2_L3_T X_ P
GP189_PCIE8_CLKREQ_N
GP190_PCIE8_RST_N
3.3V
4.7kΩ
47kΩ
GP185_PCIE_WAKE_N
47kΩ

Nvidia Jetson Orin NX Specifications

General

GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU	6-core ARM Cortex-A78AE v8.2 64-bit CPU
Memory	8GB 128-bit LPDDR5
Storage	16GB eMMC 5.1
AI Performance	70 TOPS (INT8)
Camera	Up to 6 cameras
Connectivity	Gigabit Ethernet
I/O	GPIO, I2C, SPI, UART
Video Decode	32x 1080p60 | 64x 1080p30
Dimensions	69.6mm x 45mm (module)
