Clock tool example use case: Configure eMIOS to 60 MHz PLL1 with MPC5777C_264MHz
MPC5777C Clock Calculator Guide, Rev. 1, 12/2018
28 NXP Semiconductors

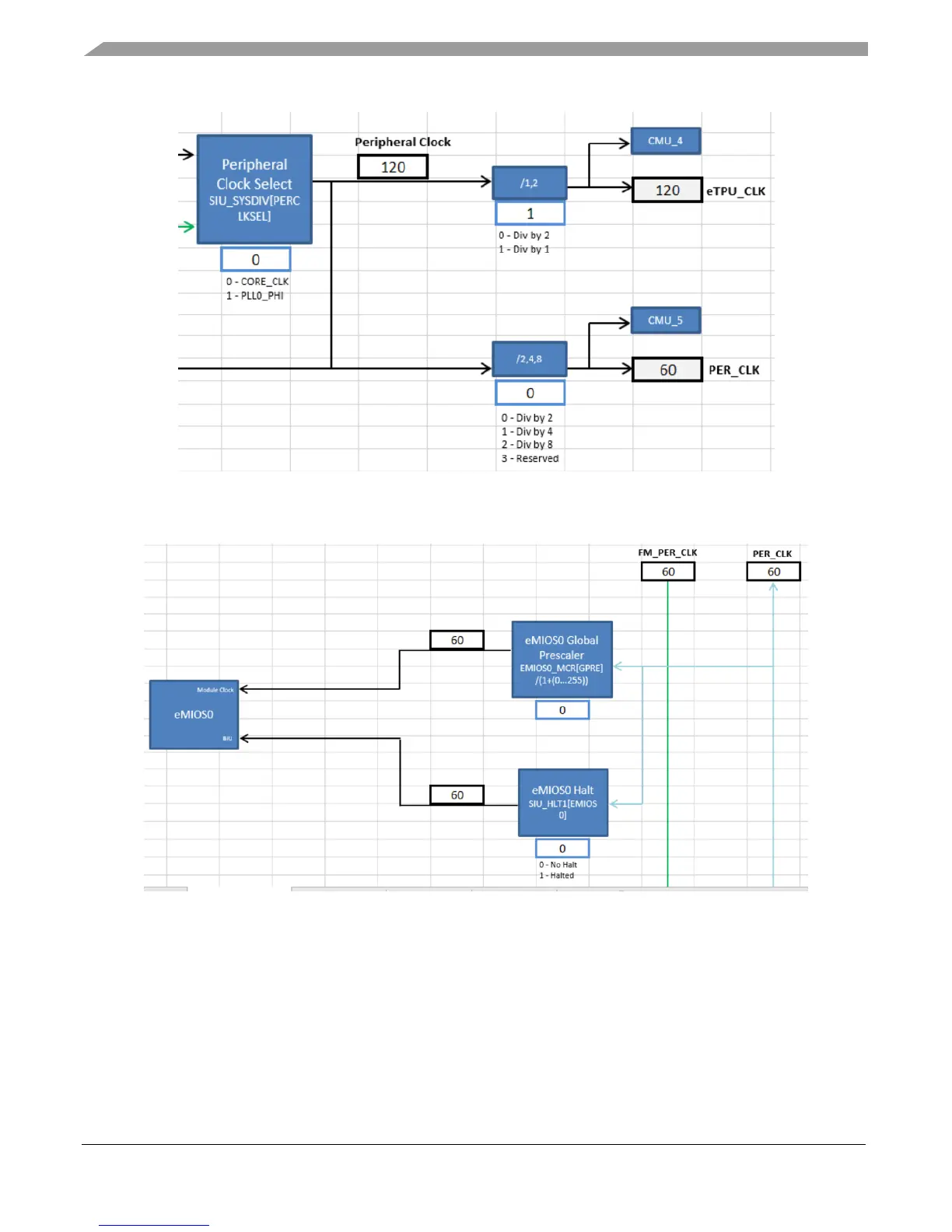

Figure 39. PER_CLK at 60 MHz
Return to the Peripheral Domains tab to verify that eMIOS0 is running at 60 MHz.
Figure 40. eMIOS at 60 MHz
Note that if a clock domain exceeds its hardware spec, the corresponding box will be shaded in red. As
shown in the following figure, the max SD_CLK frequency is 16 MHz. Since 120 MHz, exceeds its
limit, its cell is shaded red.
