OCULUS Pentacam Interpretation Guide

156
22 Phakic IOL implantation
Since the patient was only 22 years old, we wanted to check the pIOL position as to be on the
safe side. We checked the predicted pIOL position at 40 years after surgery (Figure 182). Here the
simulated minimum clearance is 1 mm.
Conclusion:
The amount of endothelium cells was in the normal range. The patient was young and her refraction
could be expected to remain stable over the next year. The minimum clearance of 1.63 mm between
pIOL and endothelium was large enough. The aging prediction showed 1.32 mm clearance after 20
years, which was sufficient.

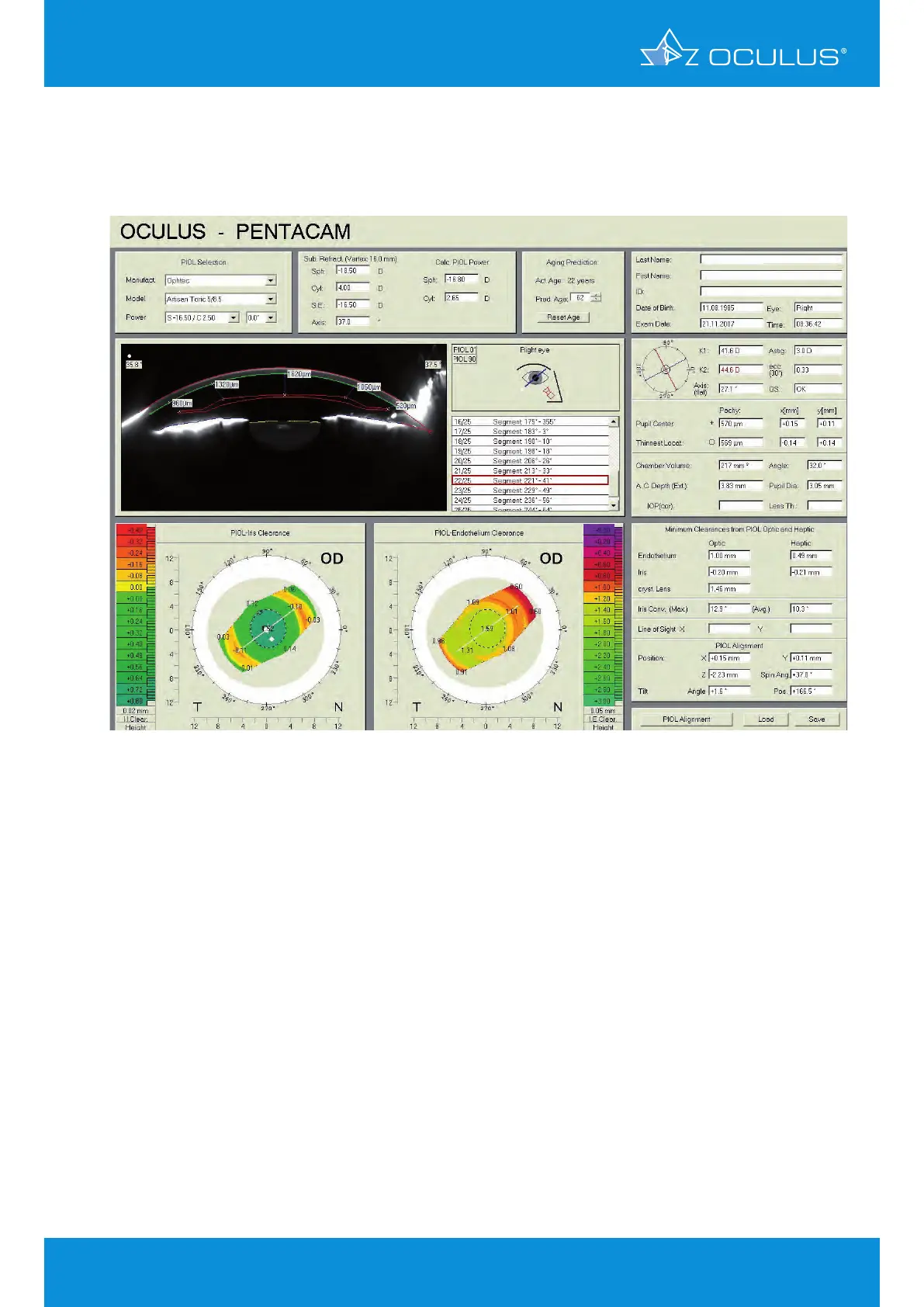

Figure 182: 3D pIOL Simulation and Aging Prediction at 40 years after implantation

OCULUS Pentacam Specifications

General

Measurement Time	Less than 2 seconds
Corneal Coverage	Up to 12 mm
Software	Pentacam Software
Data Transfer	USB
Corneal Topography	Yes
Display	External monitor required
Measurement Principle	Scheimpflug imaging
Camera	Rotating Scheimpflug camera
Light Source	Blue LED
Pachymetry	Yes
Anterior Chamber Analysis	Yes
Imaging Principle	Scheimpflug imaging
Fixation	Internal
Power Supply	100-240 V, 50/60 Hz
Resolution	High resolution
Lens Density Measurement	Yes
Dimensions	Varies depending on model and configuration
Weight	Varies by model, check manufacturer specifications
Number of Images	25 or 50
