OCULUS Pentacam Interpretation Guide

123
17 Holladay Report & Holladay EKR65
Detail Report
by Jack T. Holladay, MD
17.1 Holladay Report
The Holladay Report was developed together with Jack T. Holladay, MD. The aim was:
 to improve the calculation of IOL for patients who have undergone previous corneal surgery
 to design a display which contains all of the necessary information for screening & treating
patients
The proper settings for the Holladay Report are automatically set correctly by default. The settings
may be viewed by clicking “Settings” on the tool bar of the Holladay Report and then the color bar
settings as shown below in Figure 153.

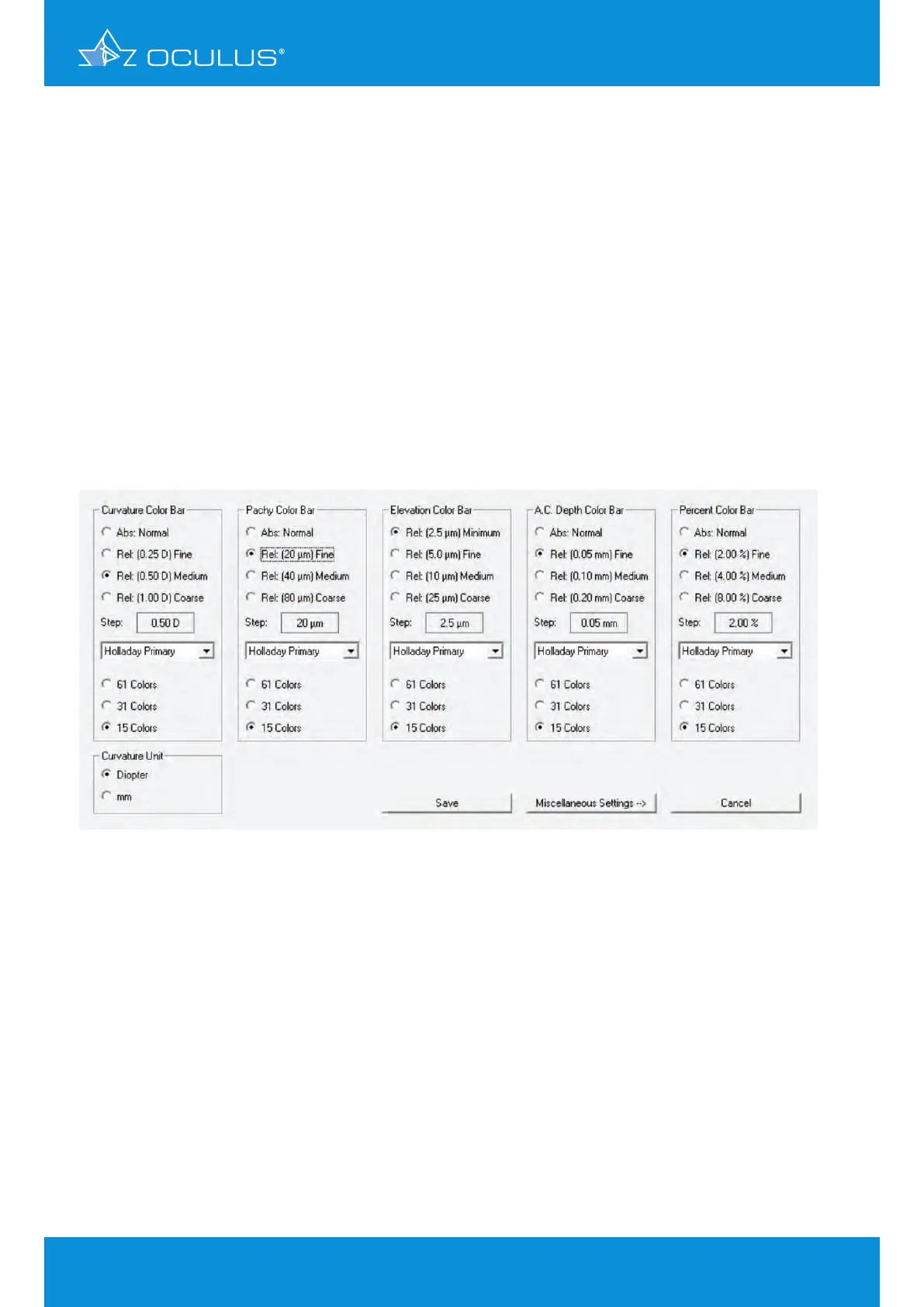

Figure 153: Main color bar settings menu
17 Holladay Report & Holladay EKR65 Detail Report

OCULUS Pentacam Specifications

General

Measurement Time	Less than 2 seconds
Corneal Coverage	Up to 12 mm
Software	Pentacam Software
Data Transfer	USB
Corneal Topography	Yes
Display	External monitor required
Measurement Principle	Scheimpflug imaging
Camera	Rotating Scheimpflug camera
Light Source	Blue LED
Pachymetry	Yes
Anterior Chamber Analysis	Yes
Imaging Principle	Scheimpflug imaging
Fixation	Internal
Power Supply	100-240 V, 50/60 Hz
Resolution	High resolution
Lens Density Measurement	Yes
Dimensions	Varies depending on model and configuration
Weight	Varies by model, check manufacturer specifications
Number of Images	25 or 50
