10.10 Asymmetric keratoconus
This is a 4 Maps Selectable display (Figure 70) of a normal astigmatic eye (OD) with a thin cornea
(thinnest reading 483 μm) and a noteworthy abnormality in the pachymetry distribution with a
significant inferior-temporal displacement of the thinnest zone. At times the only indicator of
potential pathology may be the magnitude and distribution of the corneal pachymetry.
DIAGNOSIS - asymmetric keratoconus greater in OS than OD

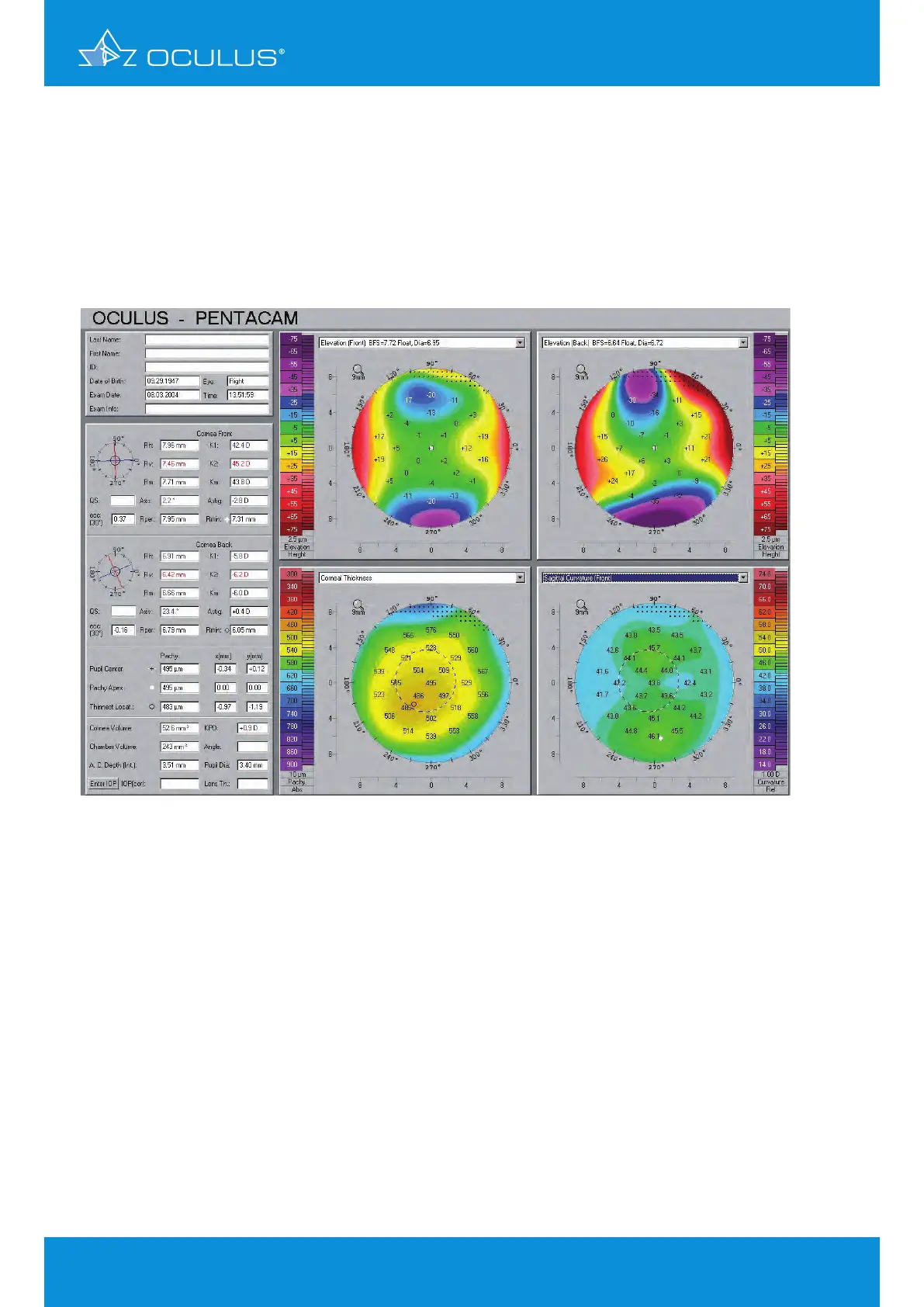

Figure 70: 4 Maps Selectable showing an asymmetric cornea of normal topography in OD
10 Screening for refractive surgery

OCULUS Pentacam Specifications

General

Measurement Time	Less than 2 seconds
Corneal Coverage	Up to 12 mm
Software	Pentacam Software
Data Transfer	USB
Corneal Topography	Yes
Display	External monitor required
Measurement Principle	Scheimpflug imaging
Camera	Rotating Scheimpflug camera
Light Source	Blue LED
Pachymetry	Yes
Anterior Chamber Analysis	Yes
Imaging Principle	Scheimpflug imaging
Fixation	Internal
Power Supply	100-240 V, 50/60 Hz
Resolution	High resolution
Lens Density Measurement	Yes
Dimensions	Varies depending on model and configuration
Weight	Varies by model, check manufacturer specifications
Number of Images	25 or 50
