Oki B6200 Series Setup Guide

INSTALLATION AND RELOCATION PROCEDURE > 21
INSTALLING THE DUPLEX UNIT
You can install a duplex unit option on this printer. If a face up tray has
been fitted, remove it by reversing the steps in “Installing the Face Up
(Rear) Tray” on page 14 before installing the duplex unit and refit it when
the duplex unit has been installed.

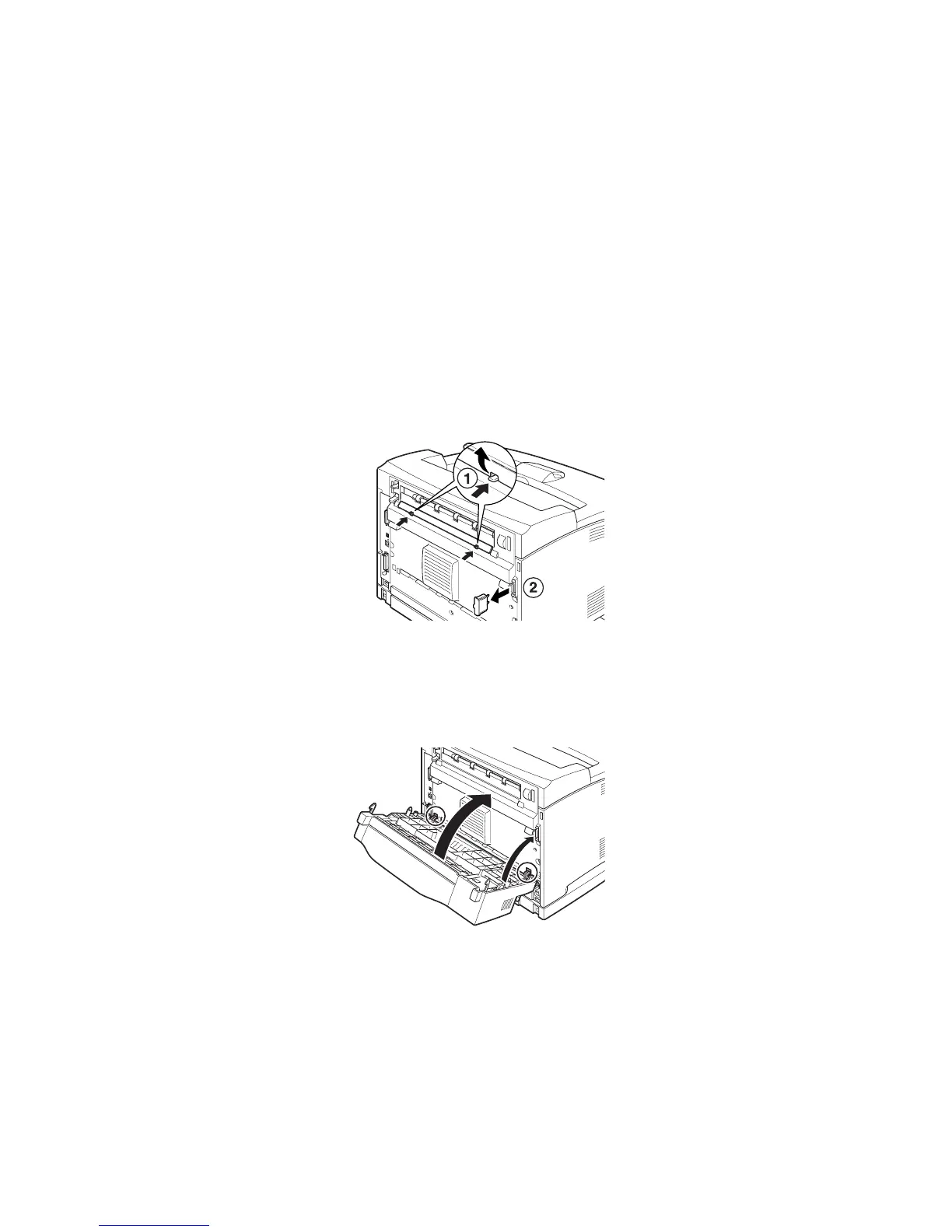

1. Remove the duplex unit cover by pushing the two tabs as shown
in the diagram (1).
Next, remove the connector cap at the top right of the back of the
printer (2).
2. Insert the right and left tabs at the bottom of the duplex unit into
the holes at the back of the printer, and then align the top part of
the duplex unit with the printer.
Ensure that the connector of the duplex unit is connected to the
connector of the printer.

Oki B6200 Series Specifications

General

Resolution	1200 x 1200 dpi
Processor	200 MHz
Connectivity	USB 2.0, Parallel
Memory	32 MB (expandable to 288 MB)
Operating Systems Supported	Windows
Print Technology	LED
