Oki B6200 Series Setup Guide

26 > INSTALLATION AND RELOCATION PROCEDURE
INSTALLING A NETWORK SOFTWARE KIT, HARD
DISK, COMPACT FLASH DISK, OR ADDITIONAL
MEMORY
The same steps are required at the beginning and at the end of each
installation to prepare the printer and to close it. These steps are described
here.
Preparing the printer

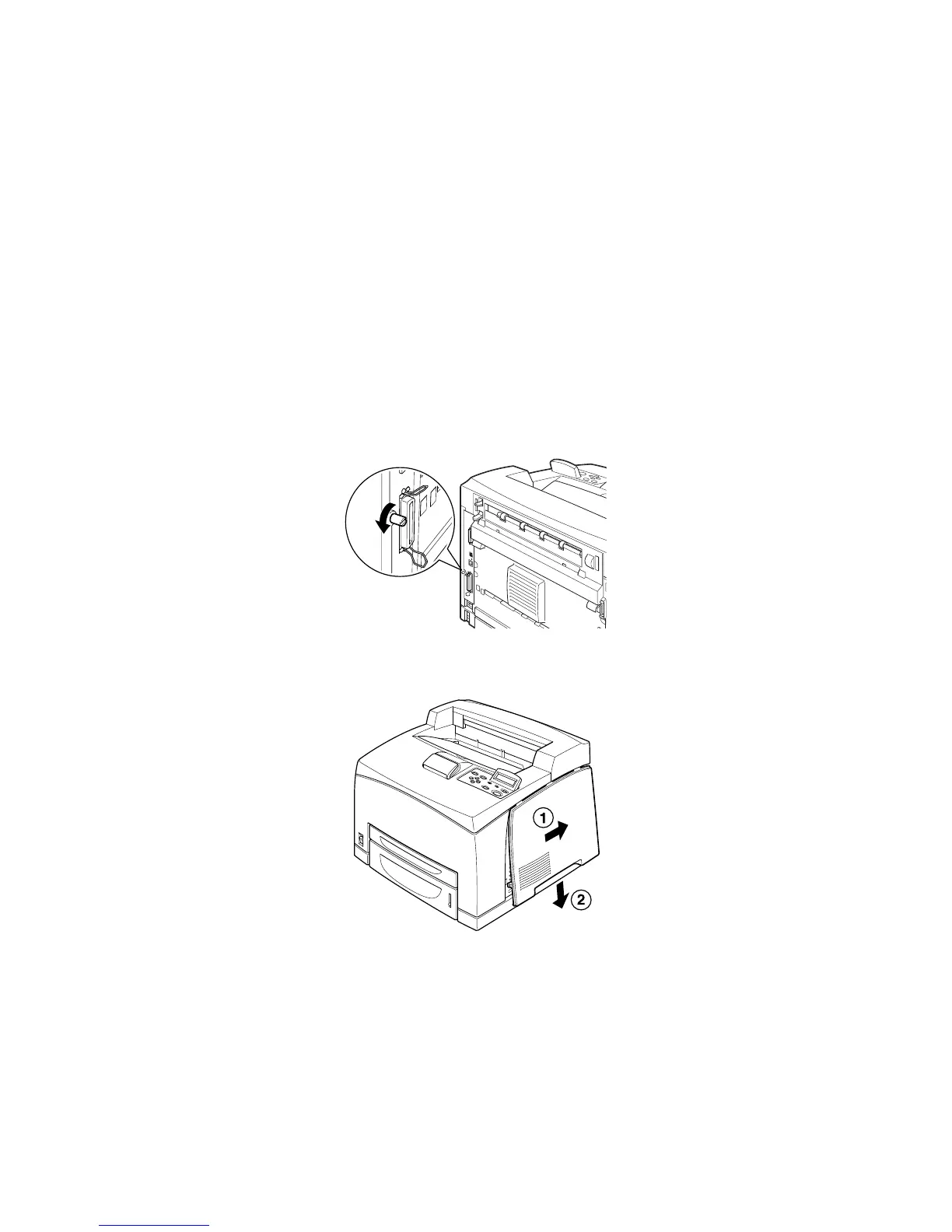

1. Remove the screw on the right detachable cover.
2. Slide the cover towards the back of the printer (1) to release the
protrusions at the bottom and pull it downwards (2).

Oki B6200 Series Specifications

General

Resolution	1200 x 1200 dpi
Processor	200 MHz
Connectivity	USB 2.0, Parallel
Memory	32 MB (expandable to 288 MB)
Operating Systems Supported	Windows
Print Technology	LED
