4. Component replacement
Cover-Sensor-C.Regist
EM-30L Class A
Spread a small amount of MOLYKOTE
(EM-30L) on the patching parts.
(Total 8 places on both sides)
Plate-Sensor-C.Regist
Gear Assy.-Shutter
Do not touch the surface of Cover-Sensor-C.Regist
with MOLYKOTE.
Sensor Assy. -Color Regist Roller-Assy. -Idle(FD)
Do not touch this area with grease.
Grease spreading method

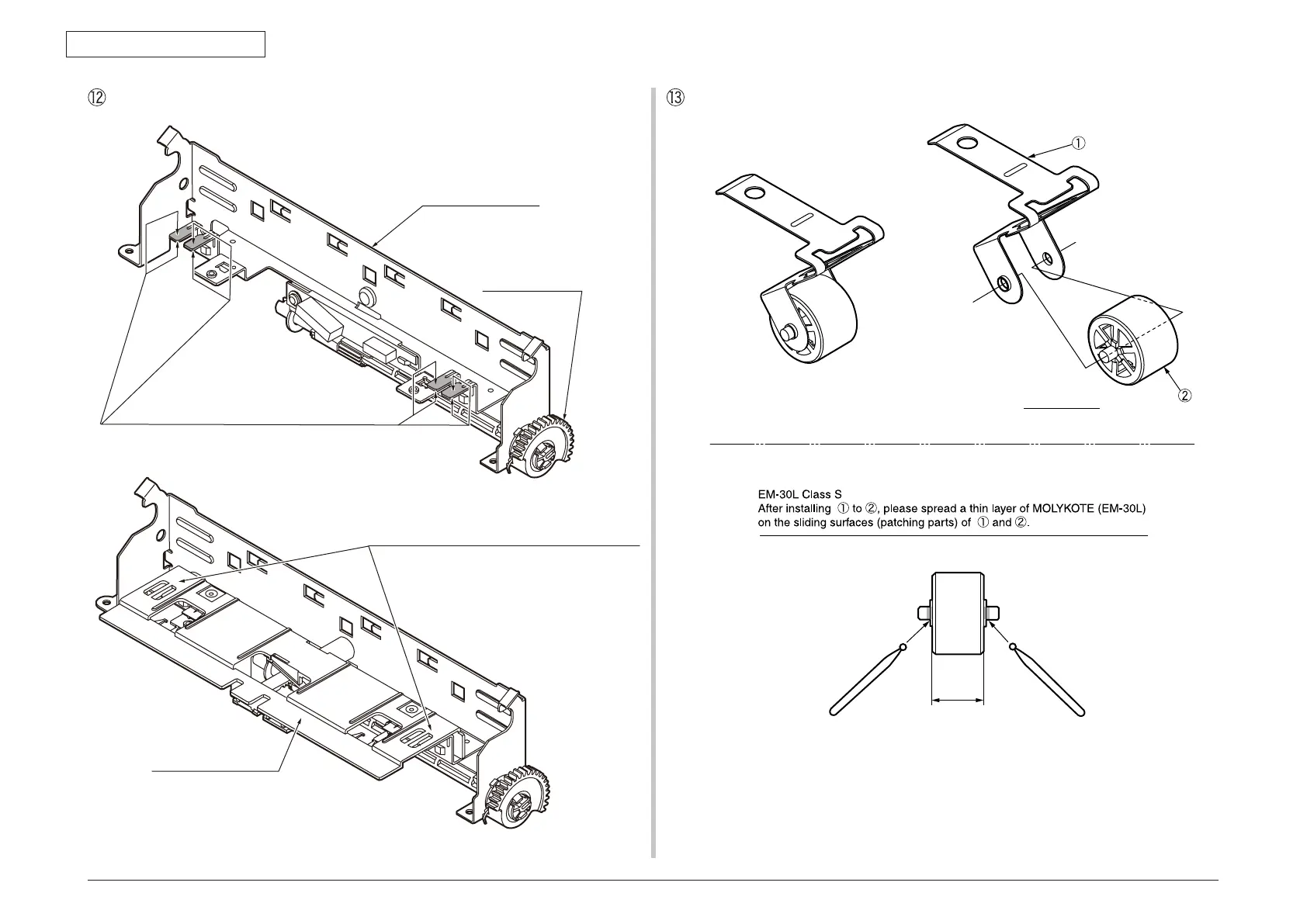

Exploded view
