Chapter 1: Assembling and setting up
1-5
Fitting the paper
support

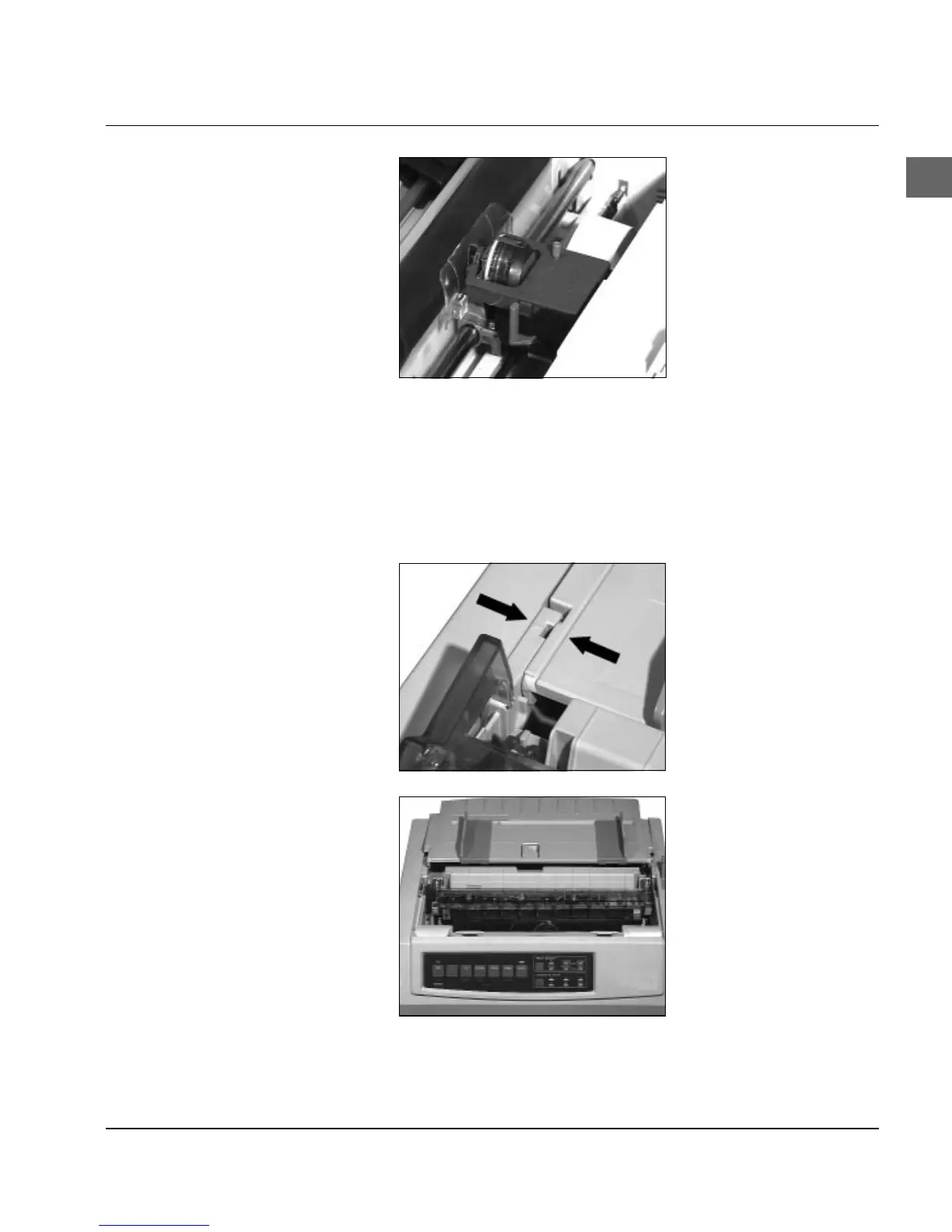

Tilt down the cassette and tension
ribbon
▲
▲
4. Tilt the cassette carefully
down over the print head
until you feel it click into
place.
5. Turn the blue transport knob
of the cassette in the direc-
tion of the arrow to tension
the ribbon.
6. Close the cover of the print-
er.
The paper support
The paper support with its guide rails enables the paper to be fed
precisely into the printer.
1. Hold the support horizontal-
ly with the pegs on the sup-
port precisely aligned with
the cutouts ( / ) in the case
of the printer.
2. Press the support down-
wards on both sides until
you feel it click into position.
