Chapter 3: Paper handling
3-2
Print head lever
BOT
TOP
REAR
Paper lever

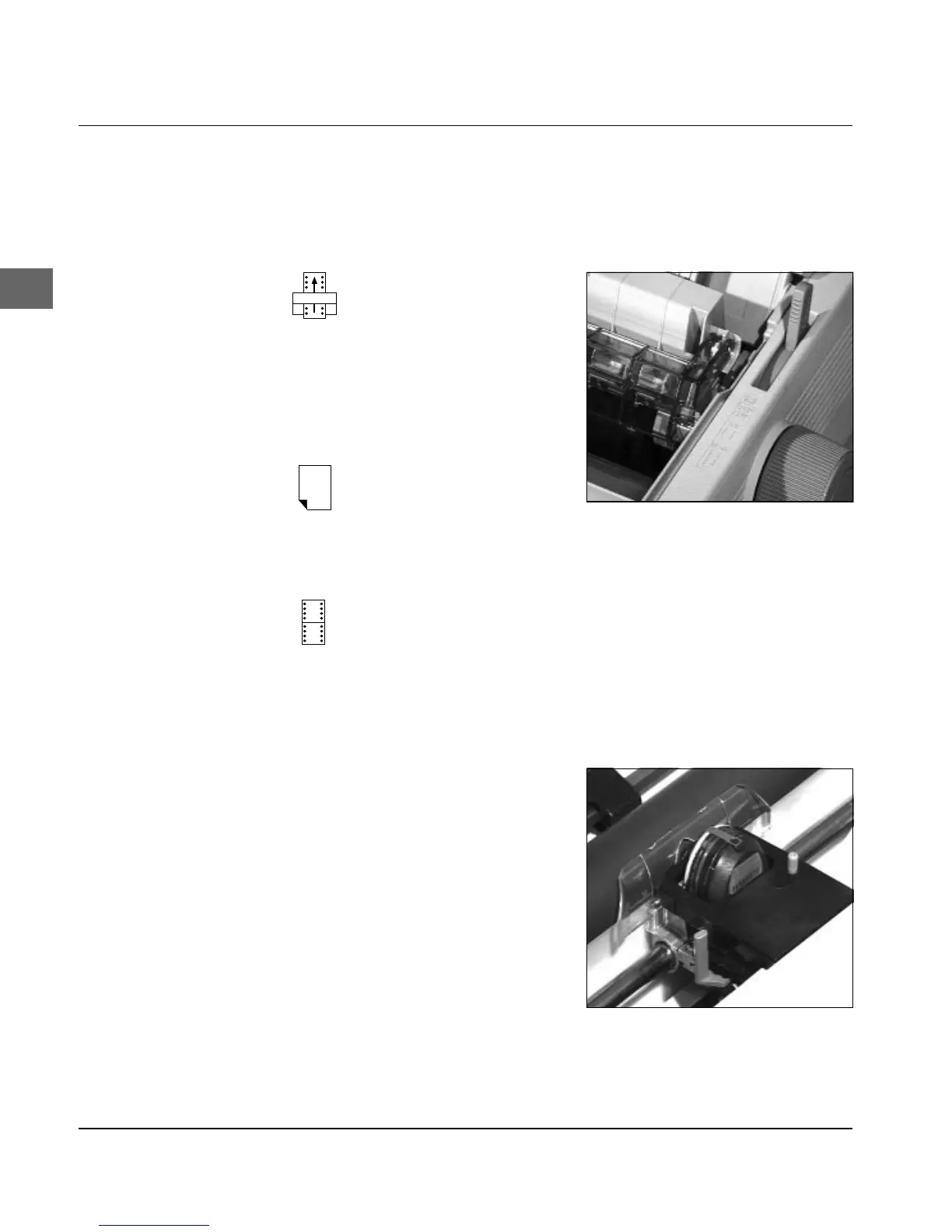

Move the paper lever on the right side of the printer to the position
that is appropriate to the feed path for the paper.
Continuous paper feed-
ing: for continuous pa-
per which is fed via the
bottom or pull tractor
feed, the lever must be
in the BOT (bottom) po-
sition.
Cut sheet feeding: for
feeding cut sheets via ei-
ther the paper support
or the cut sheet feeder,
the lever must be in the TOP position.
Continuous paper feeding: if continuous paper is being fed
from the back via the push or pull tractor feed, move the
lever to REAR.
Adjusting for the paper thickness
The gap between the print head
and platen is adjusted to the pa-
per thickness or multi-part pa-
per by means of the blue, five-
position print head lever on the
left side of the ribbon drive.
