Service Guide ML520/521
Chapter 3 Maintenance & Disassembly

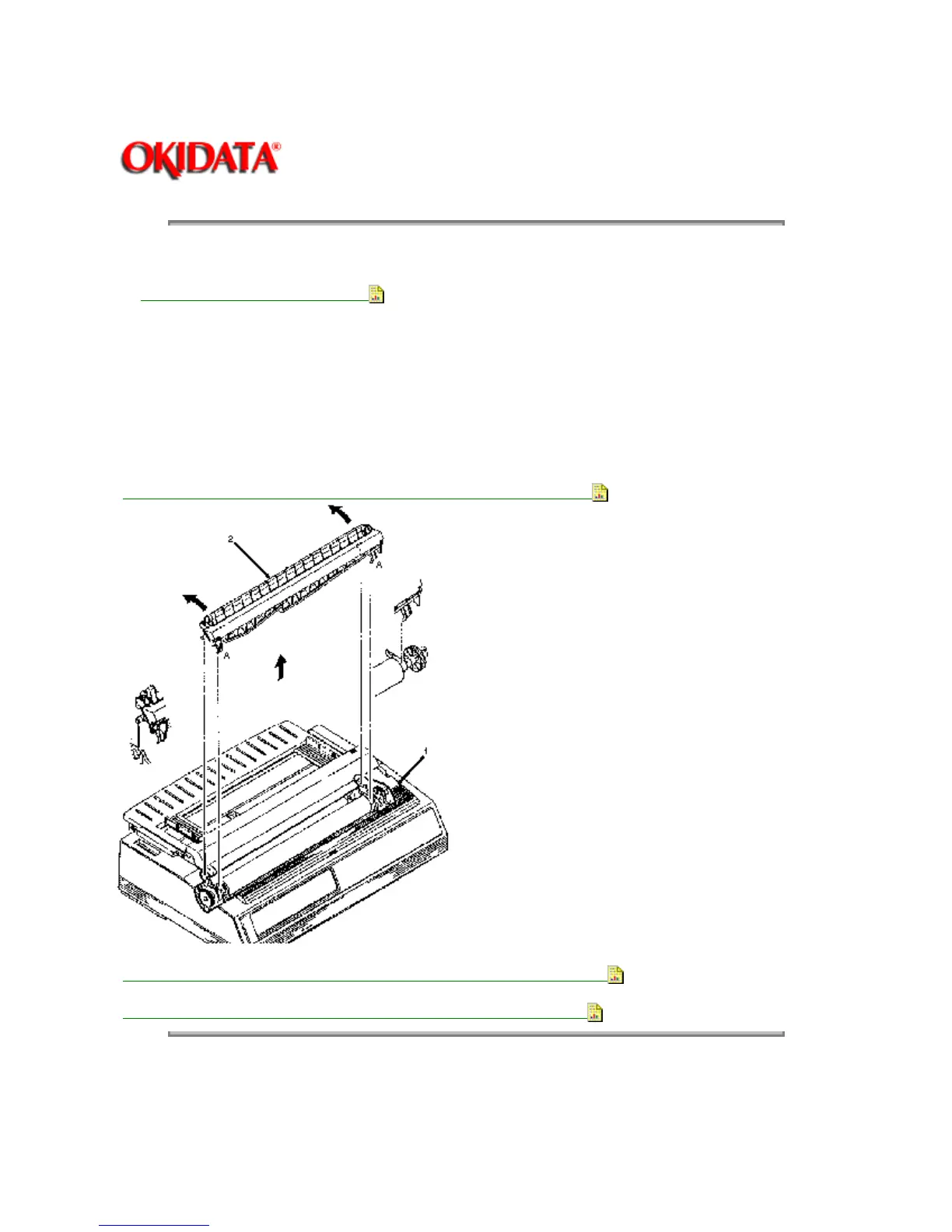

3.2.05 Pull-up Roller Assembly
1.
Perform this procedure: 3.2.01.
2. Open the access cover (1).
3. Open the cover of the pull-up roller assembly (2).
4. Press at A while rotating the assembly towards the back of the printer.
5. Remove the assembly.
NOTE: Lubrication
When lubricating, refer to Section 3.5 of this Service Handbook.
P/N 53341501 Roller: Pull Up Assembly (Narrow) RSPL 520 B.2.05
P/N 53341601 Roller: Pull Up Assembly (Wide) RSPL 521 B.2.05
