Oki ML520 - Idle Gear and Change Lever Service

Page: 92
Service Guide ML520/521
Chapter 3 Maintenance & Disassembly
3.2.23 Idle Gear and Change Lever
1. Perform these procedures:
3.2.01
, 3.2.06 , 3.2.07 , 3.2.16 , 3.2.17 , 3.2.19 , 3.2.20 , and
3.2.22 .

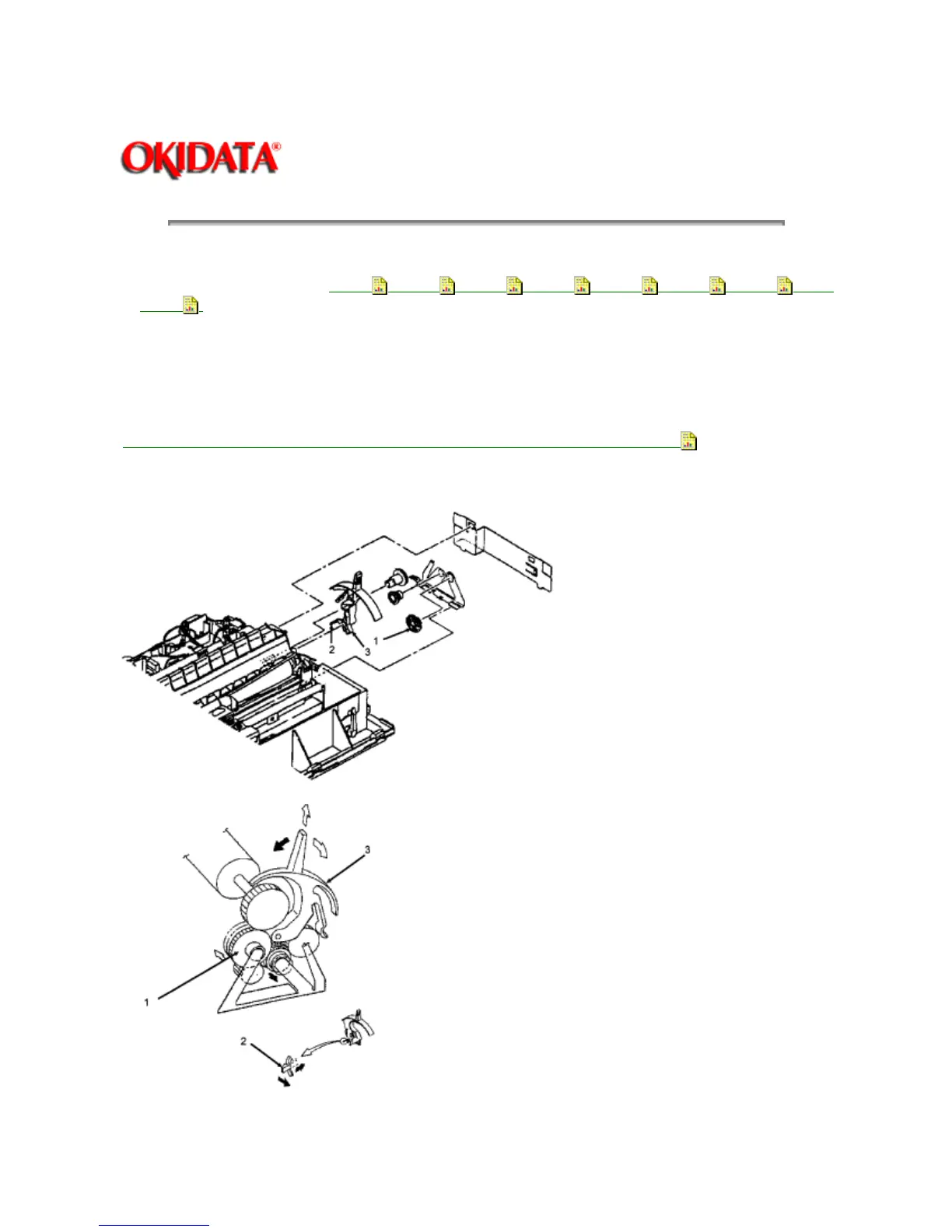

2. Remove the idle gear (1). The idle gear is a large narrow gear.
3. Release the claw (2) of the change lever (3). The claw is accessed from inside the unit.
4. Remove the change lever.
NOTE:
Lubrication
When lubricating, refer to Section 3.5 of this Service Handbook.
