Page: 73
Service Guide ML520/521
Chapter 3 Maintenance & Disassembly
3.2.04 Gear Case Assembly
1.
Perform these procedures: 3.2.01
, and 3.2.02 .

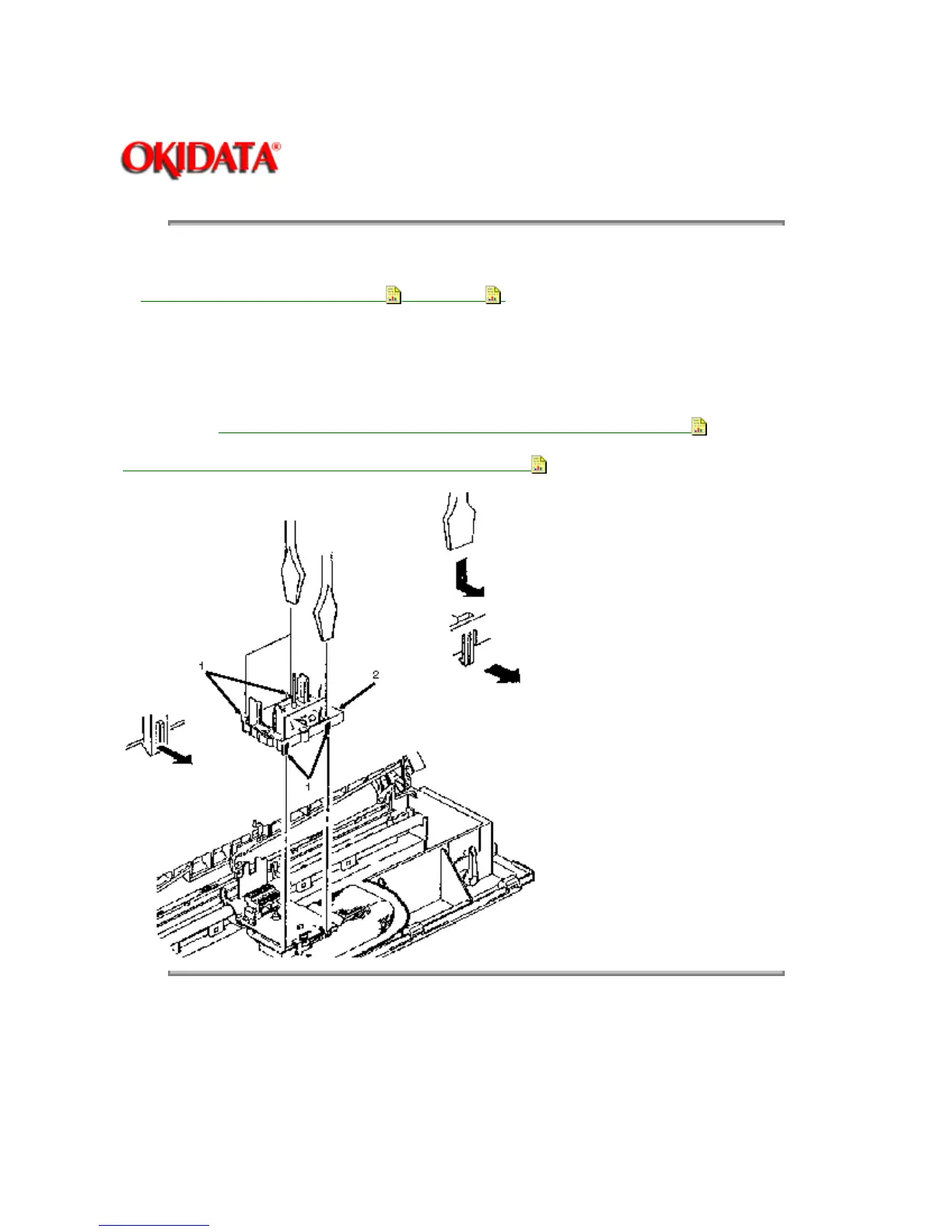

2. Use a straight-slot screwdriver to release the four claws (1) of the gear case assembly (2).
3. Lift and remove the gear case assembly.
NOTE:
Lubrication ---
When lubricating, refer to Section 3.5 of this Service Handbook.
P/N 51228501 Gear: Case (Assembly) RSPL Both B.2.07
Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business
Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
