Page: 36
Service Guide ML520/521
Chapter 2 Principles of Operation
2.1.06 Operation Panel

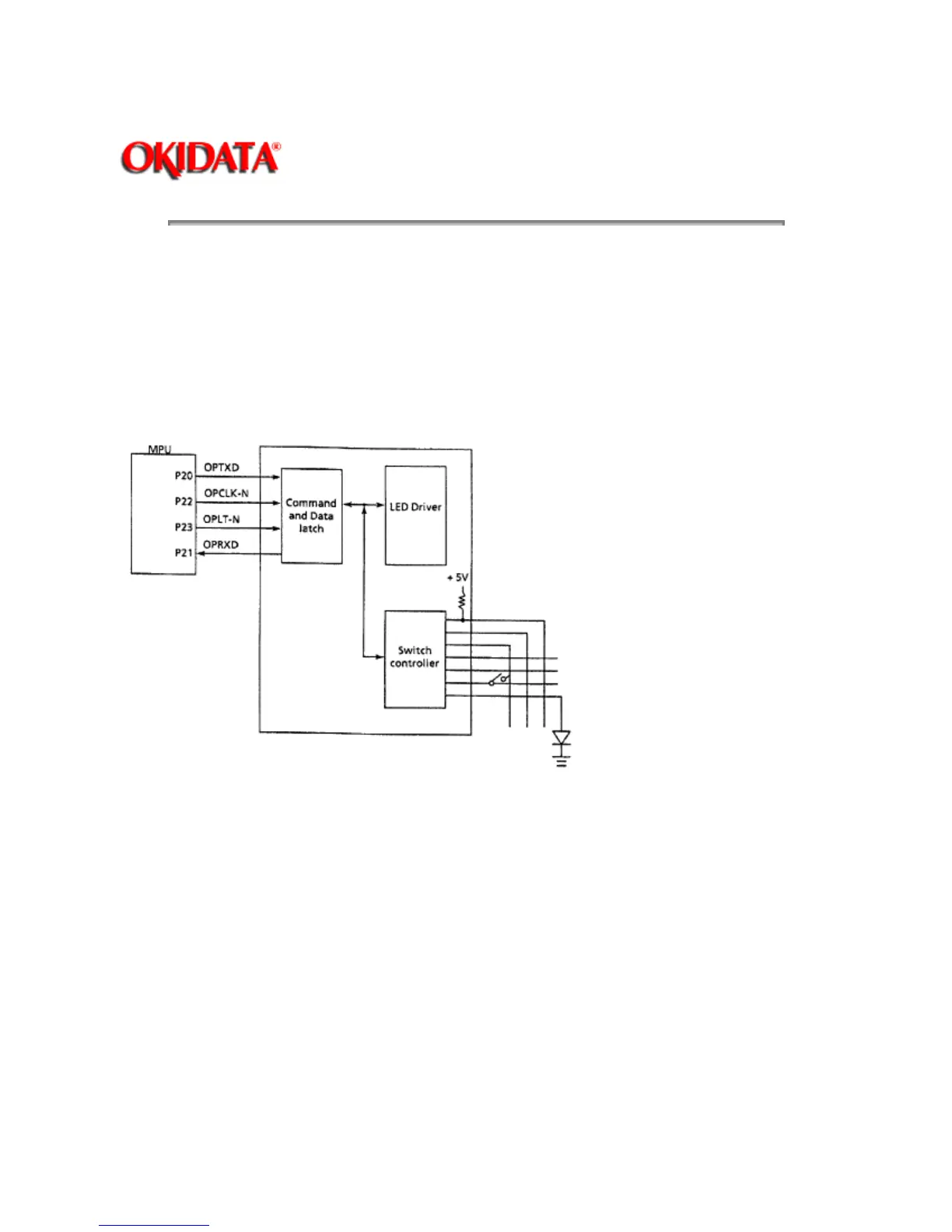

The Serial I/O Port (Ports 20 - 23) of the MPU reads the operation panel switch data from the operation
panel control LSI (Location IC1: BUS148S).
A two byte (15 bits +1 parity bit (even parity)) command (OPTXD) is transmitted from the MPU to the
operation panel LSI in synchronization with the OPCLK signal. Once the LSI decodes the command, the
command must pass a command code check and have no parity errors. Then, the specified I/O control
will return the two byte command response to the MPU.
