Service Guide ML520/521
Chapter 3 Maintenance & Disassembly
3.2.18 Rear and Cut Sheet Paper Feed Sensor Levers
1. Perform these procedures:
3.2.01
, 3.2.06 , 3.2.07 , 3.2.16 , and 3.2.20 .

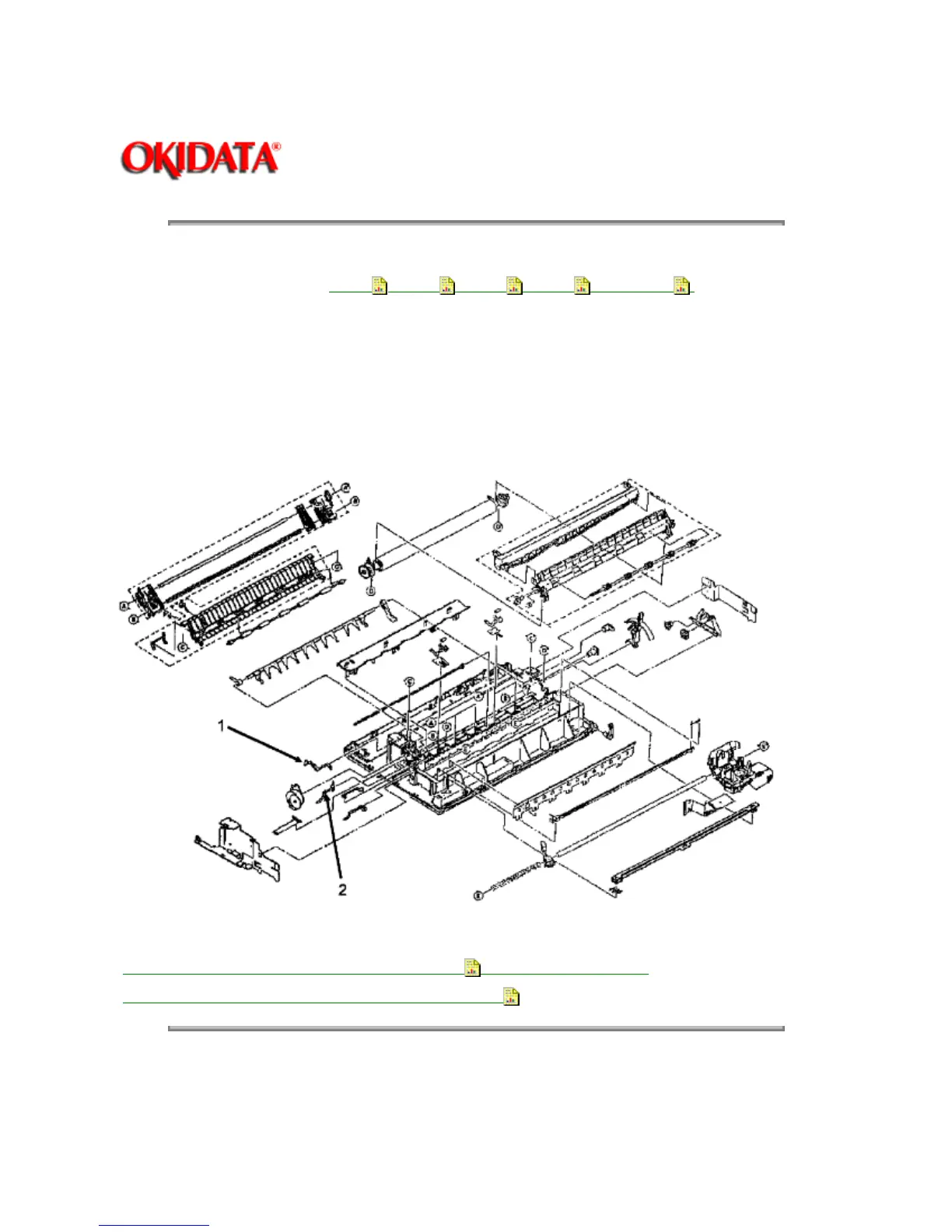

2. Turn the cut sheet/continuous feed paper sensor lever (1) until the flag is at the top, then work the
lever free.
3. Remove the lever.
4. Turn the rear feed paper sensor lever (2) until the flag is at the top, then work the lever free.
5. Remove the lever.
P/N 50804902 Lever: Sensor RSPL Both B.2.04 Cut Sheet/Continuous
P/N 50804801 Lever: Rear Sensor RSPL Both B.2.04
