Service Guide ML520/521
Chapter 3 Maintenance & Disassembly
3.2.16 Left Ground Plate
1. Perform these procedures:
3.2.01
, 3.2.06 , and 3.2.07 .
2. Cut the nylon tie and release the cable. (Not shown).

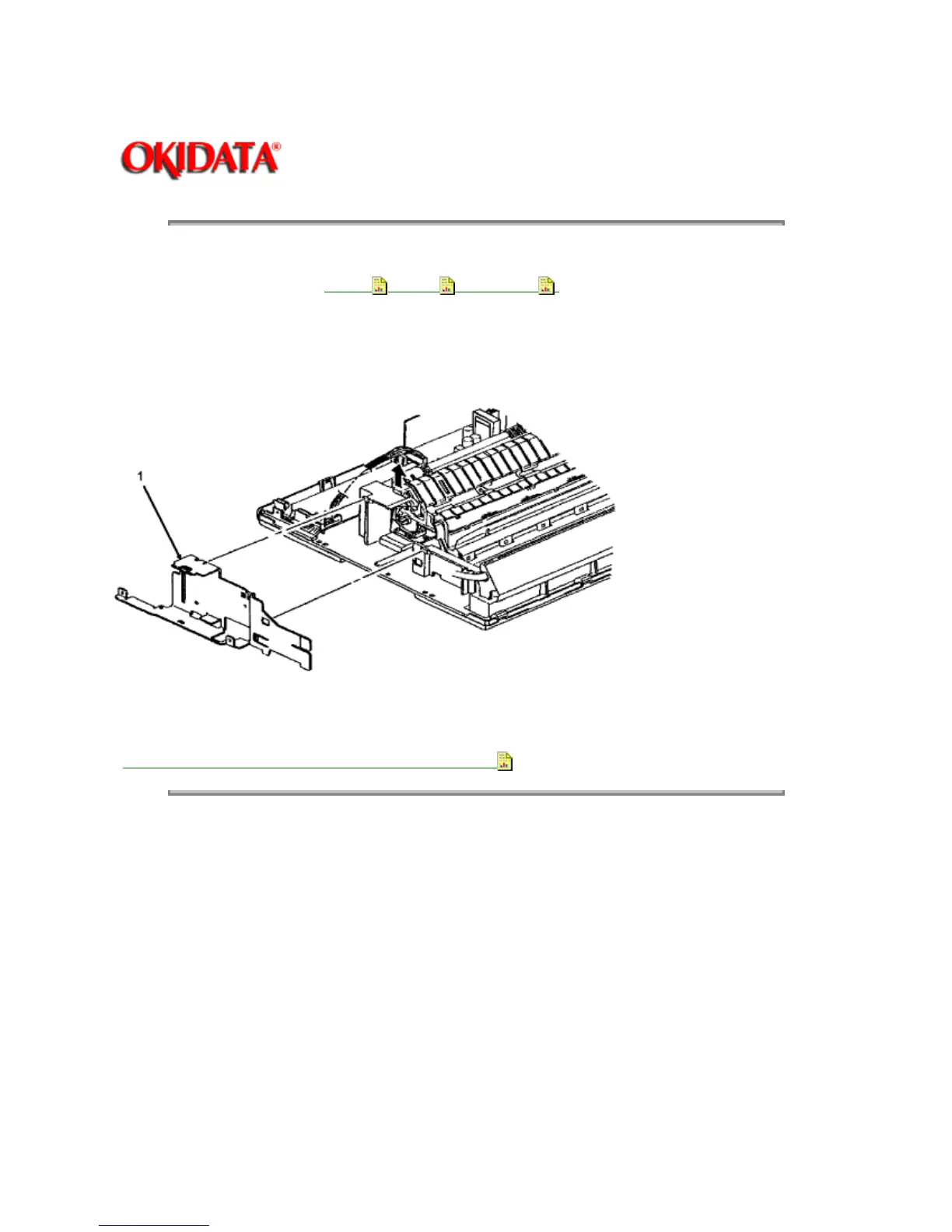

3. Work the left ground plate (1) up, and then out, to remove it.
P/N 51010301 Plate: Left Ground RSPL Both B.2.04
