Service Guide ML520/521
Chapter 2 Principles of Operation
Cut Sheet Paper Feed Operation

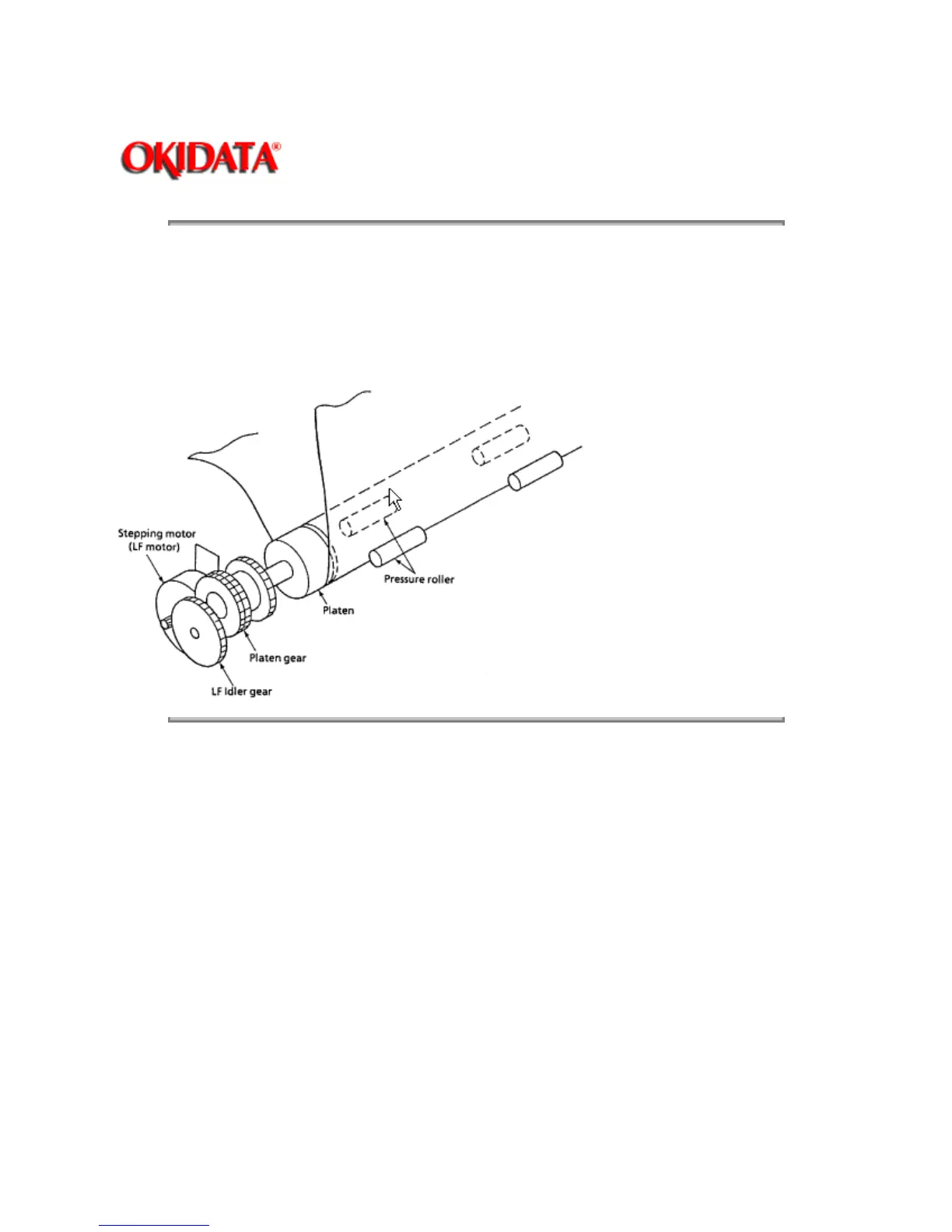

As the line feed motor rotates, power is transferred through the decelerating gears (line feed idler gear,
platen gear) to the platen.
When using cut sheet paper, the change lever must be in the TOP position so the platen and pressure
rollers can feed the paper. This also disengages the push tractor.
