Service Guide ML520/521
Chapter 3 Maintenance & Disassembly
3.2.21 Line Feed Motor Assembly
1. Perform these procedures:
3.2.01
, 3.2.06 , 3.2.07 , 3.2.16 , 3.2.19 , 3.2.20
, and 3.2.21 (this
section).

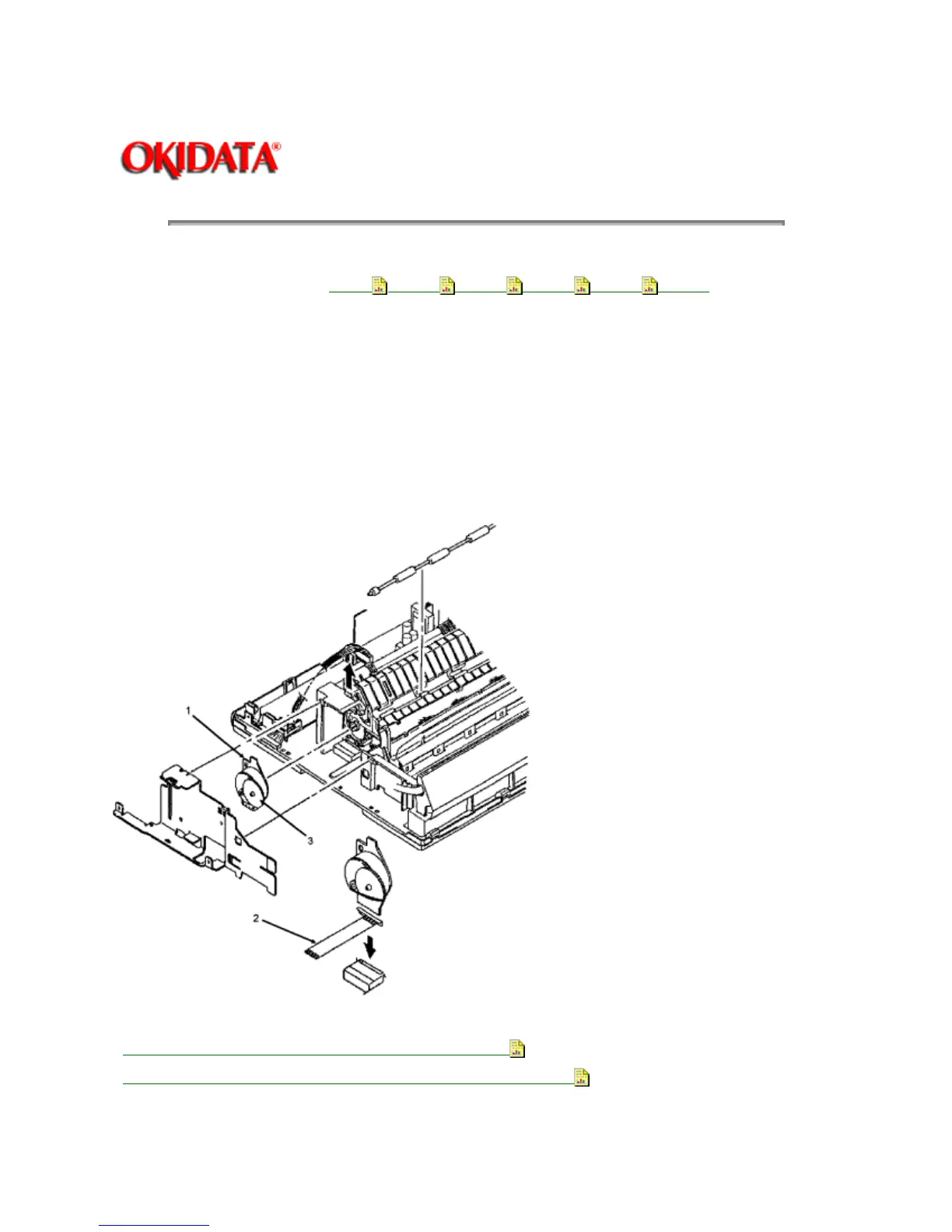

2. Firmly press down on the line feed motor assembly (1) while tilting the assembly out.
3. Remove the line feed motor assembly.
4. Remove the line feed connection cord (2).
CAUTION:
The line feed idle gear (3) should be removed only if it must be replaced. The claws will break when the
gear is removed. A new gear must be installed.
P/N 51228401 Gear: Line Feed Idle RSPL Both B.2.04
P/N 56510301 Motor: Line Feed (Assembly) RSPL Both B.2.04
