The Microline 520/521 printers will automatically detect cut sheet paper and feed the paper to the Top of
Form (TOF) position.
Cut Sheet Paper
Set the change lever to the TOP FEED position.
NOTE:

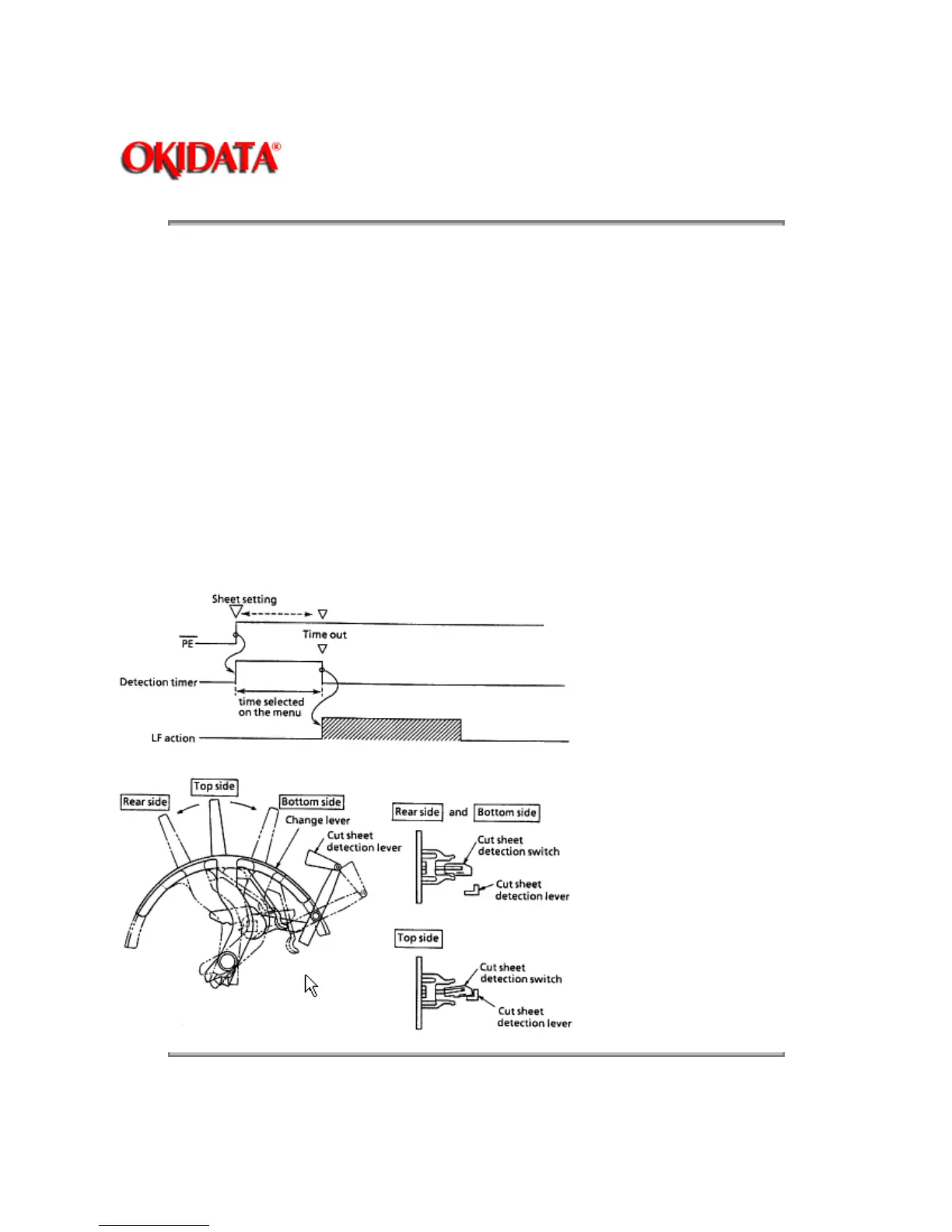

When the change lever is in the TOP FEED position, the cut sheet detection lever contacts the cut sheet
detection switch (BASW), which is located on the main control board.
Insert the sheet of paper between the platen and the paper chute.
Once paper is detected at the paper end sensor and the amount of time selected on the
Wait Time
setting
of the menu has lapsed, the line feed motor will feed the paper until the leading edge of the paper reaches
the top of form position.
