2.2 MECHANICAL OPERATION
2.2.01 Printhead Mechanism

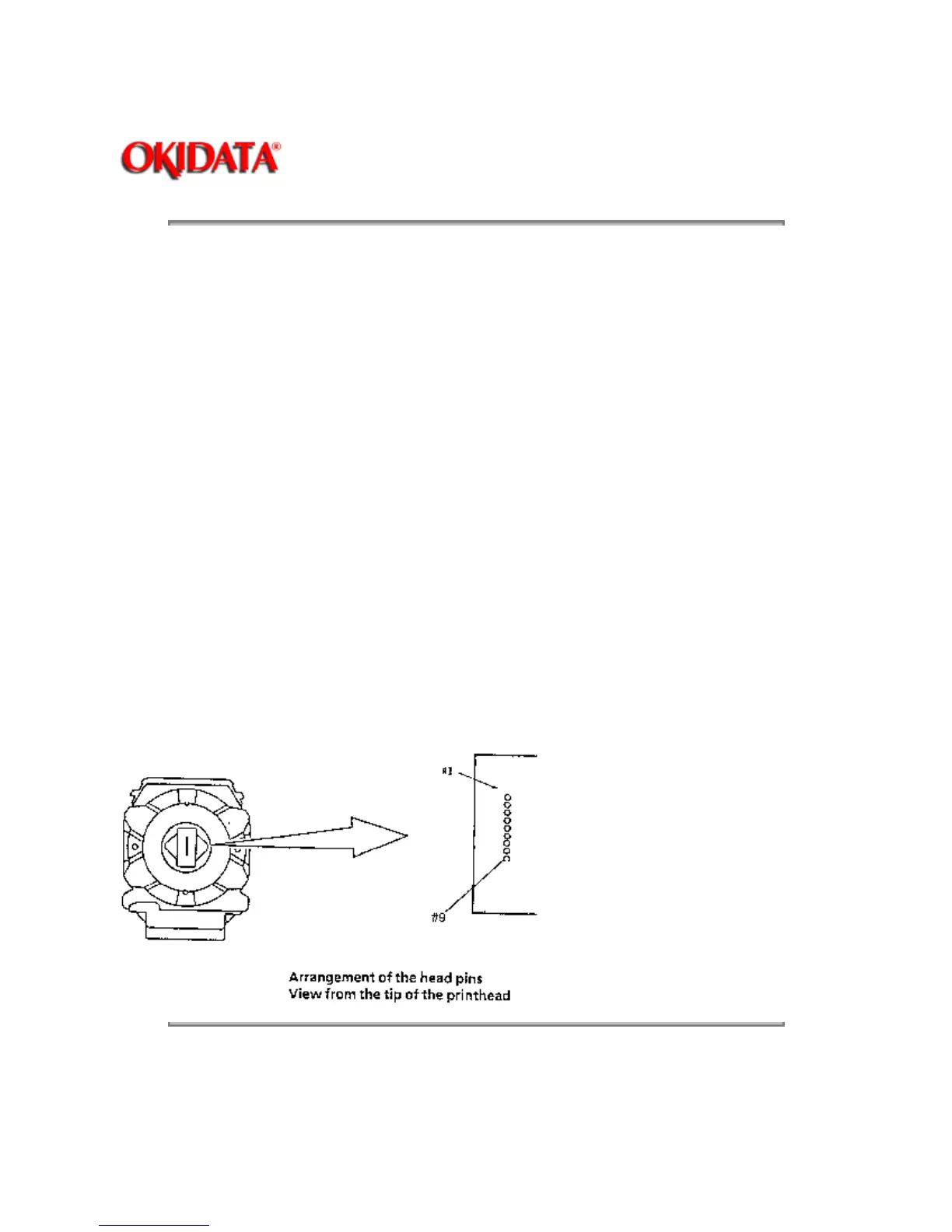

The printhead is a spring-charged, 9-pin printhead. It is attached to the carriage, which moves parallel to
the platen. Electrically, the printhead is controlled by the main control board via the carriage cable and the
space motor.
The printhead is composed of the following parts.
Wire Guide
Spring Assembly
Wire, Armature, Spring, Yoke, Spacer
Magnet Assembly
Magnet, Core, Coil, Yoke
Printed Circuit Board
Logic Control, Print Driver, Analog Sensor Control and Thermistor
Cooling Fin
