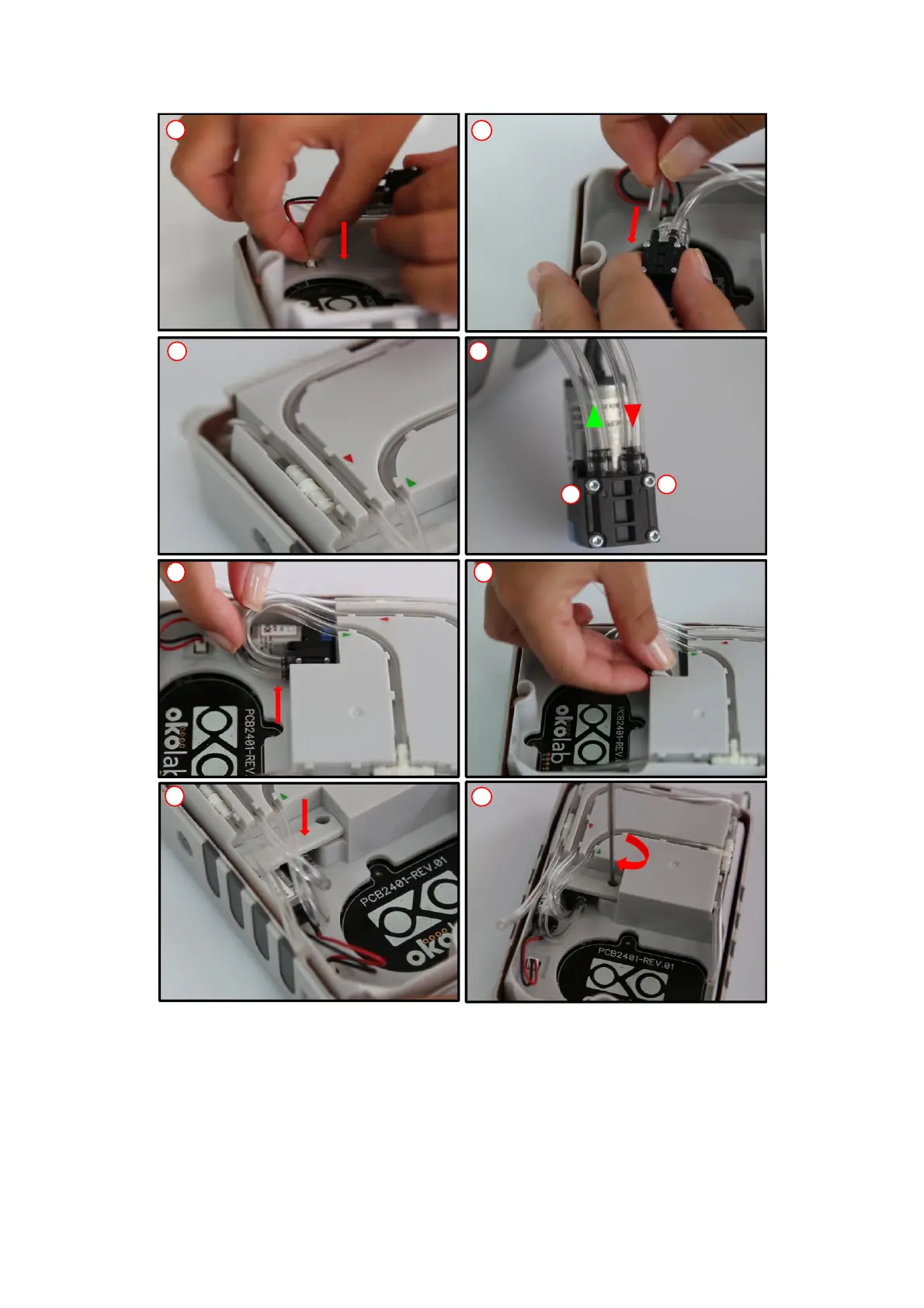

Figure 117. Pump replacement
Follow the instructions below to insert CO2-O2-MODULE:
1 Connect inlet (see Figure 118, a) and outlet tube (see Figure 118, b) to CO2-O2-MODULE.
2 Fasten the screws (1 in Figure 118, c and 2 in Figure 118, d) by using a hexagonal key (1.5mm).
3 Put the rear cover on LEO and fasten the screw by using a hexagonal key (2.5mm), as shown in Figure 118,f.
