86
3 Disconnect the electrical connector of the pump (see Figure 116, d). Gently press the clip to release pressure
and remove the connector.
Note ► Remove the connector with extremely care. You can damage the connector and the port. Damage to
the port creates the need for additional repairs to LEO.
a b
c d

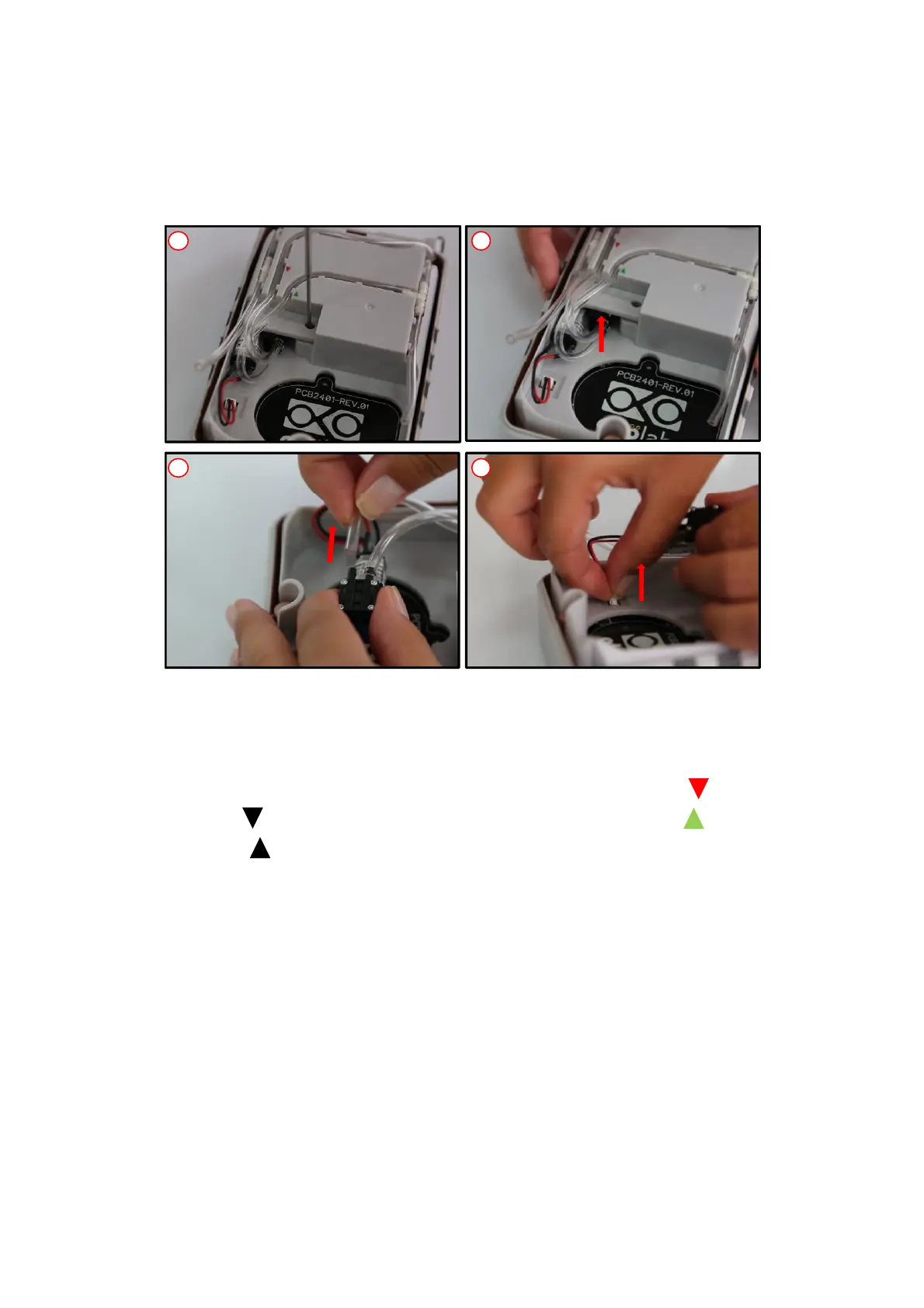

Figure 116. Pump extraction
4 Replace the pump with new pump ordered from Okolab.
5 Reconnect the electrical connector of the new pump (see Figure 117, a).
6 Connect the inlet and outlet tubes (see Figure 117, b). Connect LEO tube marked by (see Figure 117, c)
to the inlet port of the pump (1 in Figure 117, d). Connect LEO tube marked by ( see Figure 117, c)
to the outlet port of the pump (2 in Figure 117, d).
7 Place the pump in its slot (see Figure 117, e) and place the pump cover on it (see Figure 117, f and g).
8 Fasten the screw by using a hexagonal key (1.5 mm), as shown in Figure 117, h.
