iTrans Fixed Point Single/Dual Gas Monitor
System Wiring
(P/N: 77023554-1)
iTrans User Manua
l
4-7

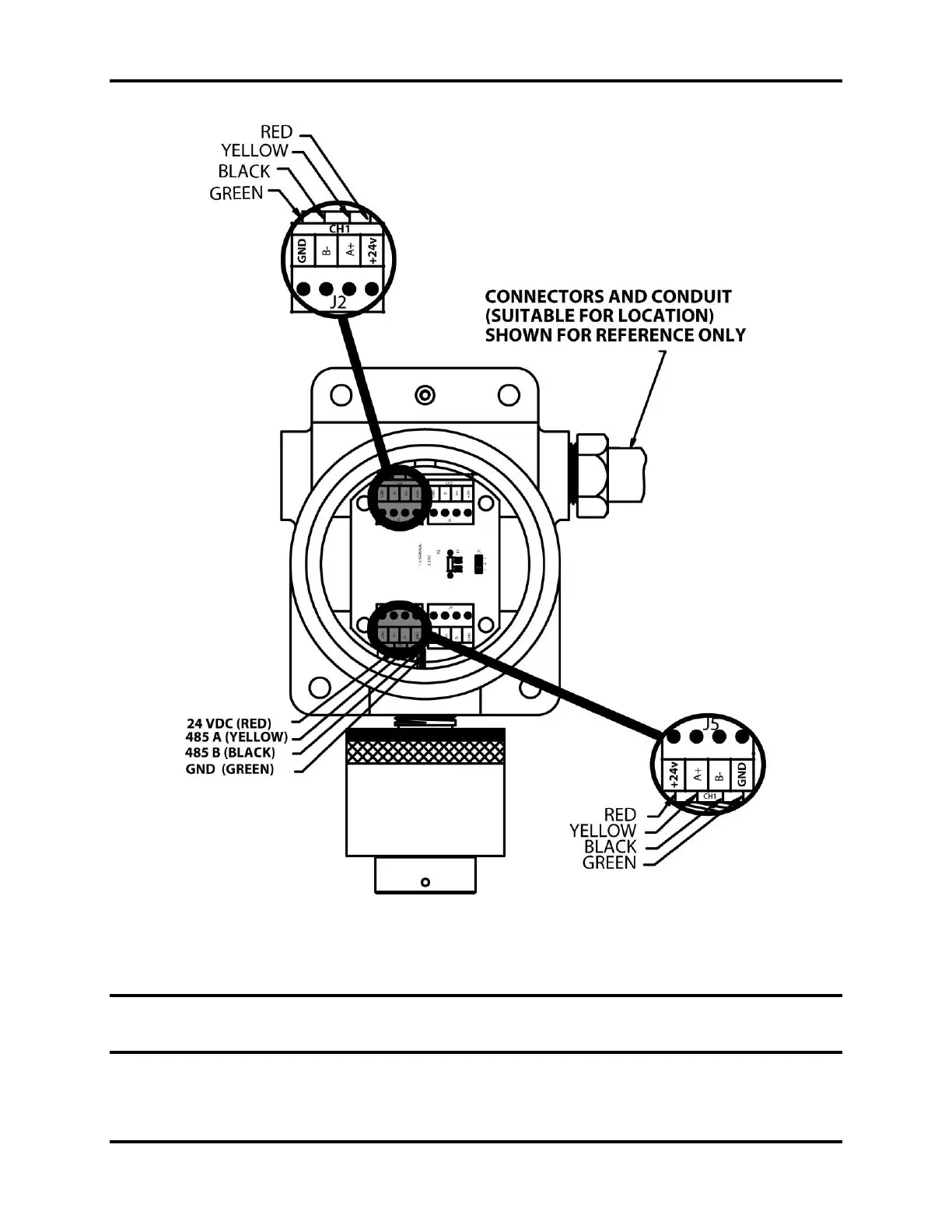

Figure 4-5. Wirin
g
Diagr
a
m for a Rem
ote Sensor (Stand A
lone)
NOTE:
When
the
remote
sensor
is
at
distance
s
of
200
meters
or
further,
and
the
se
nsor is no
t
comm
un
icating, the j
umper may need to be m
oved to terminals 1-
2.
