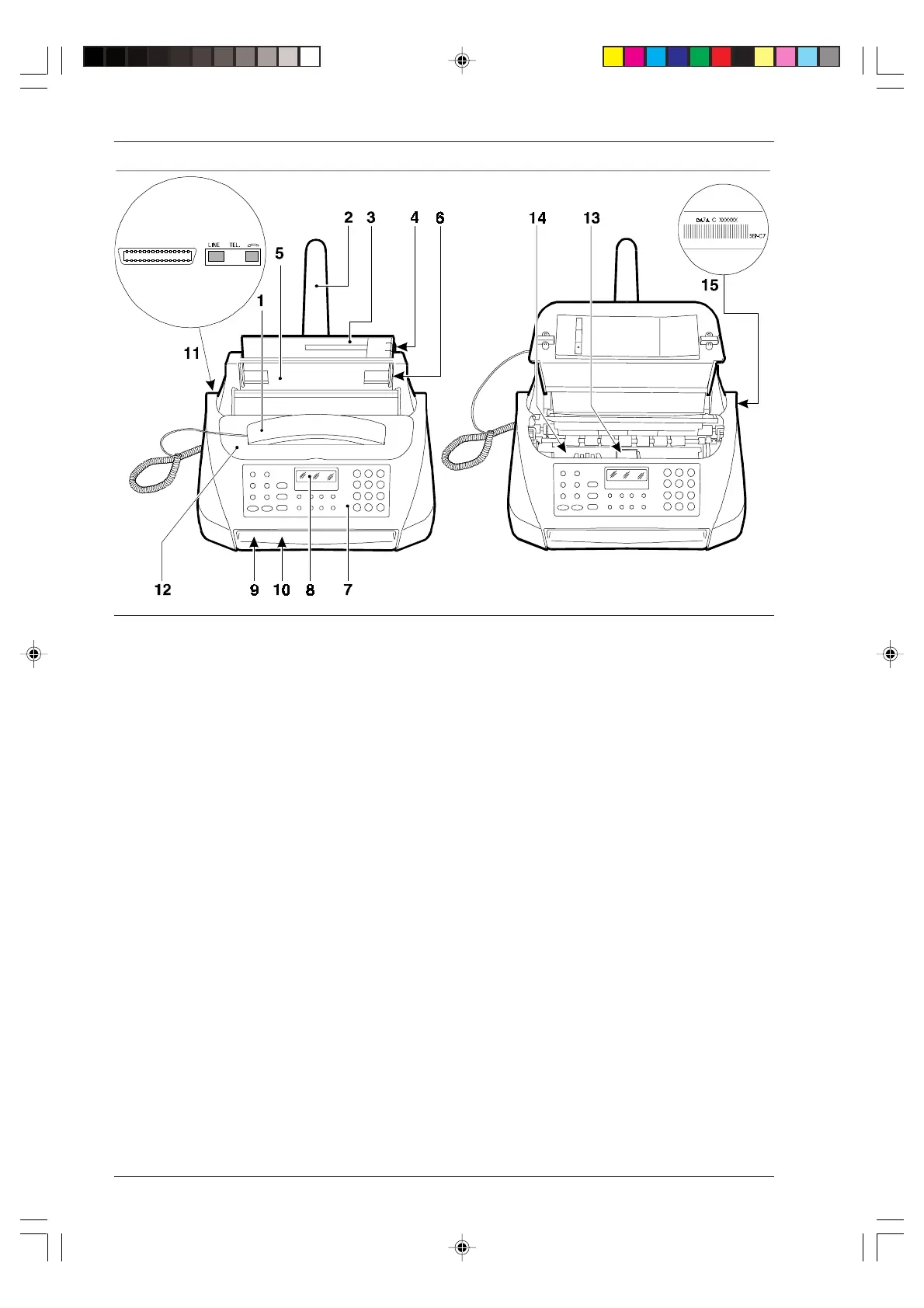

The above figures show the external parts which the three models have in common, except for the second row of
keys on the left-hand side of the console (only on the model with internal answering machine) and the parallel
interface (only on the multi-use model).
1. Enclosed handset.
2. Paper support extension.
3. Sheet feeder (ASF) adjustable according to the following paper formats: A4, Letter and Legal. Maximum capacity:
80 sheets (80 gr/m
2
).
4. Paper feeder adjustment lever.
5. Automatic feeder for documents to be transmitted and copied (ADF). Maximum capacity: 15 A4, A5, Letter and Legal
sheets.
6. Paper guides. Adjustable according to the width of the document to be transmitted or copied.
7. Operator console.
8. Display.
9. Outlet for the originals and for received or copied documents.
10. Loudspeaker.
11. Connection sockets.
12. Print head compartment cover.
13. Print head compartment.
14. Optical scanner.
15. Serial number label (see the bottom casing)
