1.6 LAYOUT OF THE DRAWER AND DISPLAY CONNECTORS
By means of the drawer and display option it is possible to drive a client drawer and display.
• Drawer Connector
Solenoid resistance 24 ohm min
Output voltage 24 volts
Current 1 amp Max
Printer side connector Molex 52065-6615 or equivalent

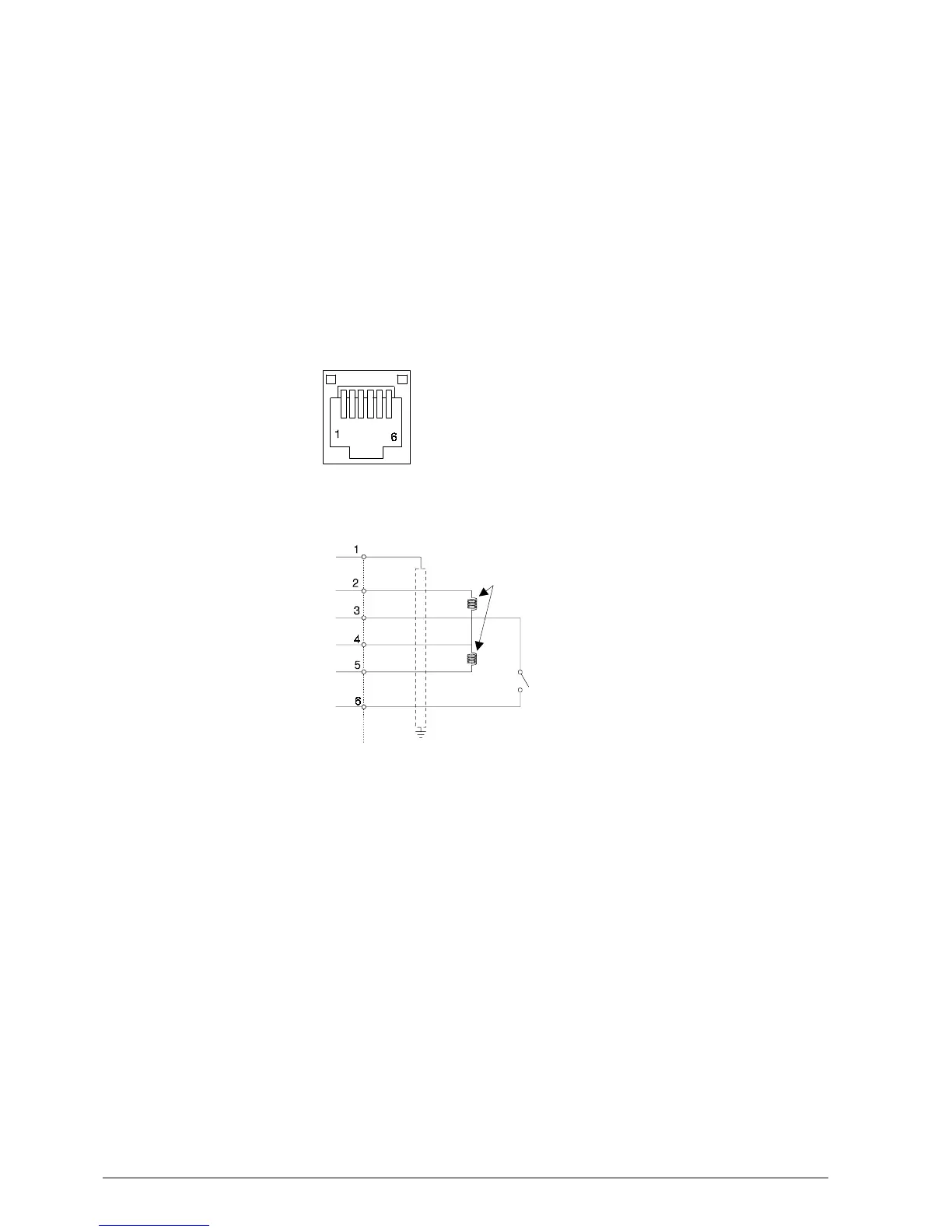

1 Frame GND
2 Drawer kick-out drive signal 1
3 Drawer open/close signal
4 + 24 V
5 Drawer kick-out drive signal 2
6 Signal GND
With shielded
Drawer kick-out
solenoid
Drawer open/close
detection switch
