5.7 REMOVING THE CARRIAGE
MOTOR
• Remove the case (Section 5.2).
• Proceed as explained in Section 5.4 to access the
print assembly.
• After having removed the plastic board, remove
screws A and B so that you can then remove
the motor.

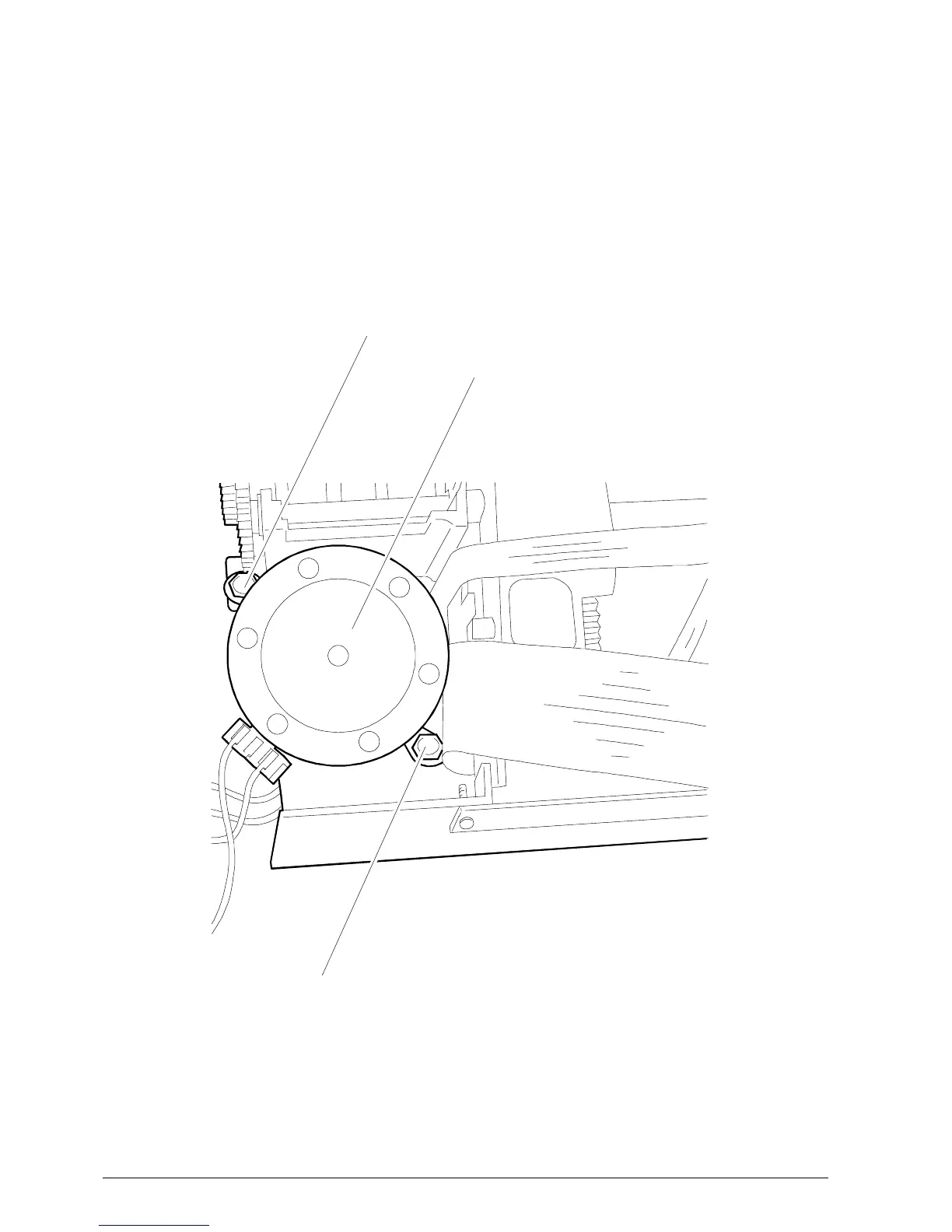

SCREW B
SCREW A
CARRIAGE MOTOR
