XYAA6338 Service Manual 5-7
2

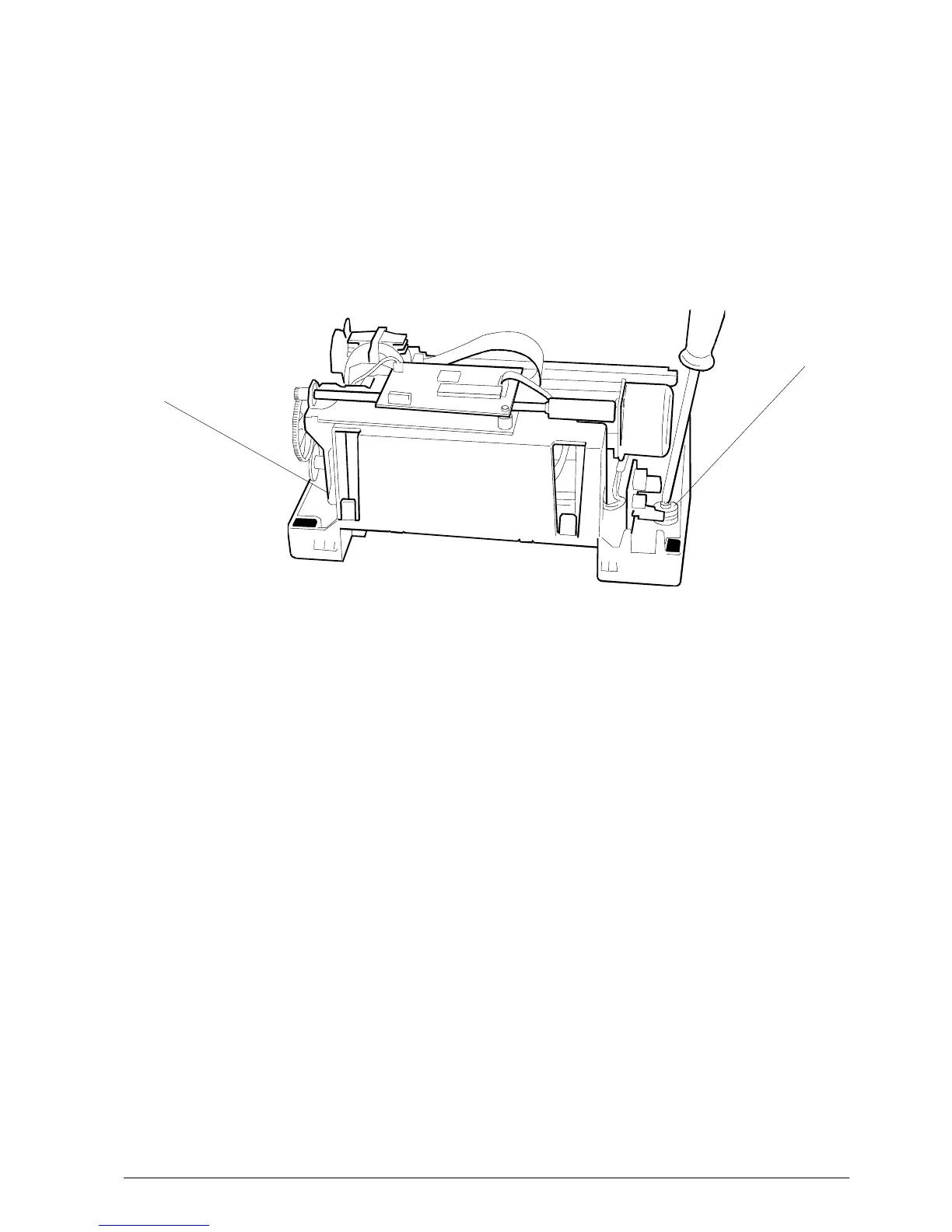

Fig. 5-3
1
5.4 REMOVING THE PRINT ASSEMBLY
• Remove the case (Section 5.2).
• Loosen screws 1 and 2 and then lift the machine off
its base (Fig. 5-3).
• Detach the yellow ground wires.
• Disconnect all the connectors from the electronic
board and separate the machine from the base.
• To reassemble follow the disassembly procedures
in reverse order giving special consideration to the
hooking points shown in the figure.
