Olivetti PR4 SLIP - Removing the Line Feed Motor; Basic Printer Version; MICR Version

5-14XYAA6338
5.11 REMOVING THE LINE FEED
MOTOR
5.11.1 Basic Printer Version
• Remove the case (Section 5.2).
• Remove gears A and B after removing circlips C.
• Remove the line feed motor securing screws 1 and
2 (Fig. 5-13).
• Remove motor D.
A
1
B
2
D

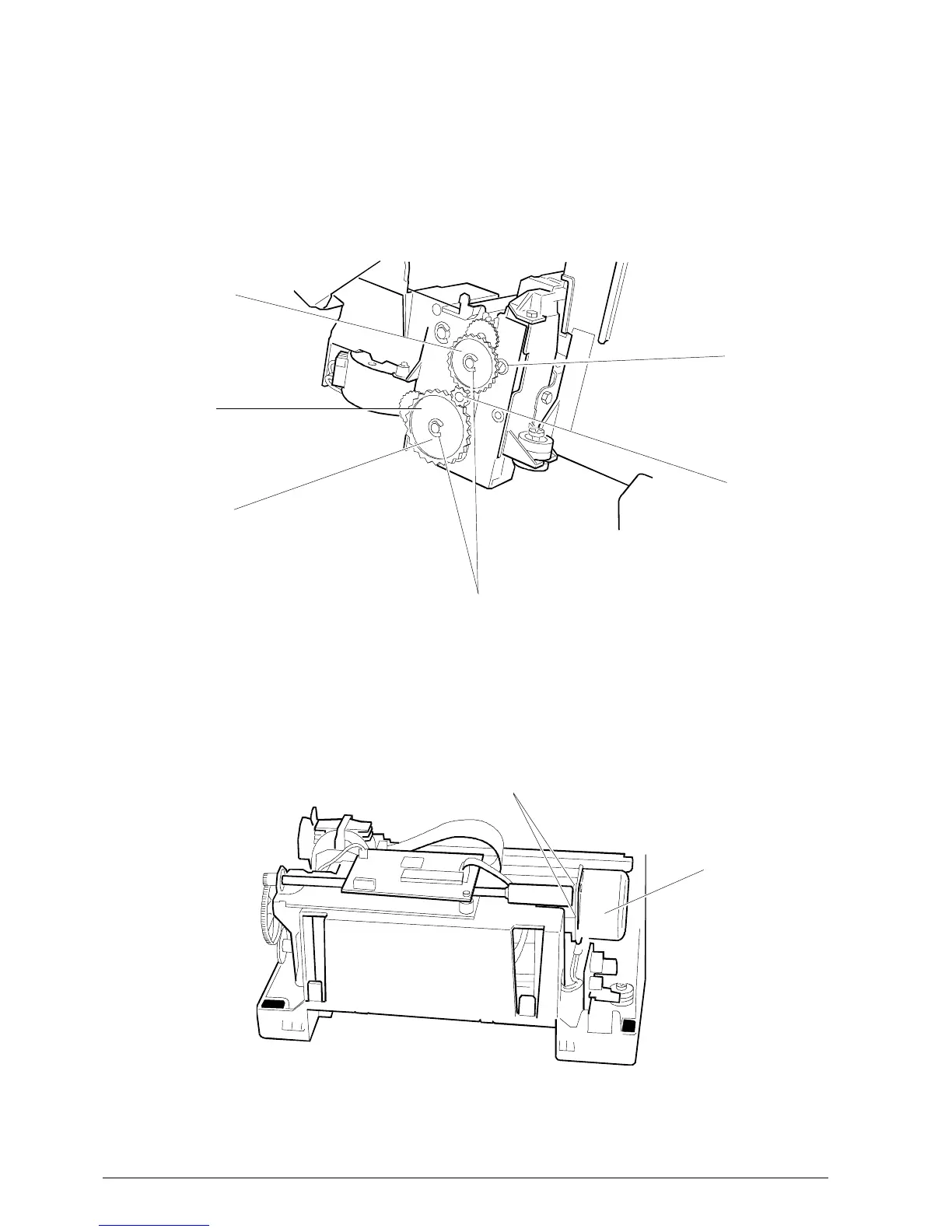

Fig. 5-13
5.11.2 MICR Version
• Remove the case (Section 5.2).
• Remove both screws A (Fig. 5-13) and slide off
motor B.
Fig. 5-14
A
C
B
