Olympus 27MG - Keypad Functions; Figure 1-3 the Top End Connectors; Figure 1-4 the 27 MG Keypads

DMTA-10043-01EN, Rev. C, July 2016
Chapter 1 18

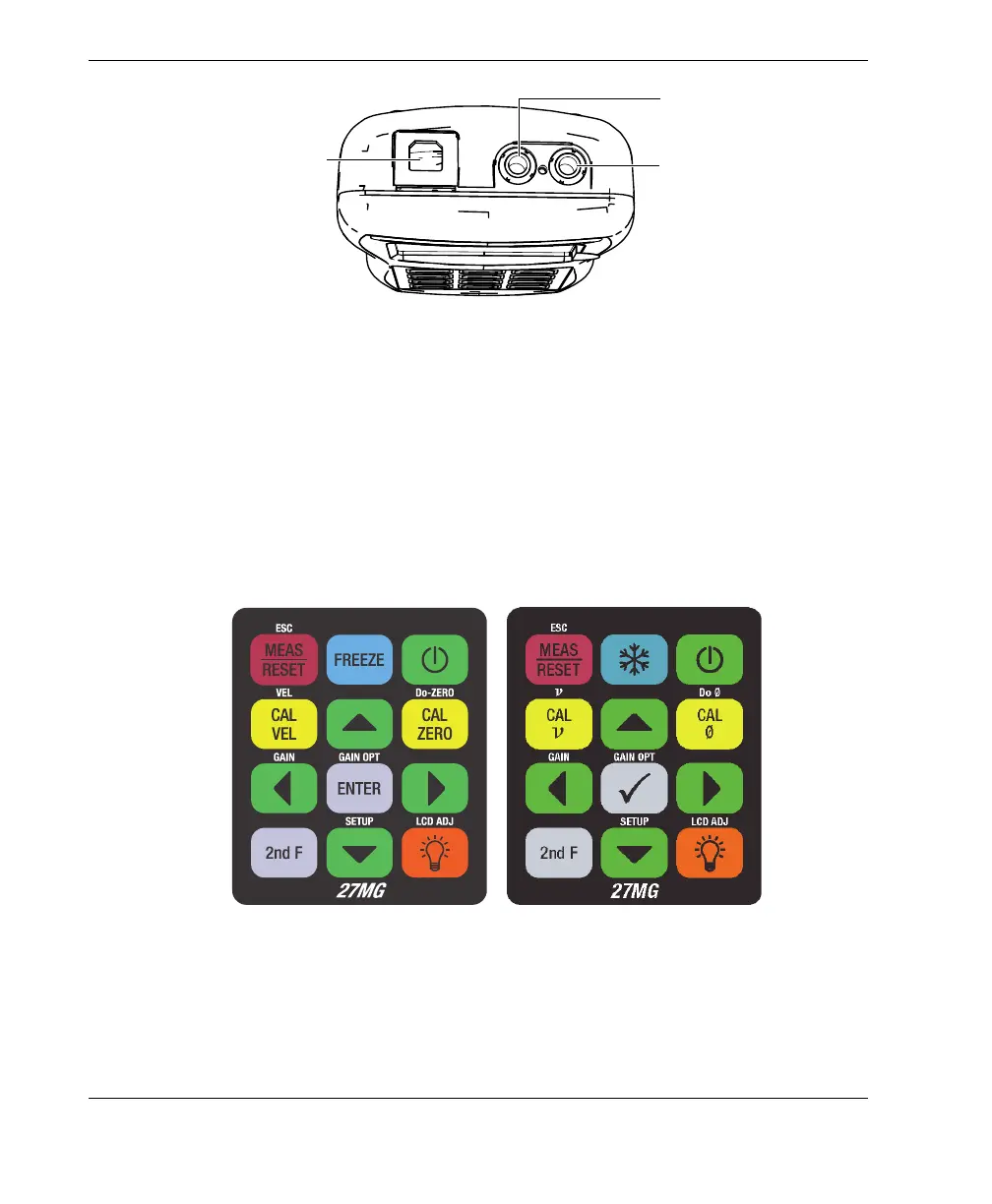

Figure 1‑3 The top end connectors
1.5 Keypad Functions
The 27MG comes either with the English or the international keypad (see Figure 1-4
on page 18). The functions are the same for both keypads. On the international
keypad, the text labels on many keys are replaced by pictograms. In this document,
keypad keys are referred to using the English label in bold and within brackets (ex.:
[MEAS]).
Figure 1‑4 The 27MG keypads
USB communication
connector
Transmit/Receive transducer
connector 2
Transmit/Receive transducer
connector 1
English keypad International keypad
