DMTA-10043-01EN, Rev. C, July 2016
Maintenance and Troubleshooting 75

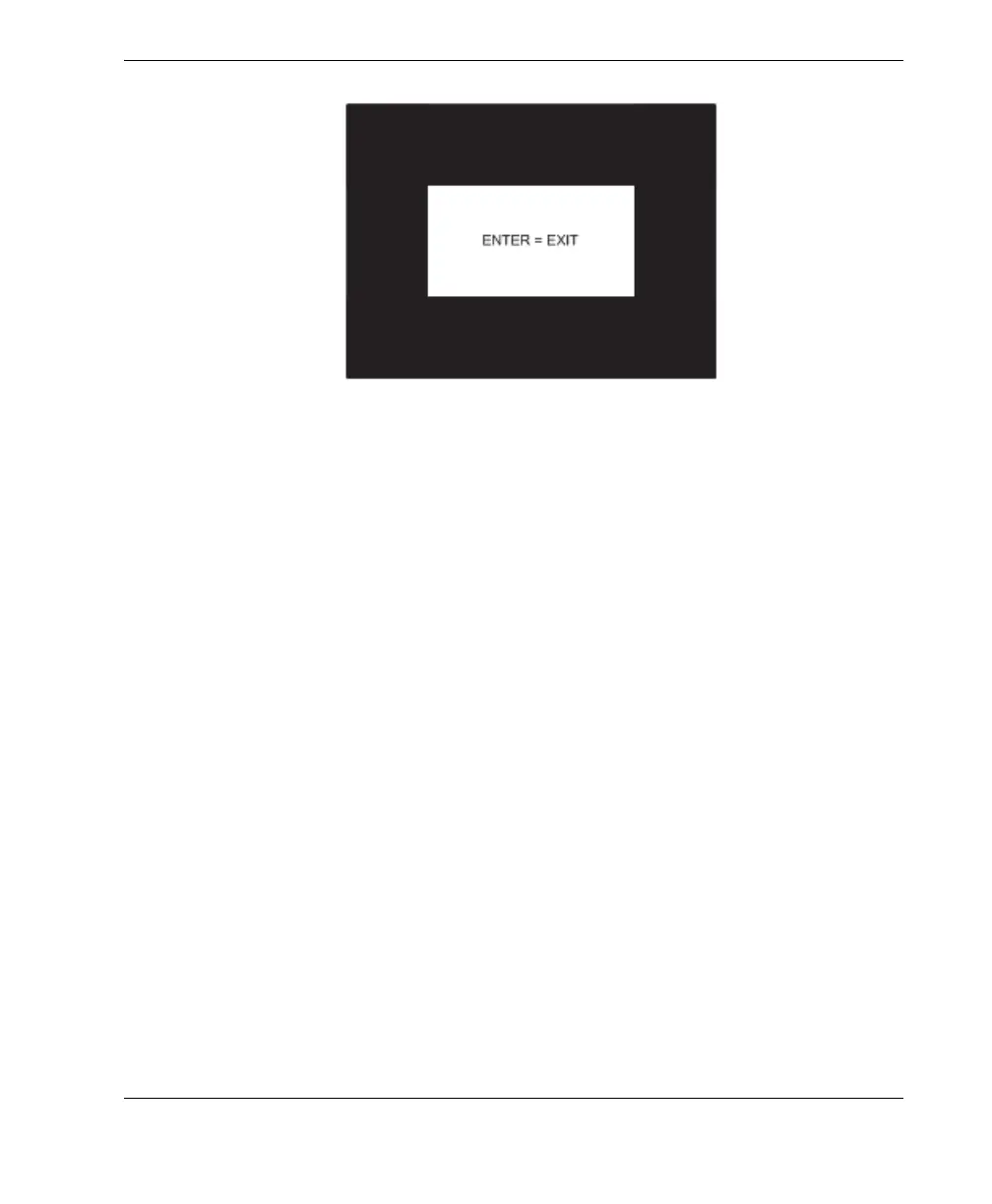

Figure 11‑3 The Video Test screen
To test the video display
1. From the measurement (MEAS) screen, press [2
nd
F] [] and use the [] arrow to
move across the top of the screen to the TESTS tab.
2. Press the [] arrow to select VIDEO TEST and then press [ENTER] to start the
test, or press [2
nd
F] [] to abort the test. Determine visually that video pixels are
functional by observing if white spots occur in the screen test display.
3. Press [ENTER] to go back to the TESTS screen.
11.9 Repair Service
Olympus will repair any 27MG Ultrasonic Thickness Gage at its Waltham,
Massachusetts, USA factory. In addition, some local Olympus dealers can perform
repairs.
11.10 Replacement Parts, Optional Parts, and Equipment
Replacement parts for the 27MG as well as additional related equipment are available
from Olympus.
