SAL System
3. Input the camera adapter magnification.
4. Input the objective magnification and memory number for each revolving nosepiece position.
@Input the magnification and memory number of the objective that is being engaged in the light path.
²Rotate the revolving nosepiece to engage the objective in the adjacent position in the light path.
3Input the magnifications and memory numbers of all of the objectives in the nosepiece positions by repeating steps @
and ² for each of them.
|It is not necessary to input the magnifications and memory numbers for the positions in which objectives are not
mounted. Just rotate the revolving nosepiece and input the magnifications and memory numbers of the objectives that
are present.
5When the information of all of the revolving nosepiece positions has been input, press the SET/OK button of the hand
switch (or click on [NEXT] if you are using the mouse).

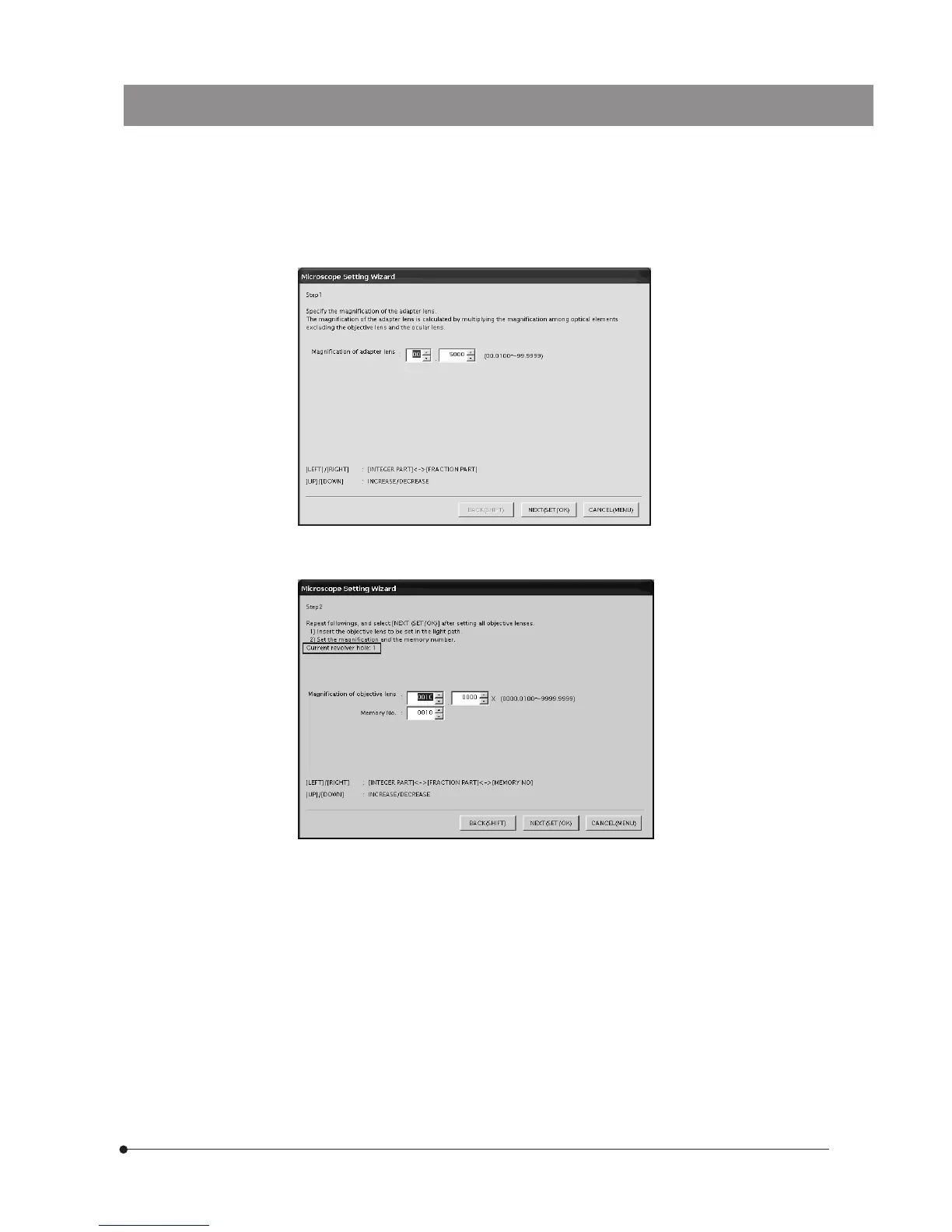

}The information on the current revolving nosepiece position is automatically acquired and displayed inside the frame
shown in the figure above.
}The memory numbers can be set arbitrarily. If you input the figures of objective magnifications as the memory numbers,
It would be convenient when re-setting the magnifications.
}The default magnification value (1X) is set for the positions for which the magnifications are not input. When an additional
objective is mounted, be sure to change the default to the actual magnification.
