66

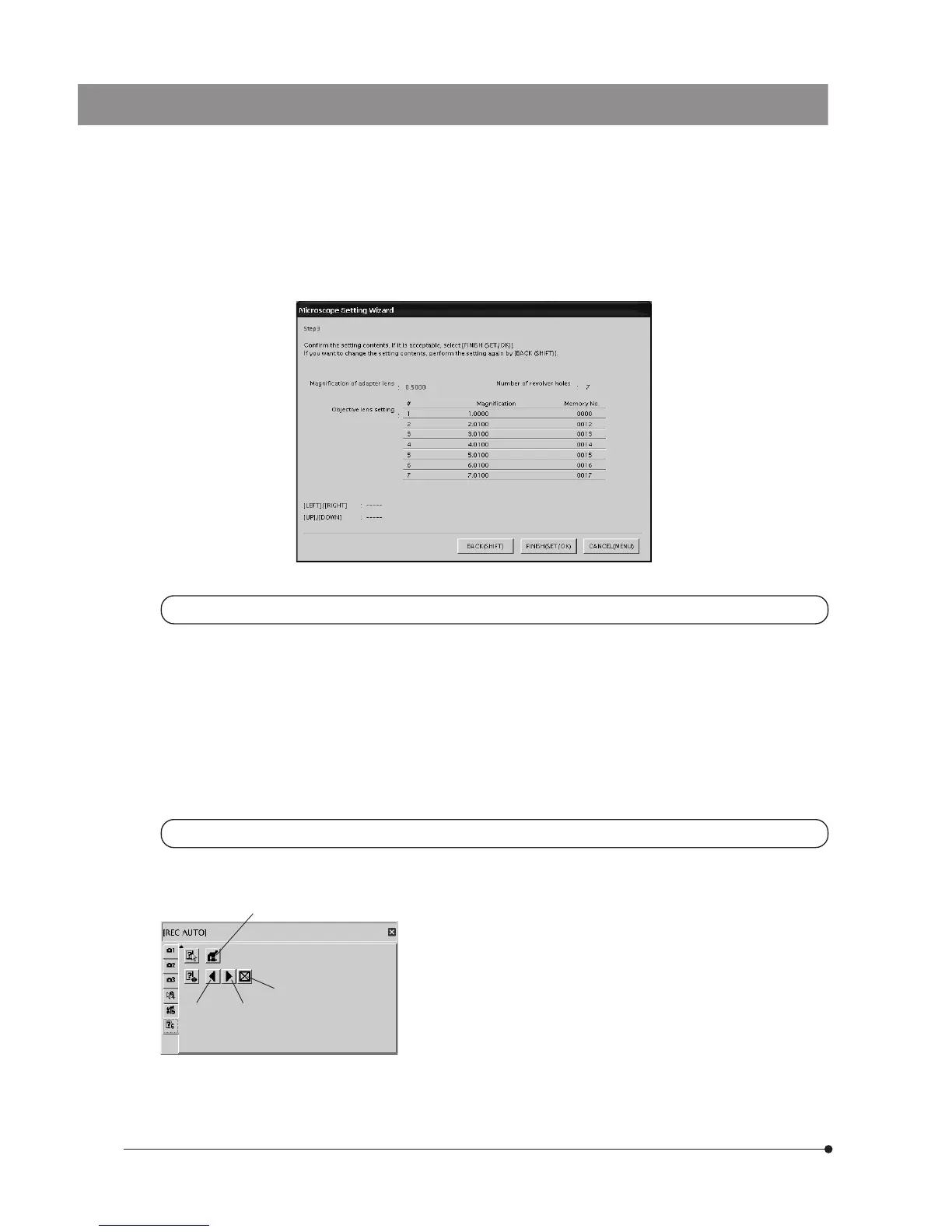

5. The window for confirmation of the input magnifications is displayed. Check the input information and, if there is no
problem, press the SET/OK button of the hand switch (or click on [NEXT] if you are using the mouse). To modify informa-
tion, press the MENU button of the hand switch (or click on [CANCEL] if you are using the mouse).
Shutter switch
The shutter switch can be installed on the microscope by connecting the U-HSEXP to the U-CBS. This makes it possible
to record images while manipulating the microscope.
The shutter switch has the same function as the EXPOSE button of the DP21 hand switch. Pressing the shutter switch
executes recording and saving of an image.
}See page 61 for the method of connection to the U-CBS.
}See page 63 for the method of installation on the microscope.
}The shutter switch cannot be used unless the control box (U-CBS, etc.) and revolving nosepiece (U-D7RES or U-D7REA)
are connected.
It cannot be recorded by the shutter switch. Use the DP21 hand switch to start/finish recording.
Guidance function
This function displays the “Guidance for Shooting Neat Photomicrographs.” The Guidance includes the adjustment
procedures of the microscope and camera as well as applied functions that would be convenient for the reader.
1. Open the Menu window.
2. Select the microscope guidance display button @.
3. The Guidance window is displayed on the top left of the screen.
4. The Guidance is composed of 19 pages. Select ² to return to the previ-
ous page or 3 to advance to the next page.
5. Select | to close the Guidance.
}Other functions can be used as usual even when the Guidance is dis-
played.
}The Guidance cannot be displayed unless the control box (U-CBS, etc.)
and revolving nosepiece (U-D7RES or U-D7REA) are connected.
1
² ³
|
