Bode 100 User Manual
128

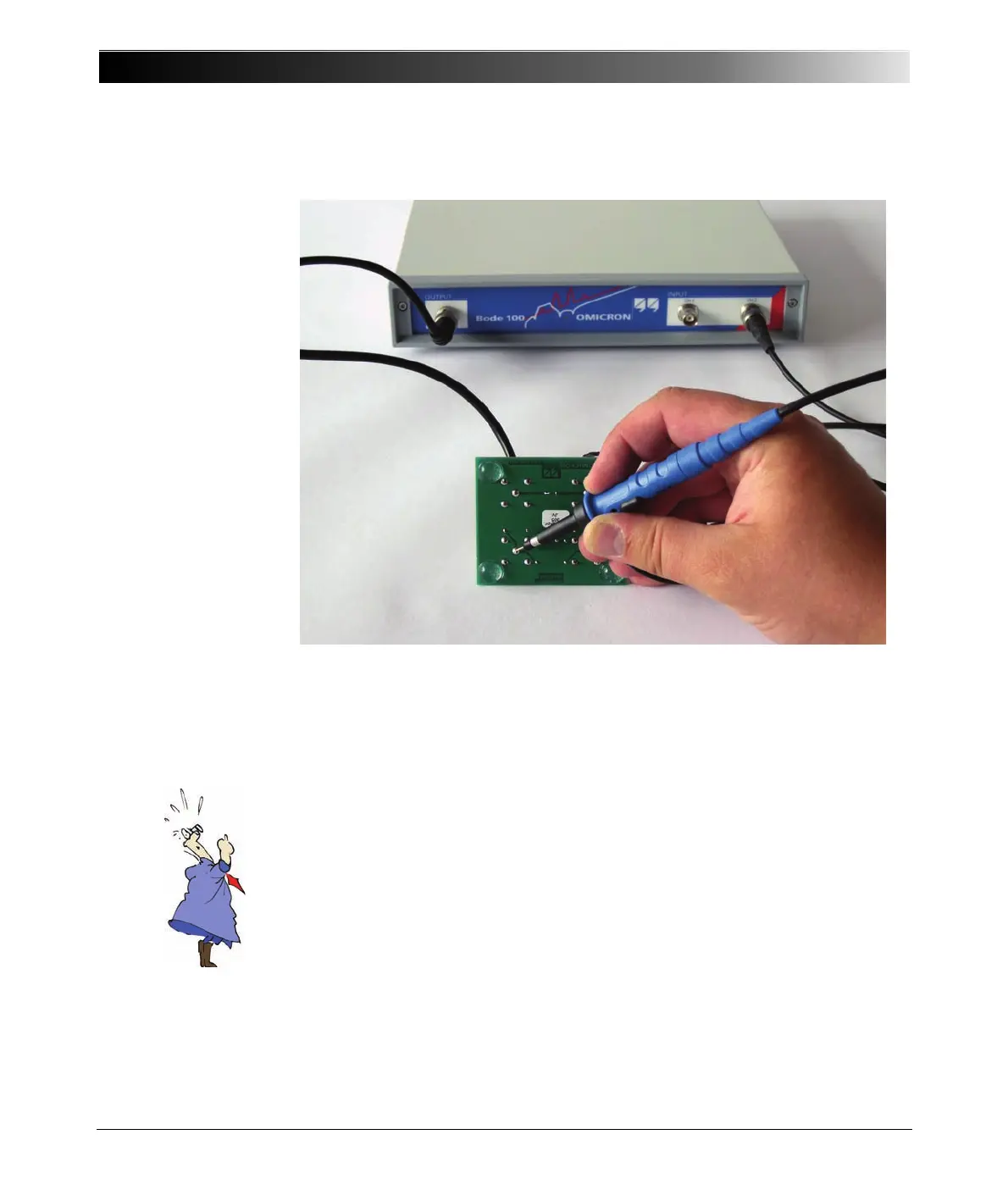

Figure 9-28:
Touching the DUT’s
input with the probe’s tip
Hint: Ensure that the probe’s tip is in contact with the DUT’s input all the time
until the calibration is finished.
7. After having calibrated the probe, start your measurement at any point of the
DUT using the probe.
Congratulation! You learned how to use the advanced functions of the
Bode 100.
How to:
• Use the advanced display functions like Zoom and Copy to Clipboard
• Use the advanced sweep options
• Use the level shaping functionality
• Use probes
The first time I used my
measurement probe to
zoom into an electrical
circuit will always
remain in my memory.
