7.5 Calibration in the Frequency Sweep Mode

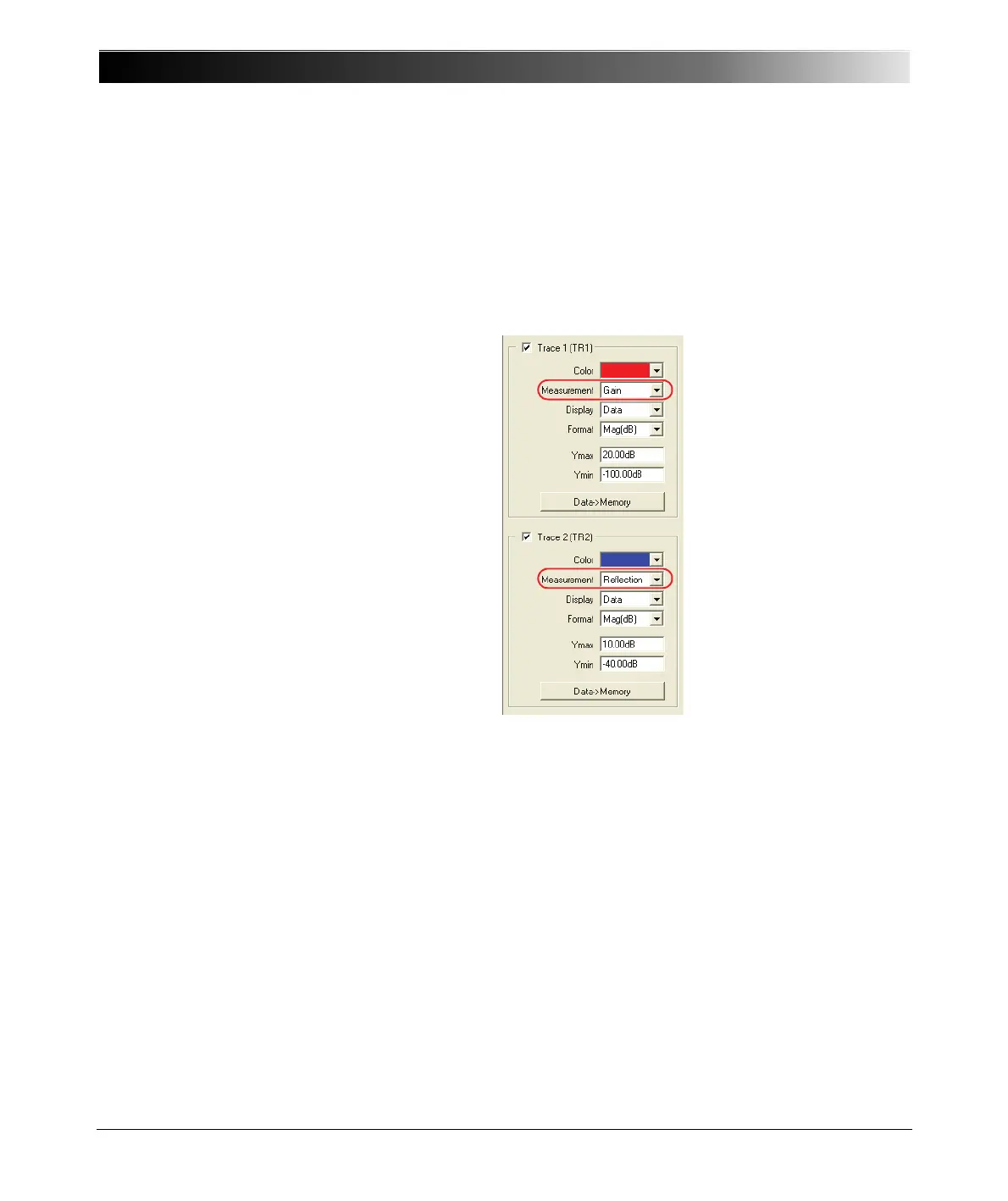

In the Frequency Sweep mode, you can perform Gain/Phase and
Impedance/Reflection measurements. Therefore both the Gain/Phase and the
Impedance calibration are available. The actually performed measurements
depend on the measurement type assigned to Trace 1 and Trace 2.
To perform the Gain/Phase calibration in the Frequency Sweep mode,
proceed as described in 3.3 "Example: Gain/Phase Measurement" on page 24.
For the Impedance calibration, see 5.2 "Impedance Calibration" on page 57.
Hints:
The calibration time for the User Calibration depends on the number of
measurement points and the selected receiver bandwidth.
The calibration time required for the Probe Calibration depends only on the
selected receiver bandwidth.
When working with the Bode 100 at frequencies below 10 Hz, the calibration can
be quite long.
