Bode 100 User Manual
22
3.2 Choosing the Reference Connection
Open the Configuration window by clicking Device Configuration on the
Configuration menu or the Device Configuration toolbar button (see
3.3 "Example: Gain/Phase Measurement" on page 24). By default, the
Device Configuration tab is selected.

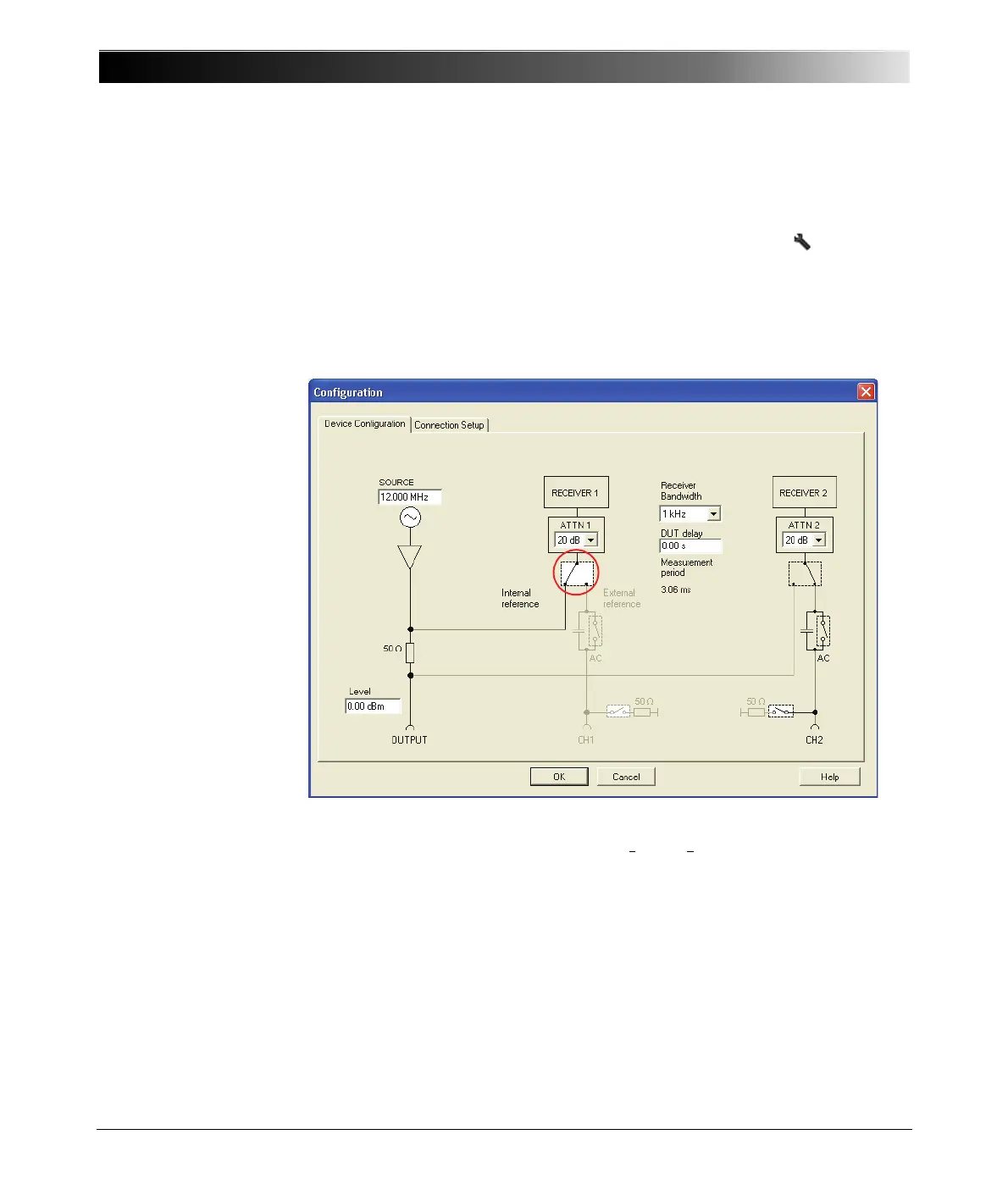

To connect the reference internally, set the marked configuration field as shown
below.
Note: The source signal is internally connected to the channel 1 input in front of
the 50 Ω source resistor (channel 1 voltage as defined in
3.1 "Basics" on page 20).
V
CH1
V
0
2⁄=
