17
Gain/Phase Mode
3 Gain/Phase Mode

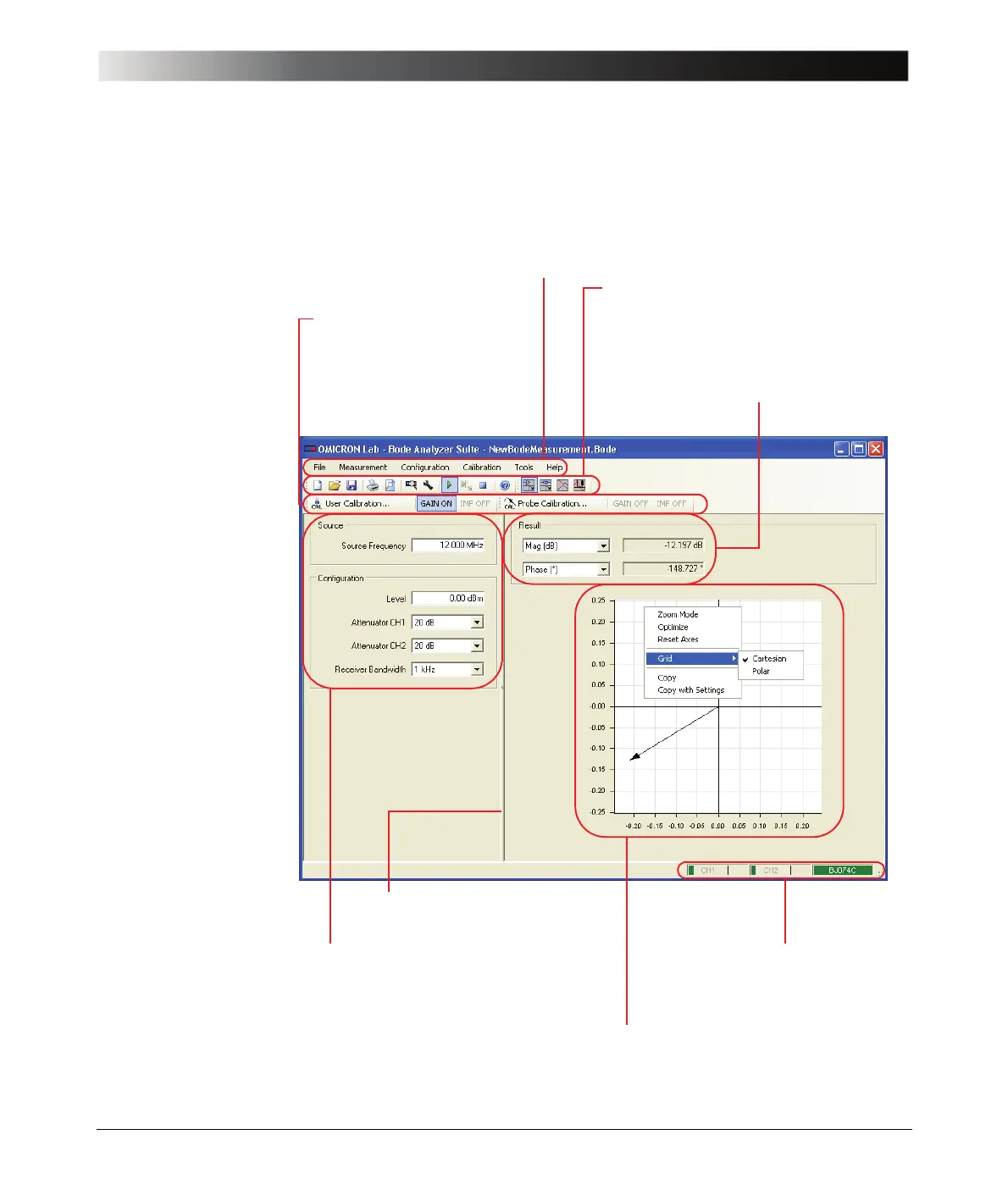

Figure 3-1:
Gain/Phase mode
window
Menu bar
Allows access to all Bode 100 functions. See Table 8-1: "Menus and commands" on page 96.
Toolbar
Contains shortcuts to the most important
Bode 100 functions.
See Figure 8-1: "Toolbar" on page 95.
Calibration toolbar
Choose the calibration mode.
Switch the calibration on and off.
See Figure 8-2: "Calibration toolbar"
on page 95.
Split bar
Drag the split bar to resize the panes.
Graphical display of measurement results
Use the shortcut menu to optimize the display.
See Figure 3-4: "Graphical display of measurement results" on page 19.
Overload and connection indicators
See Figure 3-5: "Overload and
connection indicators" on page 19.
Configuration and measurement setup
See Figure 3-2: "Configuration and
measurement setup" on page 18.
Results
Select the result format and get result values.
See Figure 3-3: "Gain/Phase mode results" on
page 18.
