Bode 100 User Manual
18

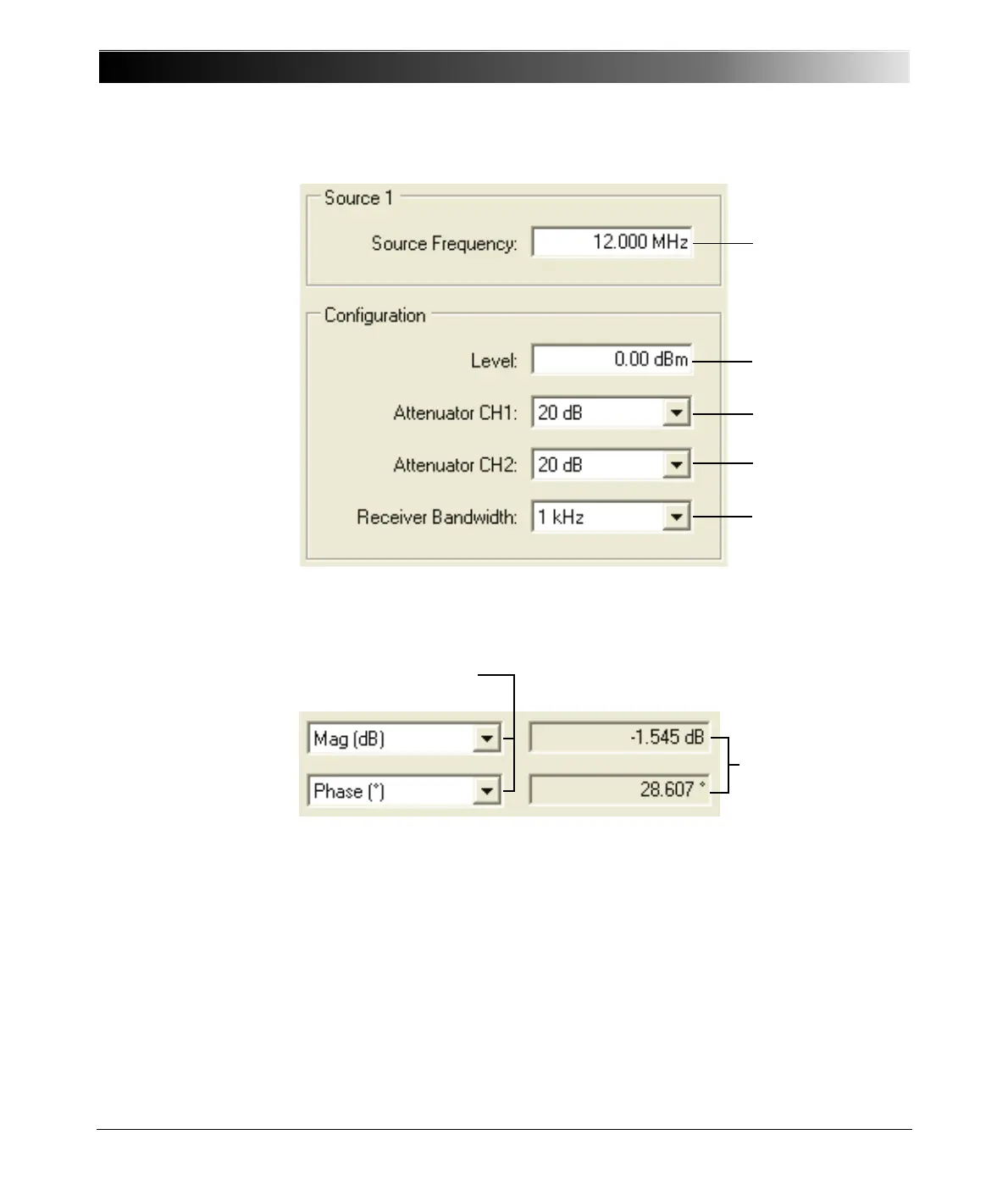

Figure 3-2:
Configuration and
measurement setup
Hint: A higher receiver bandwidth allows faster measurements, a lower receiver
bandwidth increases the measurement accuracy.
Figure 3-3:
Gain/Phase mode
results
Set the output source
generator frequency.
Set the output source
generator level.
Select the channel 1
input attenuation.
Select the channel 2
input attenuation.
Select the receiver
bandwidth.
Select the output format of
measurement results.
Display of measurement
results in the selected
format.
