Omicron Bode 100 User Manual

89
Calibrating the Bode 100

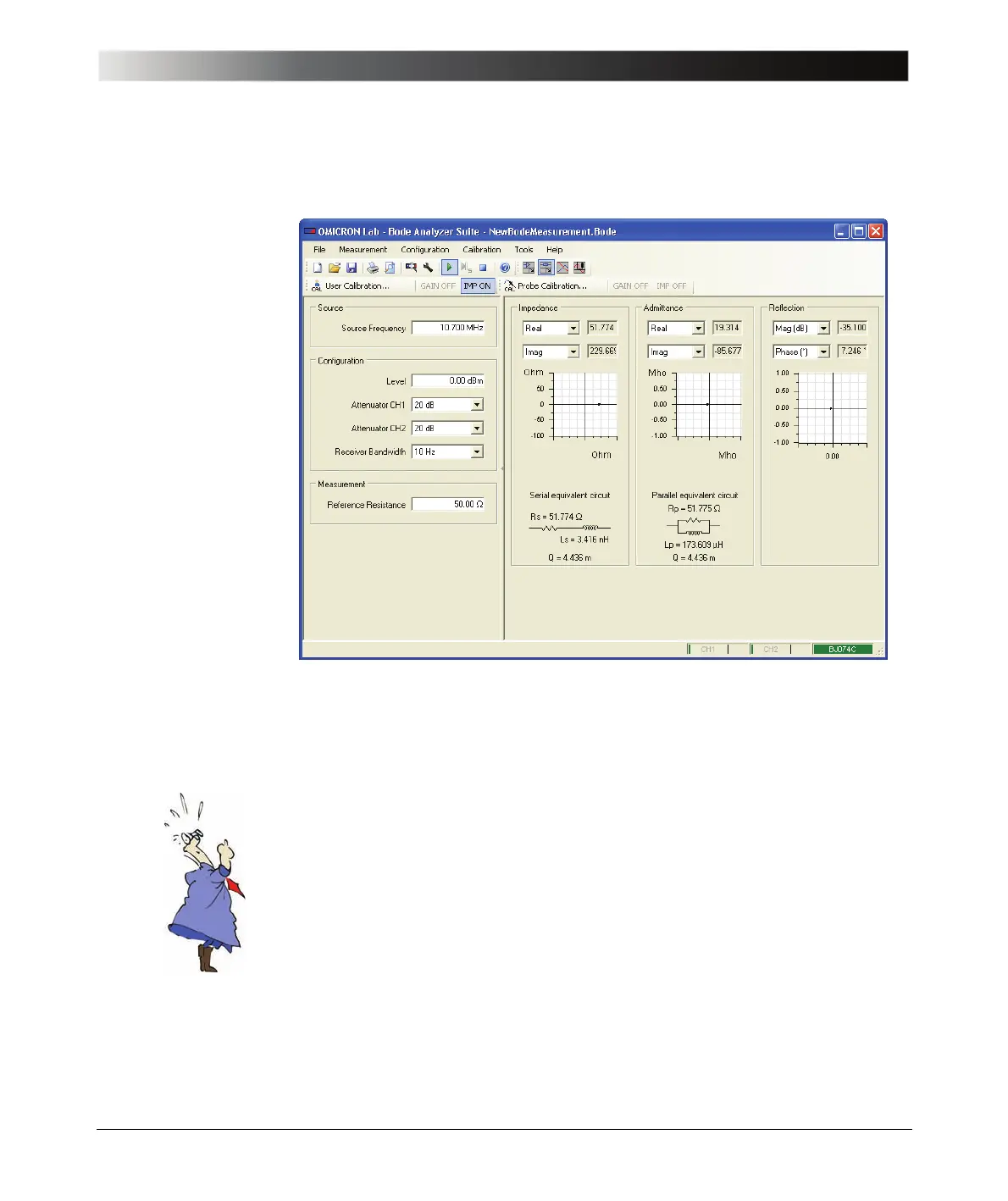

17.Read the results.
Answers:
• The real part of the impedance is 51.8 Ω.
• The magnitude of the reflection coefficient is –35.1 dB.
Your results may differ because every IF filter and measurement setup is slightly
different.
Congratulation! You learned the calibration of the Bode 100 in the
Impedance/Reflection mode.
How to:
• Eliminate the effect of the cable
• Connect the cable in the open, short and load condition
• Connect the DUT
I had my first cable
problem when I was
born but luckily the
midwife solved that
problem.
