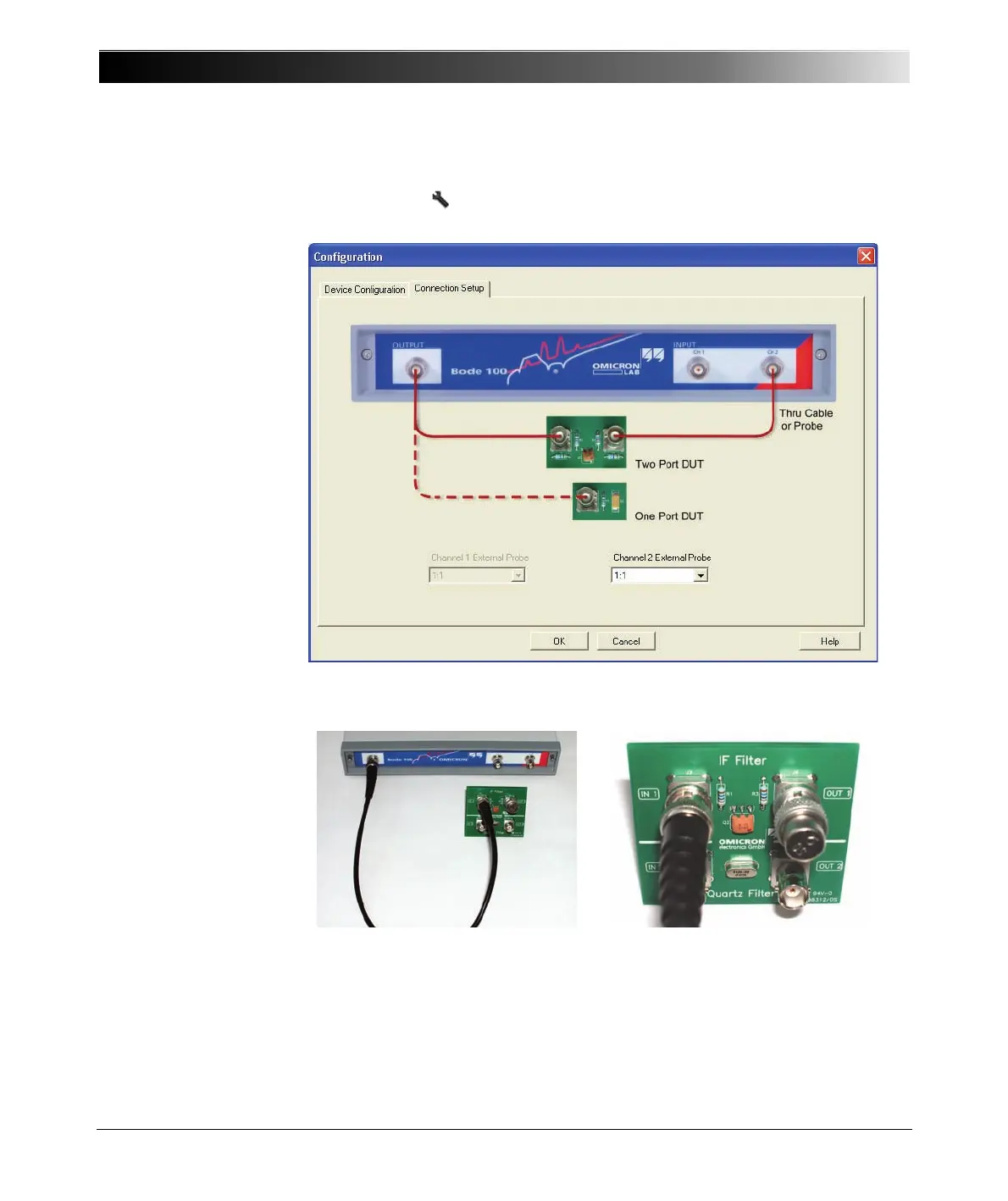

15.Open the Configuration window by clicking the Device Configuration
toolbar button to see how to connect your DUT to the Bode 100.
16.Connect the test object.
Note: The IF filter is a two-port device. To ensure that the impedance of the
filter is measured correctly, its output must be terminated. For measuring a
one-port device like a capacitor or an inductor, no termination resistor is
needed.
