Depending on the regional settings of your computer the elements of the serial
and parallel equivalent circuits are displayed according to the IEC (International
Electronic Commission) or ANSI (American National Standards Institute)
standards as shown below.

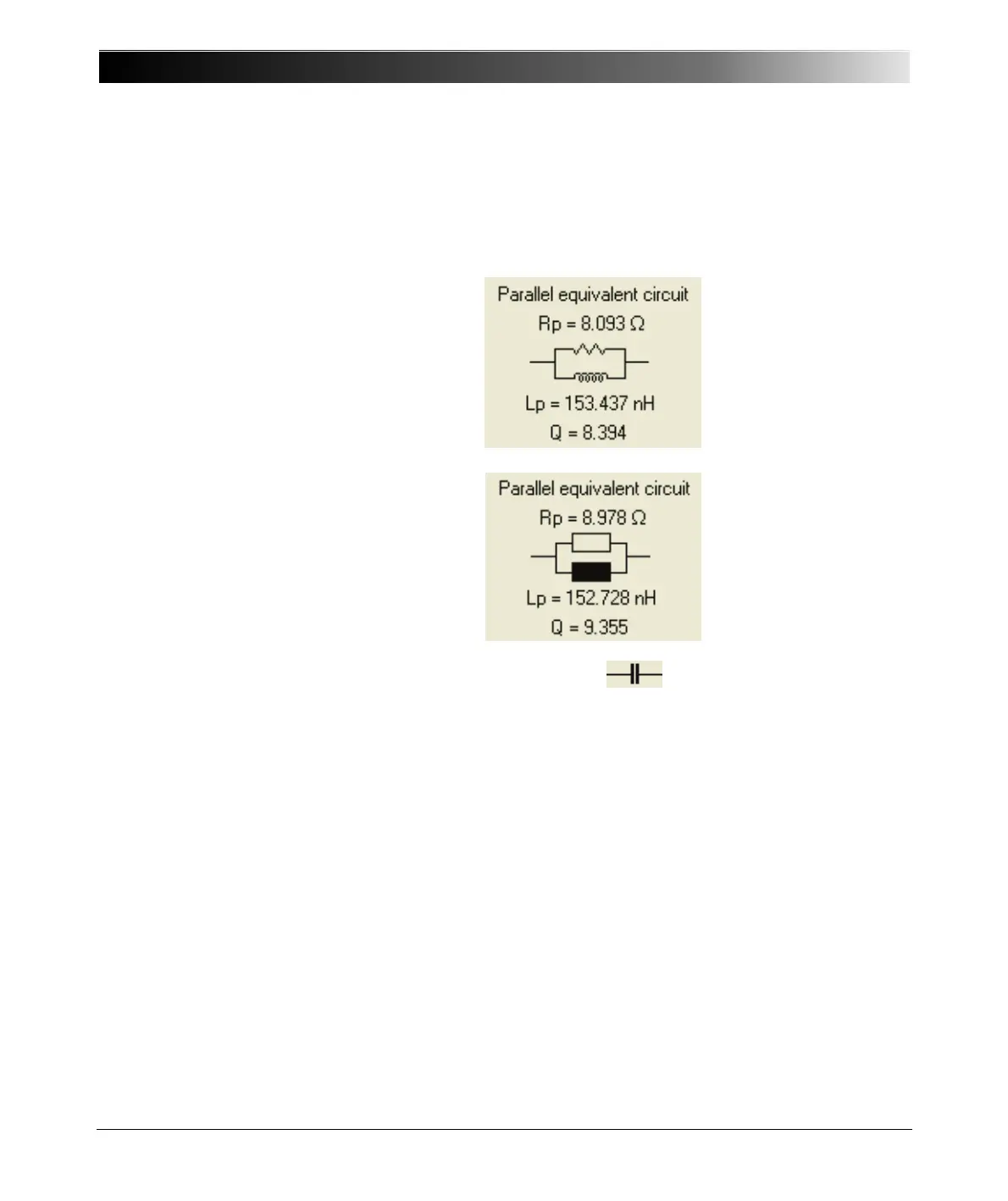

Figure 4-3:
Resistor and inductor
symbols according to
ANSI
Figure 4-4:
Resistor and inductor
symbols according to
IEC
Note: Capacitors have the same symbol in both standards.
