Bode 100 User Manual
52
Hint: In addition to resizing the window, you can click the split bar to hide the
left and right panes to increase the size of the diagrams.

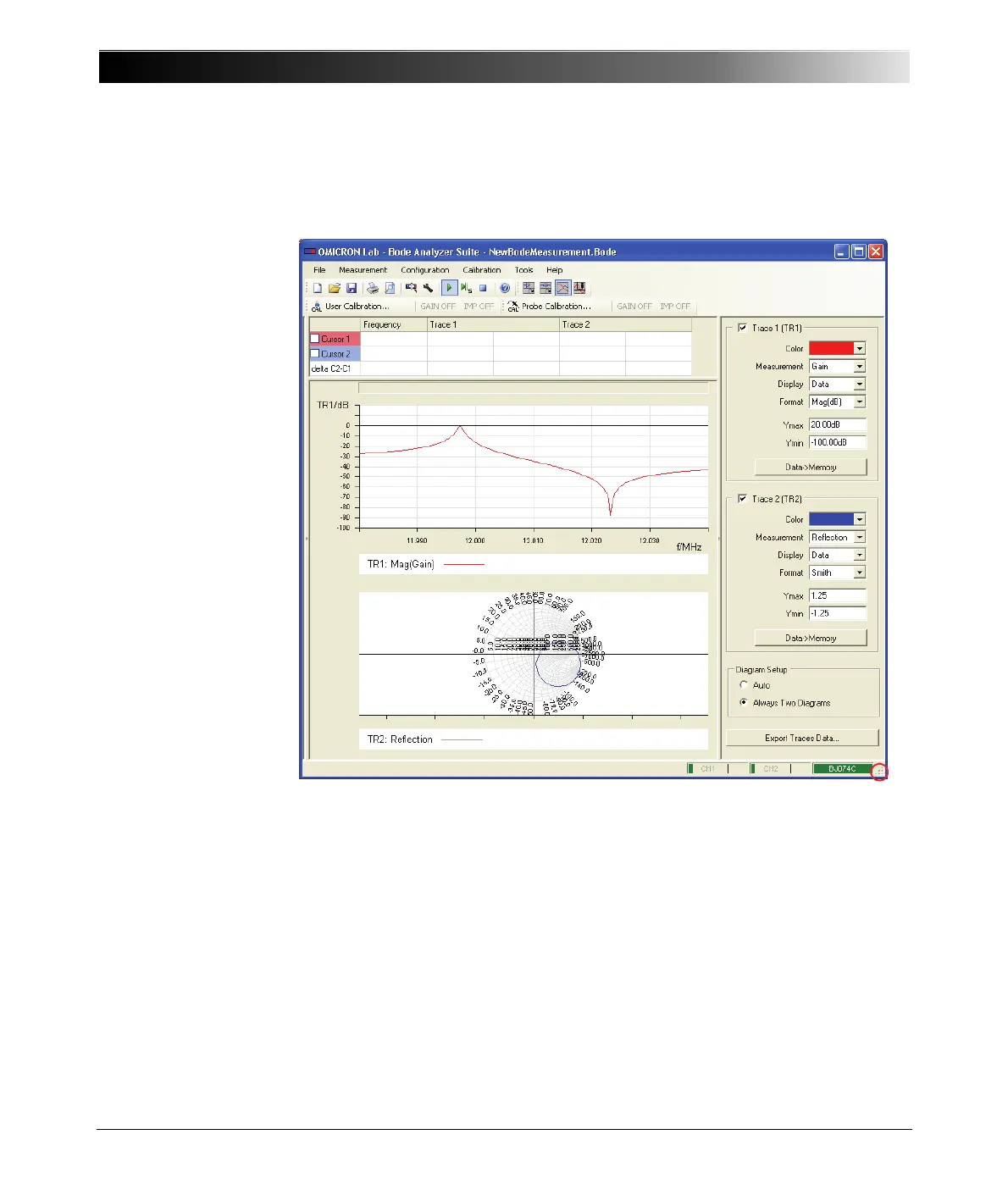

In the upper graph you see the gain of the quartz filter. You can use the
cursors to measure the series and parallel resonance frequencies.
12.Select the Cursor 1 and Cursor 2 check boxes to activate the cursors.
