Bode 100 User Manual
66

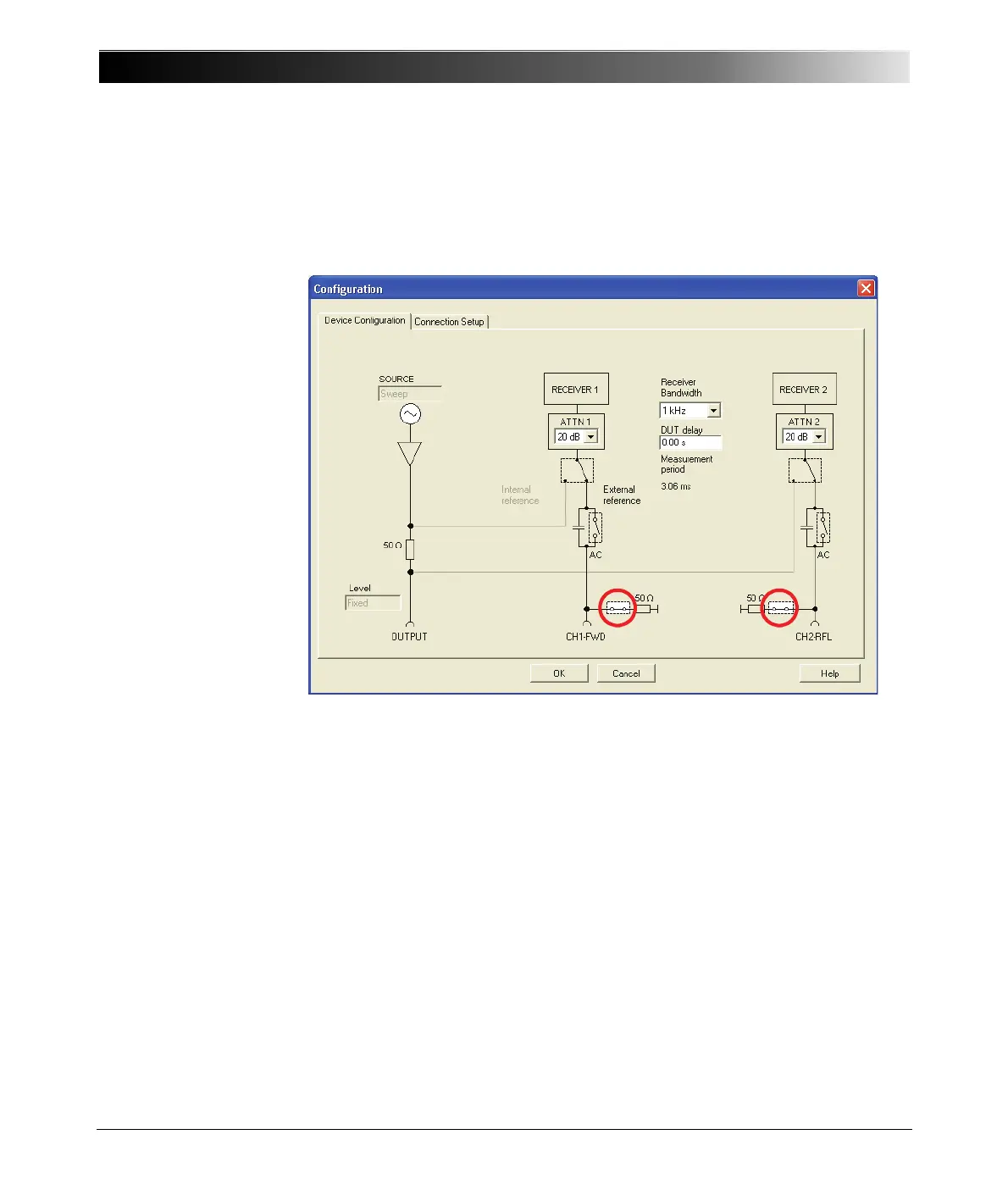

4. Set:
•CH1: 50Ω ON
•CH2: 50Ω ON
Hint: To match the impedance of the directional coupler, the input
resistances of the channel 1 and channel 2 are set to 50 Ω.
