Bode 100 User Manual
70
In this case, select the User Calibration or the Probe Calibration, and then
proceed as described in 7.6 "Calibration in the Frequency Sweep
(External Coupler) Mode" on page 91.

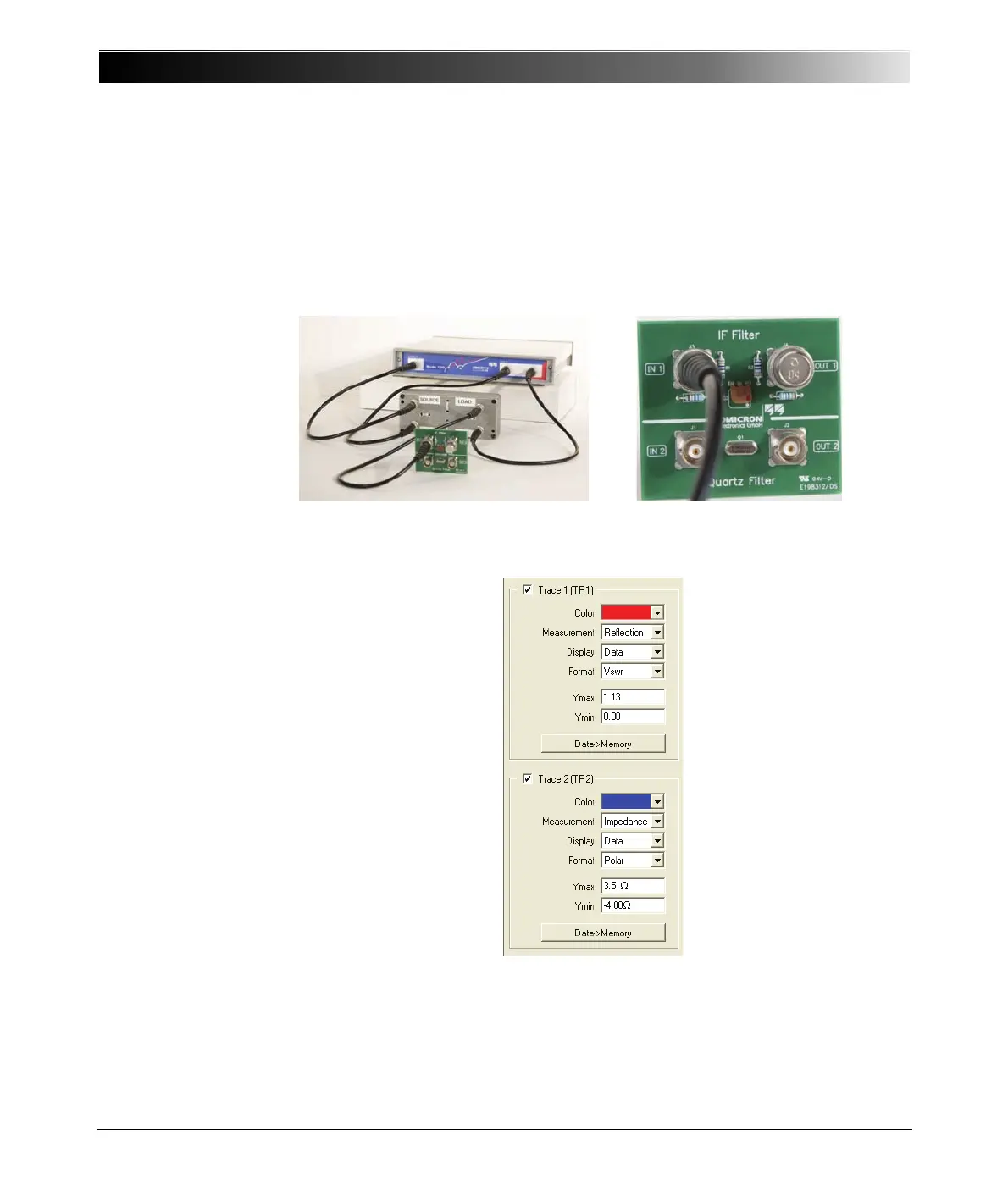

11.Connect the IF Filter to the Bode 100 and the 50 Ω load to the output of the
IF filter as shown below.
12.Activate both traces and set the parameters as shown below.
